General Data

General Data





Engine Type

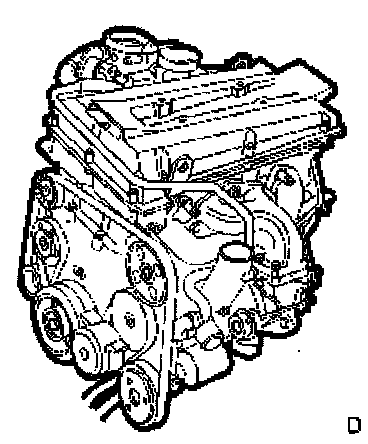

4-cylinder, 4-stroke engine with 4 valves per cylinder, twin overhead camshafts and 2 balancer shafts. Transversely mounted.

Cylinder Bore
B204 90 mm
B235R 90 mm

Stroke
B204 78 mm
B235R 90 mm

Cylinder Capacity
B204 1985 cc
B235R 2290 cc

Firing Order
B204 1-3-4-2
B235R 1-3-4-2

Weight
B204 166 kg (366 lbs.)
B235R 158 kg (348 lbs.)
