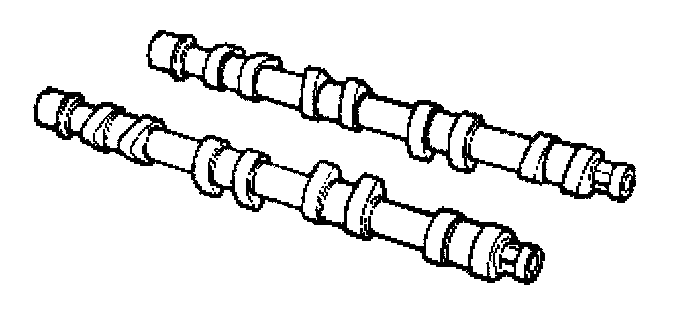

Camshafts

Camshafts





General Data B204/B235

Number of Bearings 5
Bearing Diameter 28.922-28.935 mm
End Float 0.08-0.35 mm

Lifting Height B204/B235

Inlet Valve 8.65 mm
Exhaust Valve 8.65 mm

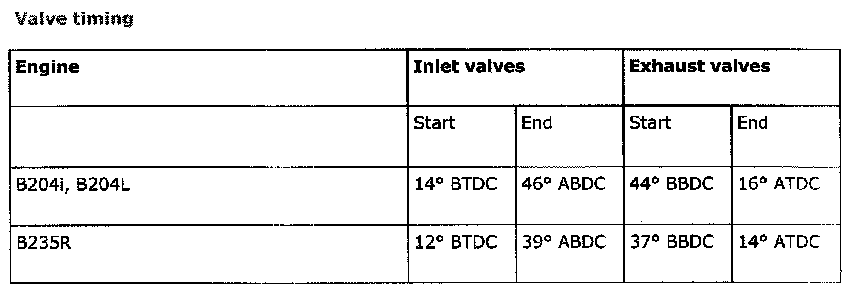

Valve Timing
