Home >> Saab >> 1999 >> 9-3 Convertible (9400) L4-2.0L Turbo (B204) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Radiator Cooling Fan >> Radiator Cooling Fan Motor >> Description and Operation >> System Overview, Radiator Fan System

System Overview, Radiator Fan System

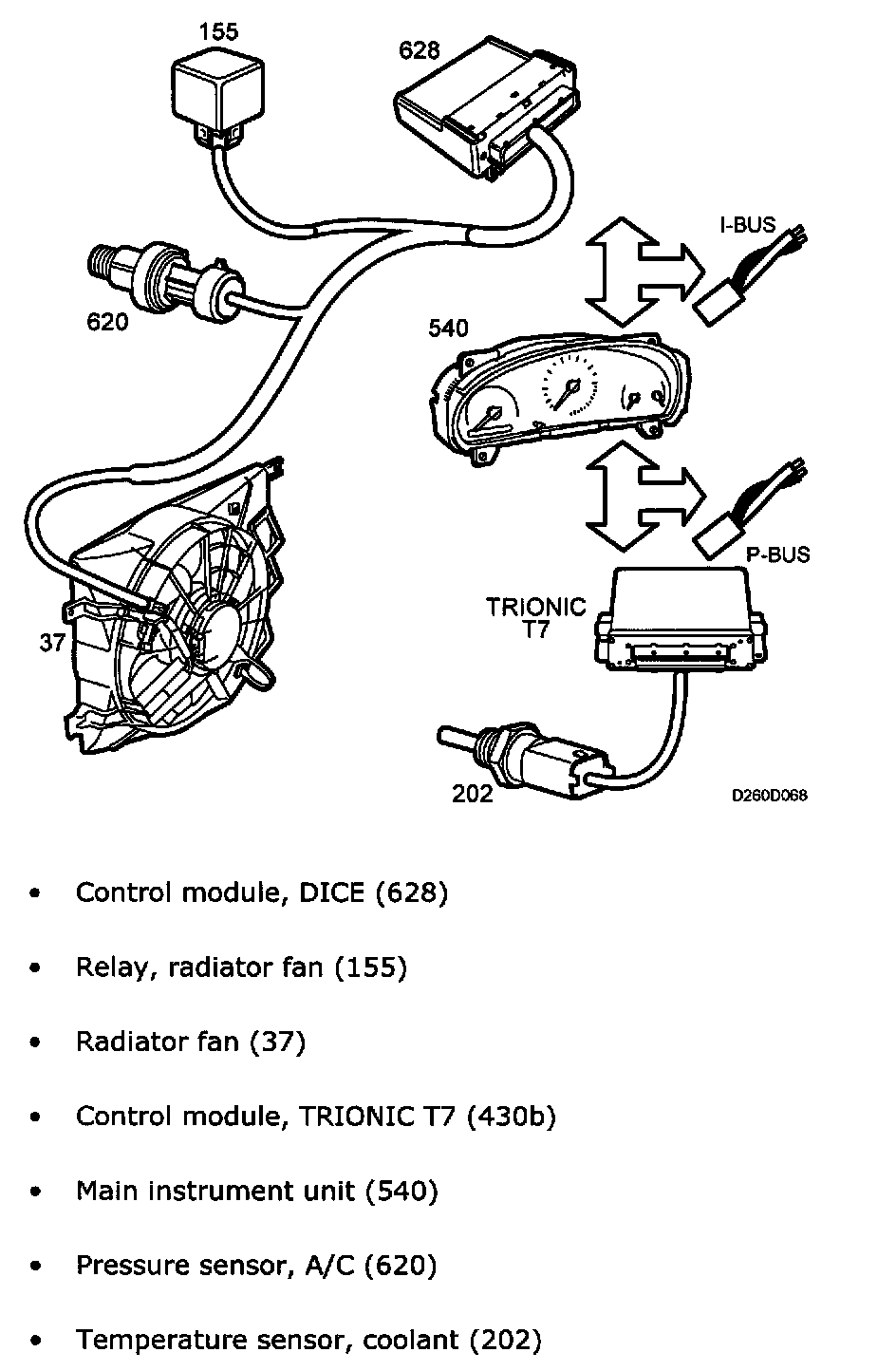

System Overview, Radiator Fan System 1-Speed:

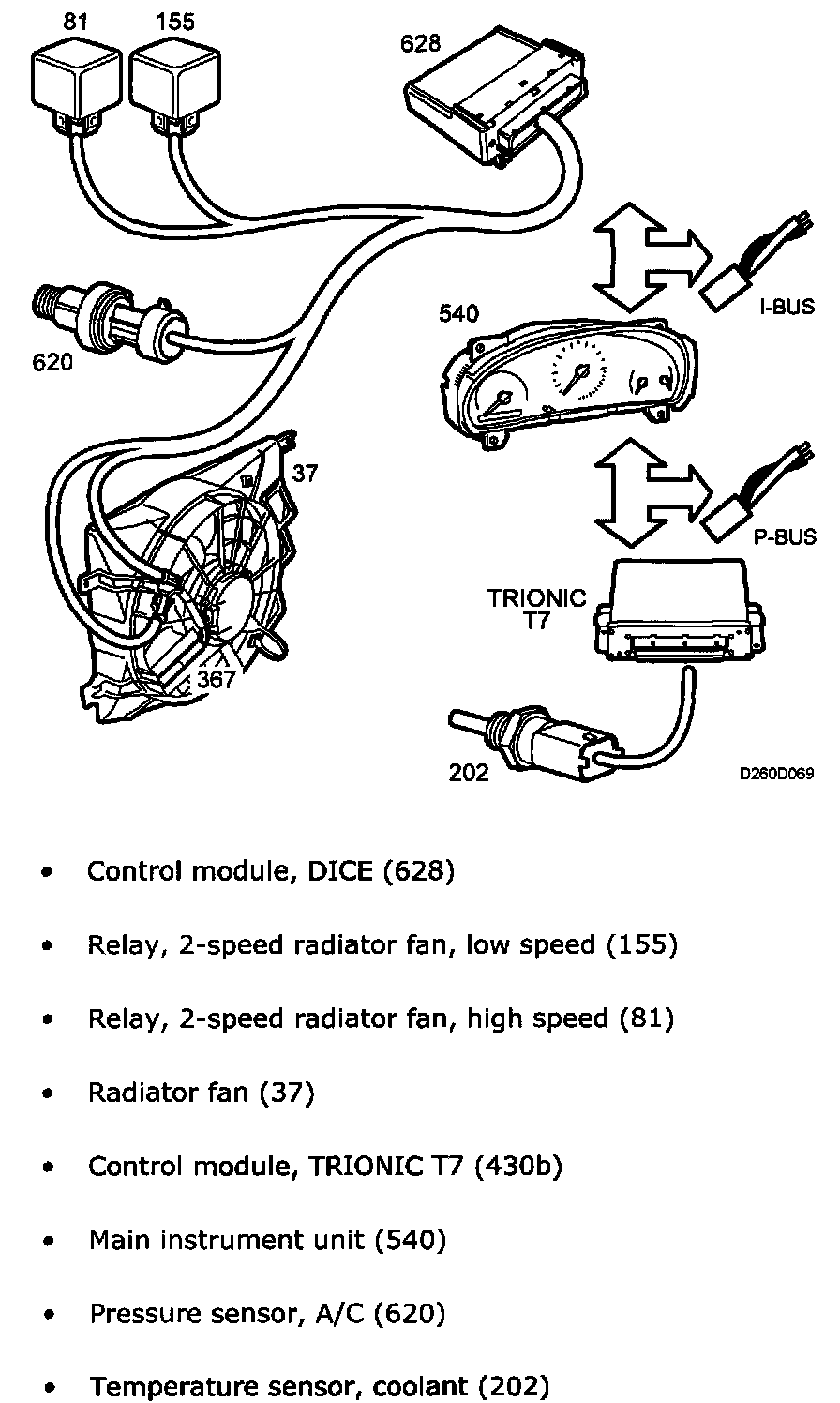

System Overview, Radiator Fan System 2-Speed:
