Technical Data

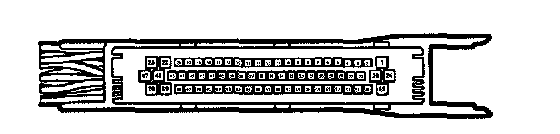

Check values, control module connections, DICE





Scope
Values and directions for measuring signals and levels in DICE can be found on the following pages.

Keep in mind

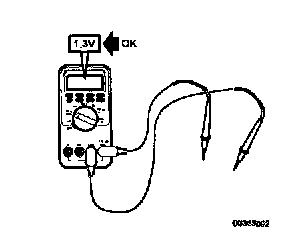

^ Note the measuring conditions, use common sense when considering the measurement results.
^ The values given apply with the ignition key in the ON position unless otherwise indicated.
^ First check that the control module is supplied with power and that it is grounded.
^ Then check all the sensor inputs and signals from other systems.

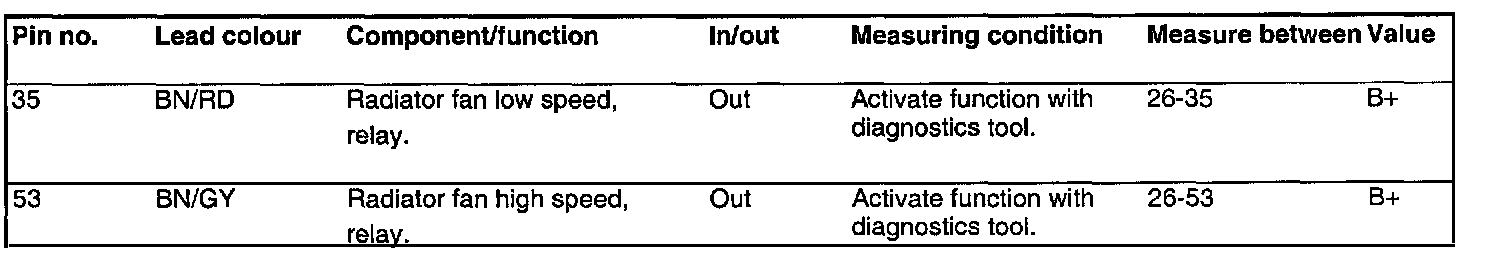

^ Finally, check the control module outputs. Remember that the measured values will not indicate if the switch device is functional.
^ If any measured value is incorrect, use the wiring diagram to diagnose which leads, connections or components that should be checked further.
^ The measured values %(+) and ms(+) show the pulse ratio and pulse duration of the signal. A test instrument with pulse ratio and pulse duration measuring capacity must be used. The sign (+) indicates positive trigger pulse, TRIG+.





> = greater than
< = less than
= = approximately equal to
~ = alternating current
(LP: LOGIC PROBE P = select pulse; p = visible pulses)








For other measured values and control module connections.
