Crimp Schedule (J1 - J180)

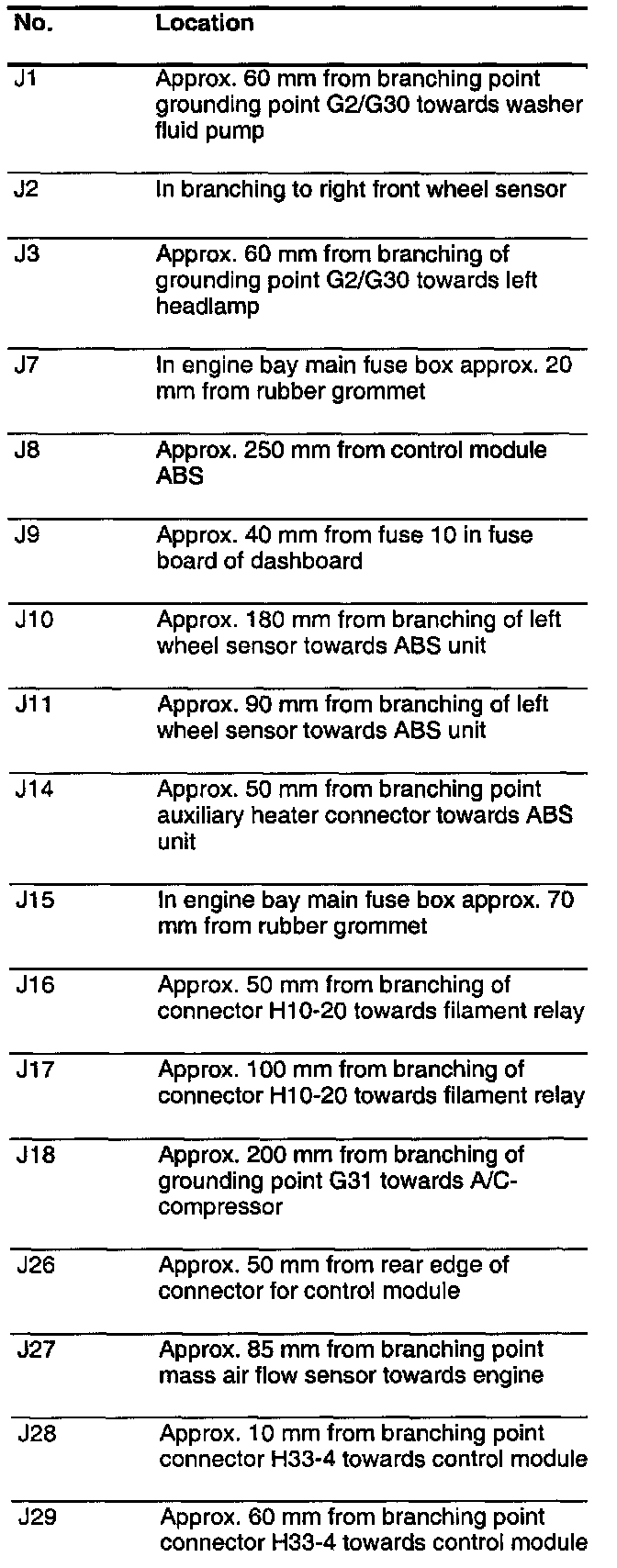

J1 - J29:

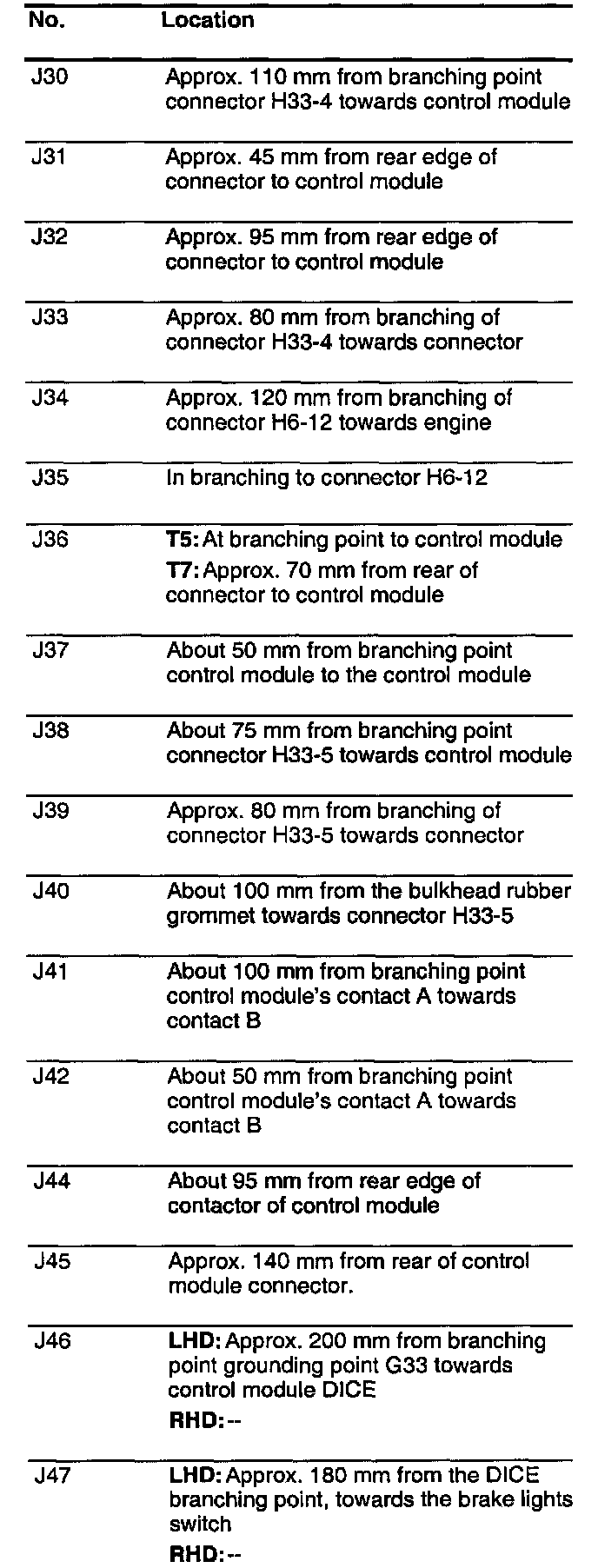

J30 - J47:

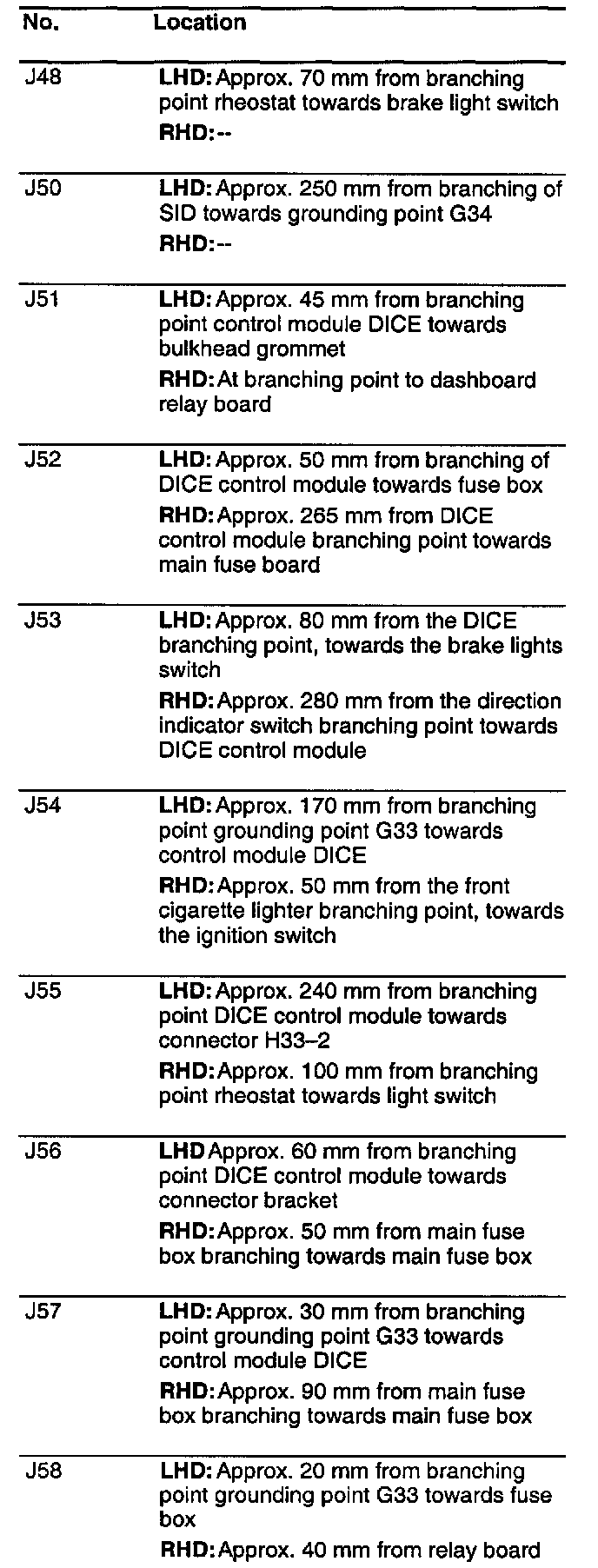

J46 - J58:

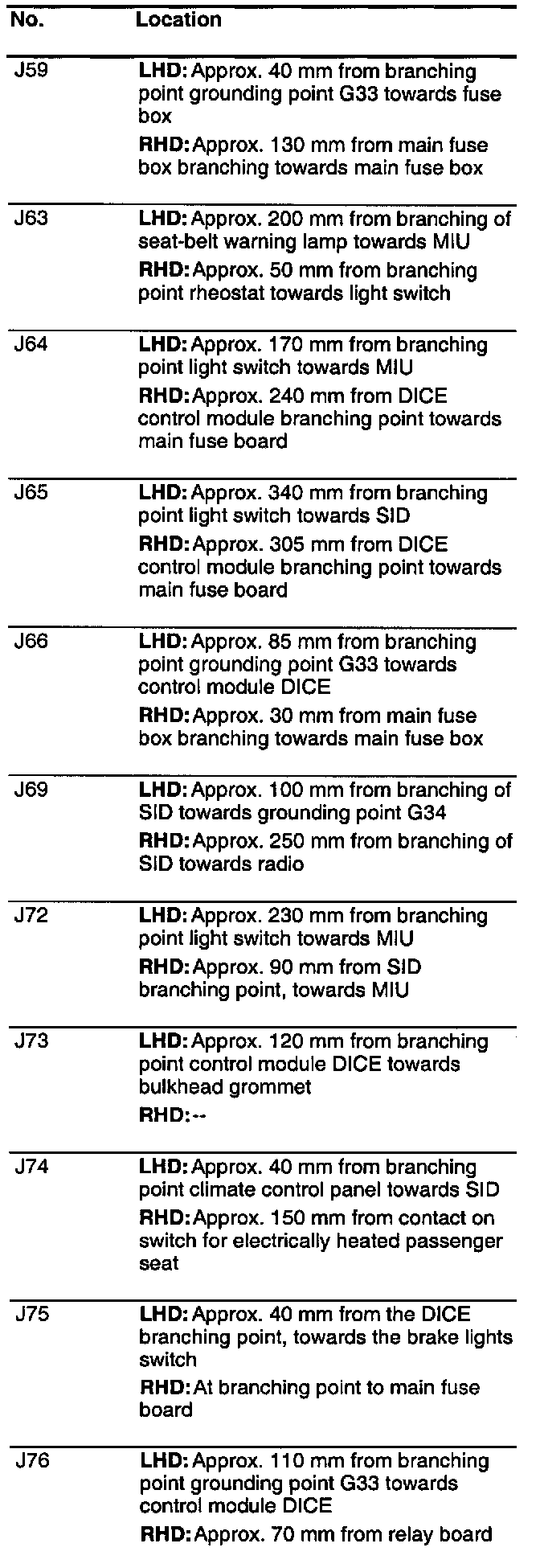

J59 - J76:

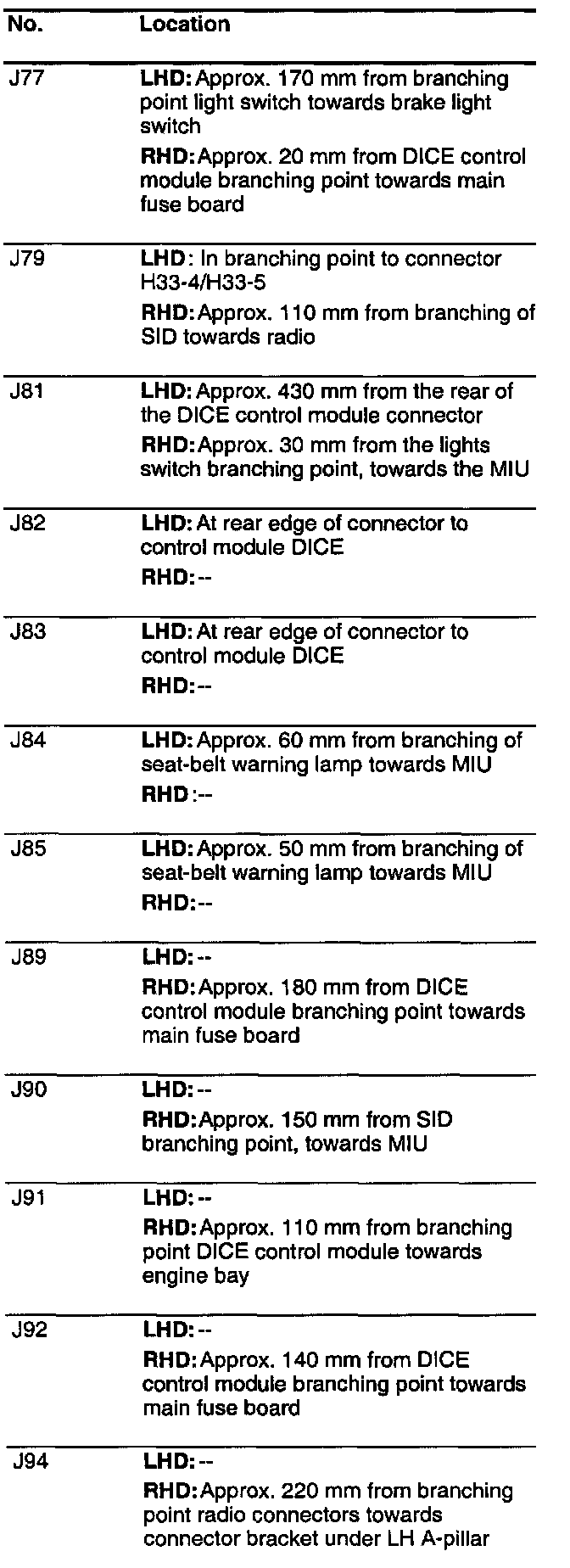

J77 - J94:

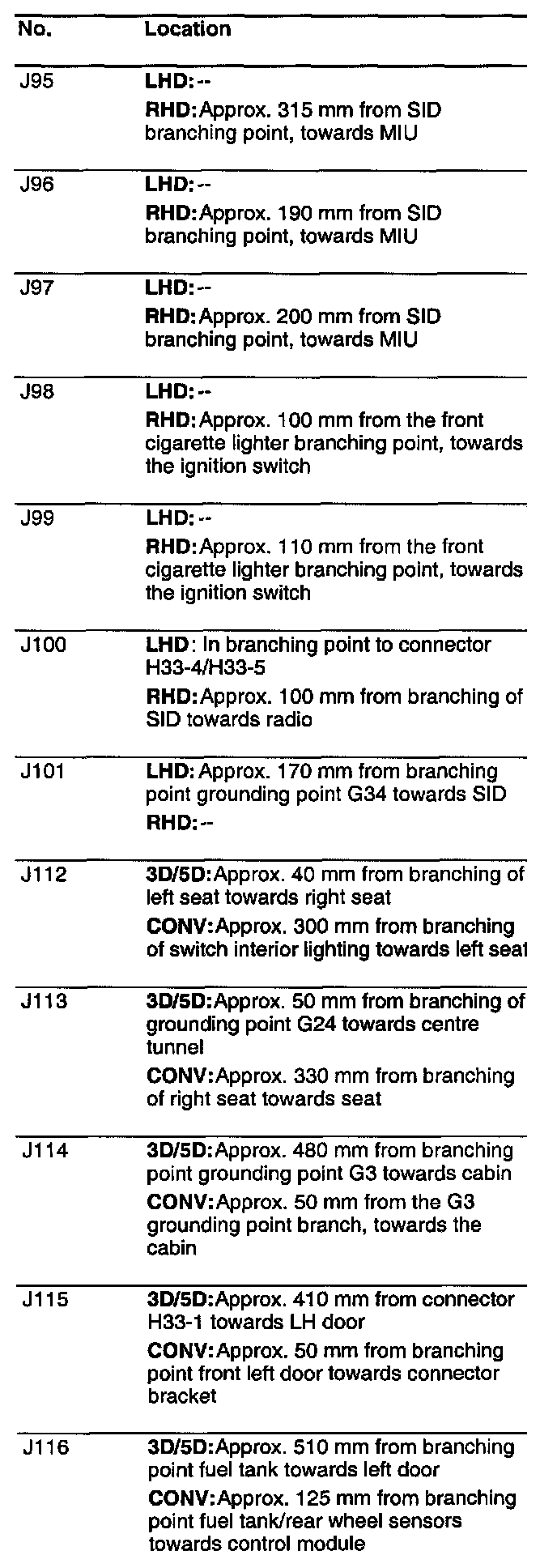

J95 - J116:

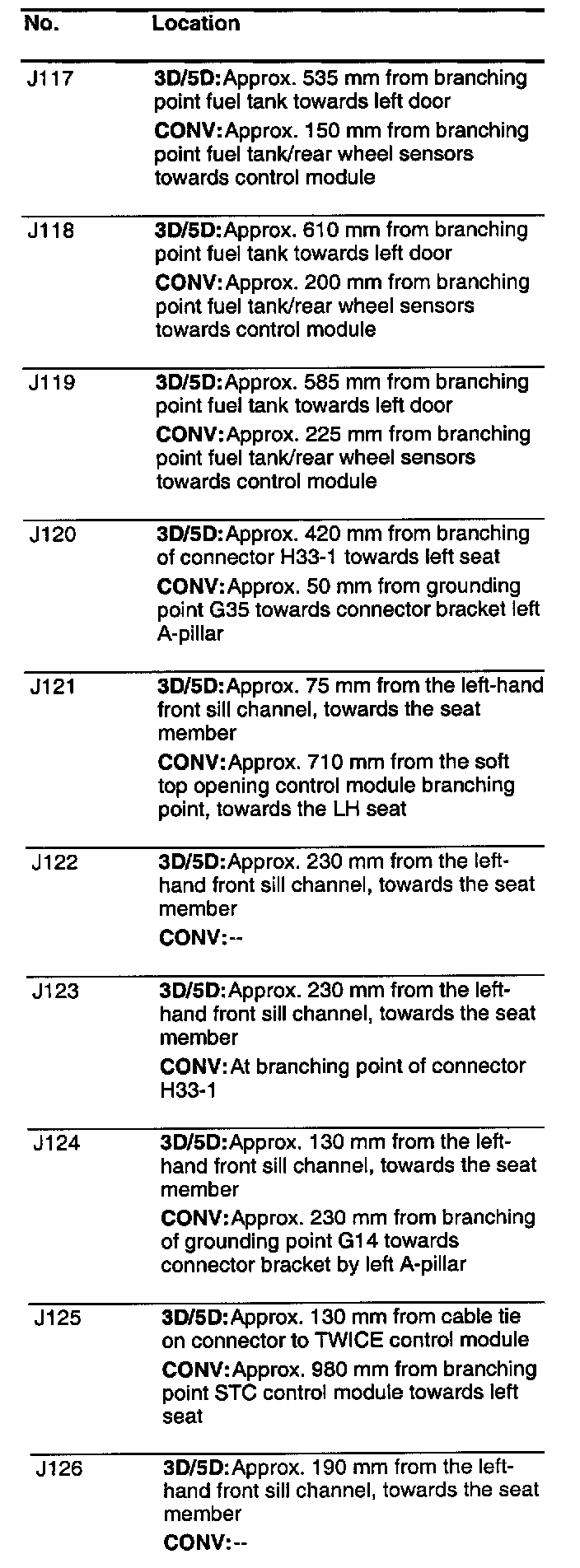

J117 - J126:

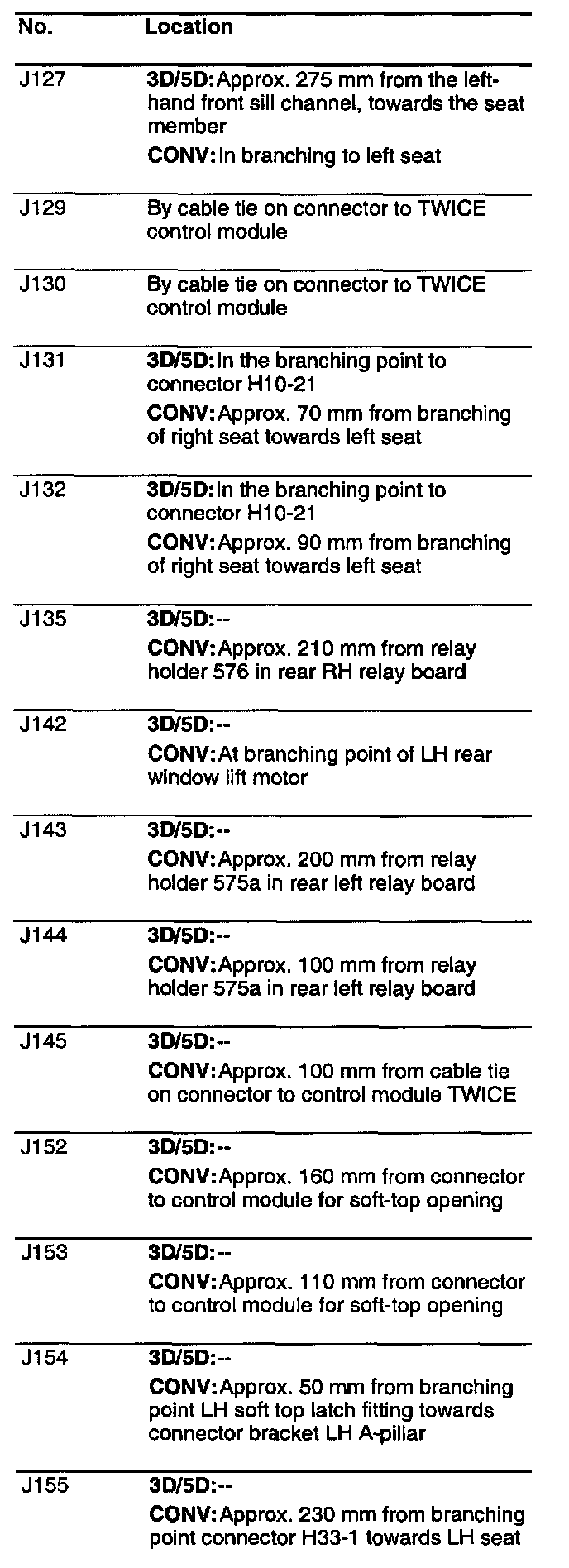

J127 - J155:

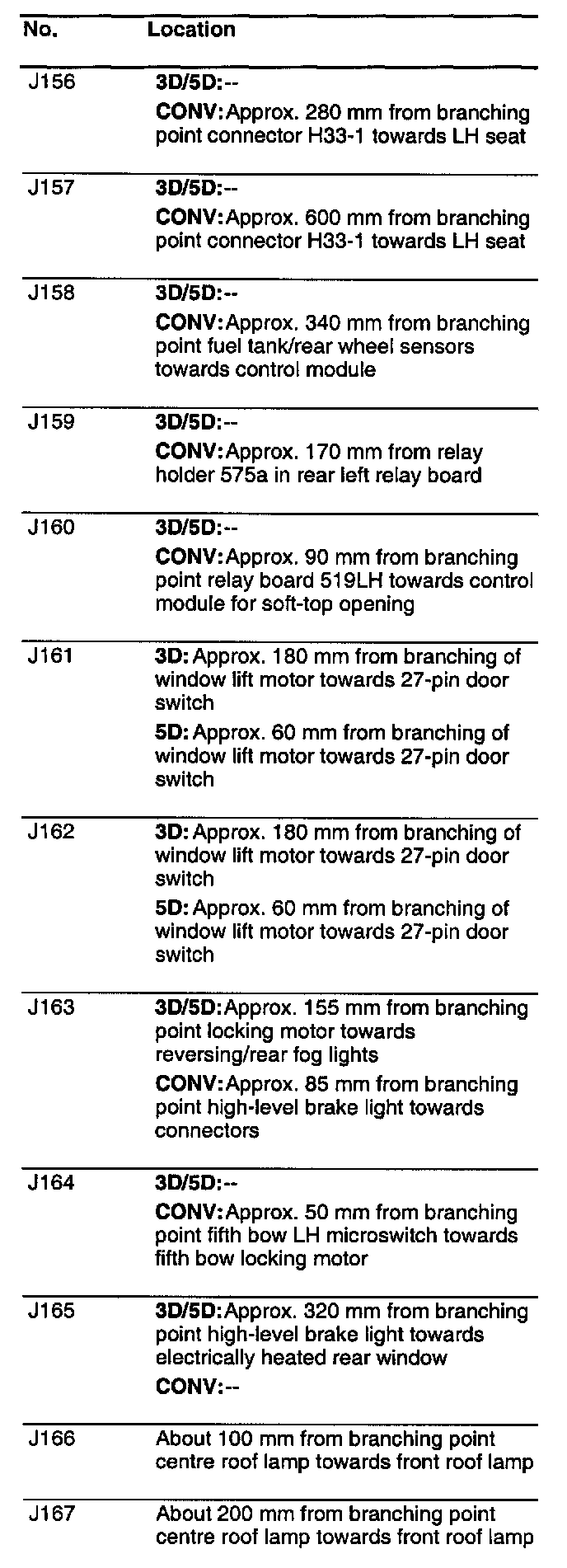

J156 - J167:





J168 - J180:





For crimp circuit schematics, Electrical Diagrams
