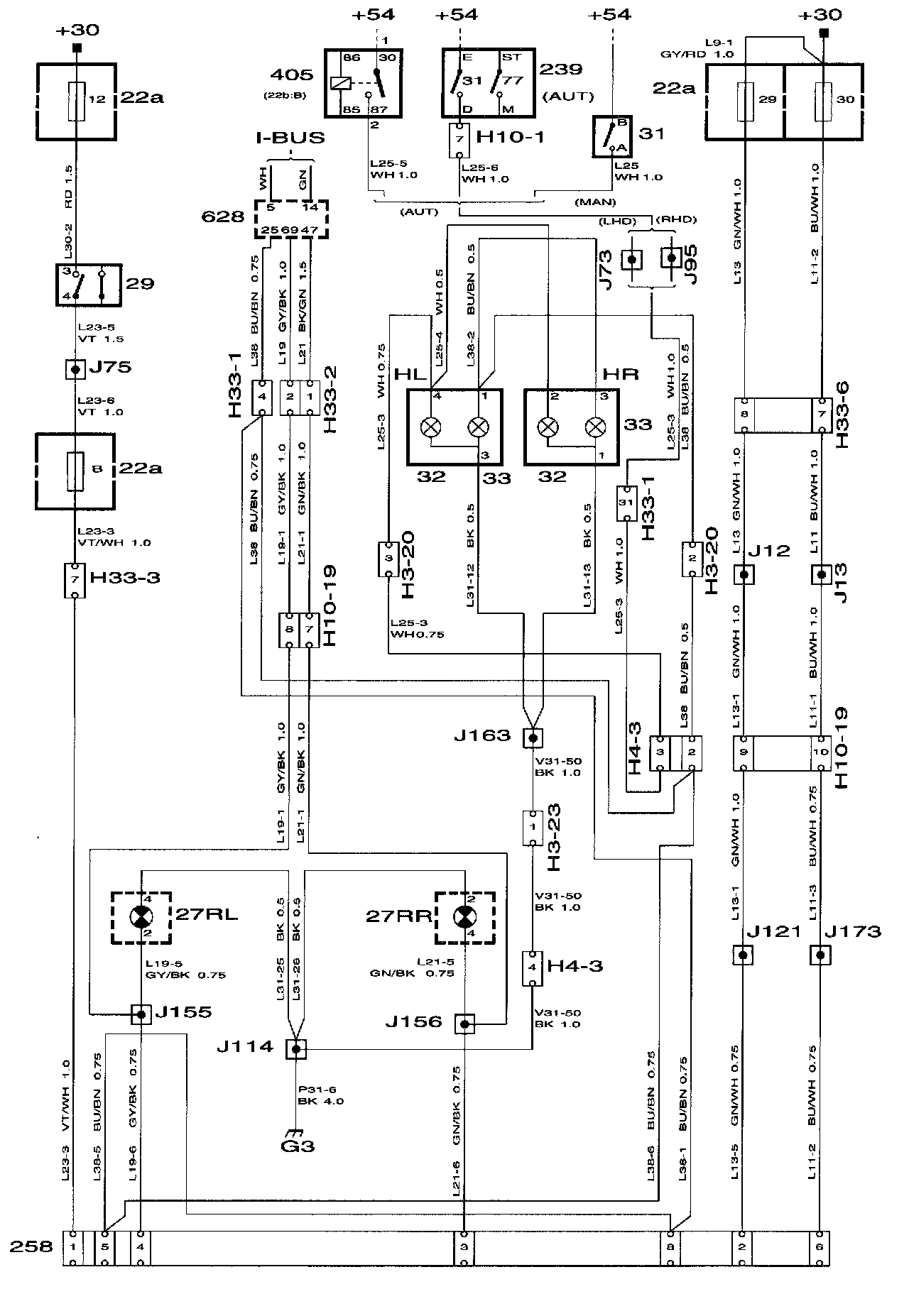

Trailer Connector

Trailer Connector, Convertible

Components
No. Name and location
22a Main fuse board, dashboard; on side of dashboard by driver's door
27RL Lamp, rear direction indicators, left; in left-hand rear light cluster
27RR Lamp, rear direction indicators, right; in right-hand rear light cluster
29 Switch, brake light; on pedal bracket
31 Switch, reversing lights
Manual: on gearbox
Automatic: in transmission range switch 239
32HL Lamp, reversing light, left; in rear light fitting on boot lid/tailgate
32HR Lamp, reversing light, right; in rear light fitting on boot lid/tailgate
33HL Lamp, rear fog light, left; in rear light fitting on boot lid/tailgate
33HR Lamp, rear fog light, right; in rear light fitting on boot lid/tailgate
239 Transmission range switch 2, automatic (31.77); on automatic gearbox in engine bay
258 Connection, trailer connector; in luggage compartment below left-hand rear light cluster
405 Relay, reversing lights; on main relay board in dashboard
628 Control module, DICE
LHD: above main relay board in dashboard RHD: behind main relay board in dashboard

3-pin connectors
No. Location
H3-20 Black connector on left-hand edge of luggage compartment
H3-23 Natural-colored connector on left-hand edge of luggage compartment

4-pin connectors
No. Location
H4-3 Black connector in luggage compartment behind left-hand wheel housing

10-pin connectors
No. Location
H10-1 Black connector on bracket behind the battery
H10-19 On bracket below left-hand A-pillar

33-pin connector
No. Location
H33-1 Grey connector on bracket below left-hand A-pillar
H33-2 Black connector on bracket below left-hand A-pillar
H33-3 Blue connector on bracket below left-hand A-pillar
H33-6 Brown connector on bracket below left-hand A-pillar

Crimped connectors
No. Location
J12 Approx 240 mm connector from H10-19 towards bulkhead
J13 Approx 190 mm connector from H10-19 towards bulkhead
J73 LHD: Approx 120 mm from control module DICE branching point towards bulkhead grommet
RHD: --
J75 LHD: Approx 370 mm from rear edge of connector to DICE control module
RHD: In branching point to main fuse board
J95 LHD:--
RHD: Approx 315 mm from SID branching point towards MIU
J114 3D/5D:Approx 80 mm from grounding point G3 branching point towards compartment
CONV: Approx 50 mm from right-hand rear light cluster branching point towards compartment
J121 3D/5D:Approx 310 mm from connector H33-1 towards seat member
CONV: Approx 710 mm from control module branching point towards left-hand seat
J163 3D/5D: Approx 155 mm from lock motor branching point towards reverse/rear fog light
CONV: Approx 85 mm from high-level brake light branching point towards connectors

Grounding points
No. Location
G3 Grounding point luggage compartment; on the floor under the left-hand rear light cluster
