Electrically Adjustable Passenger Seat (LHD)

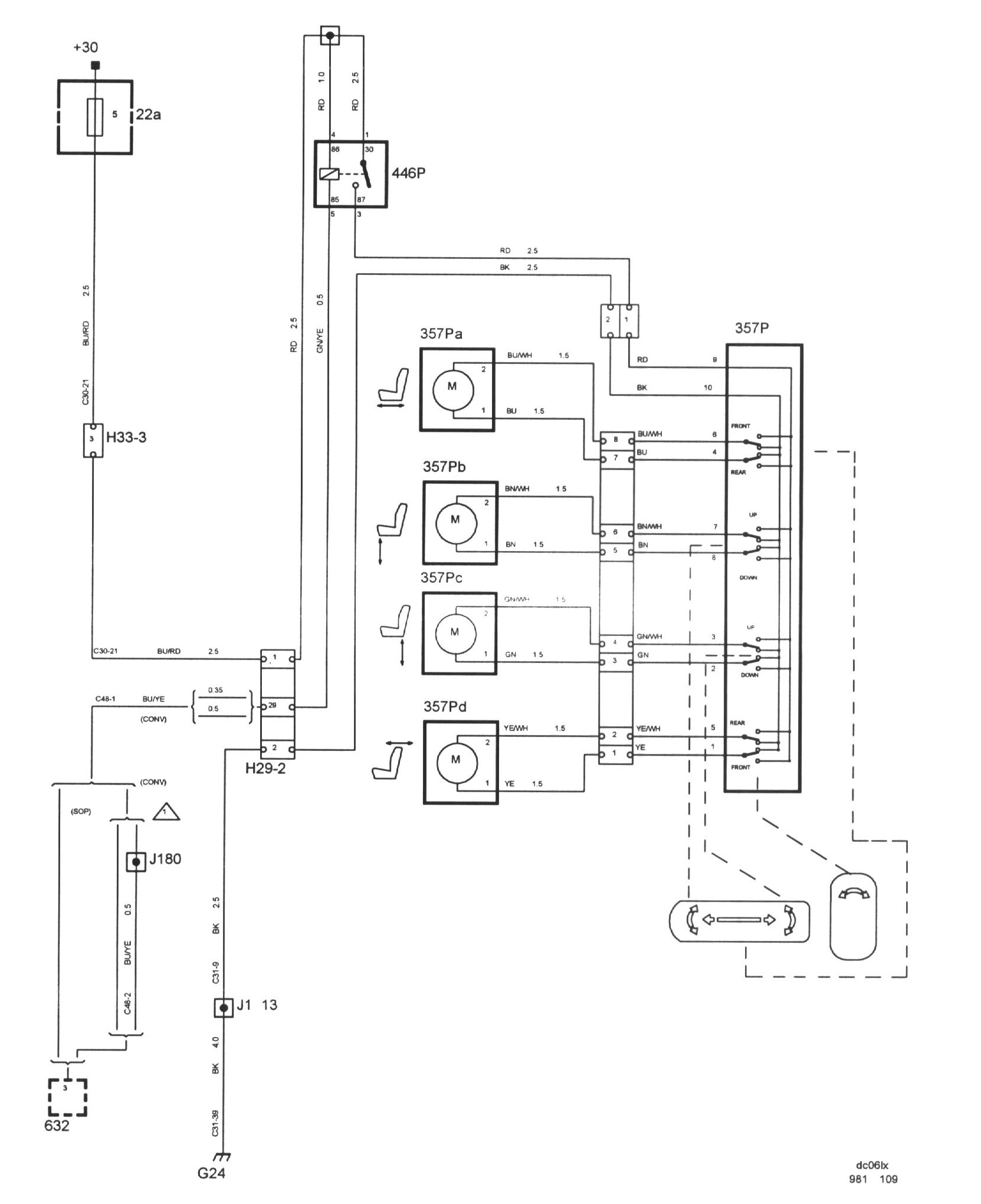

Electrically Adjustable Passenger Seat (LHD):

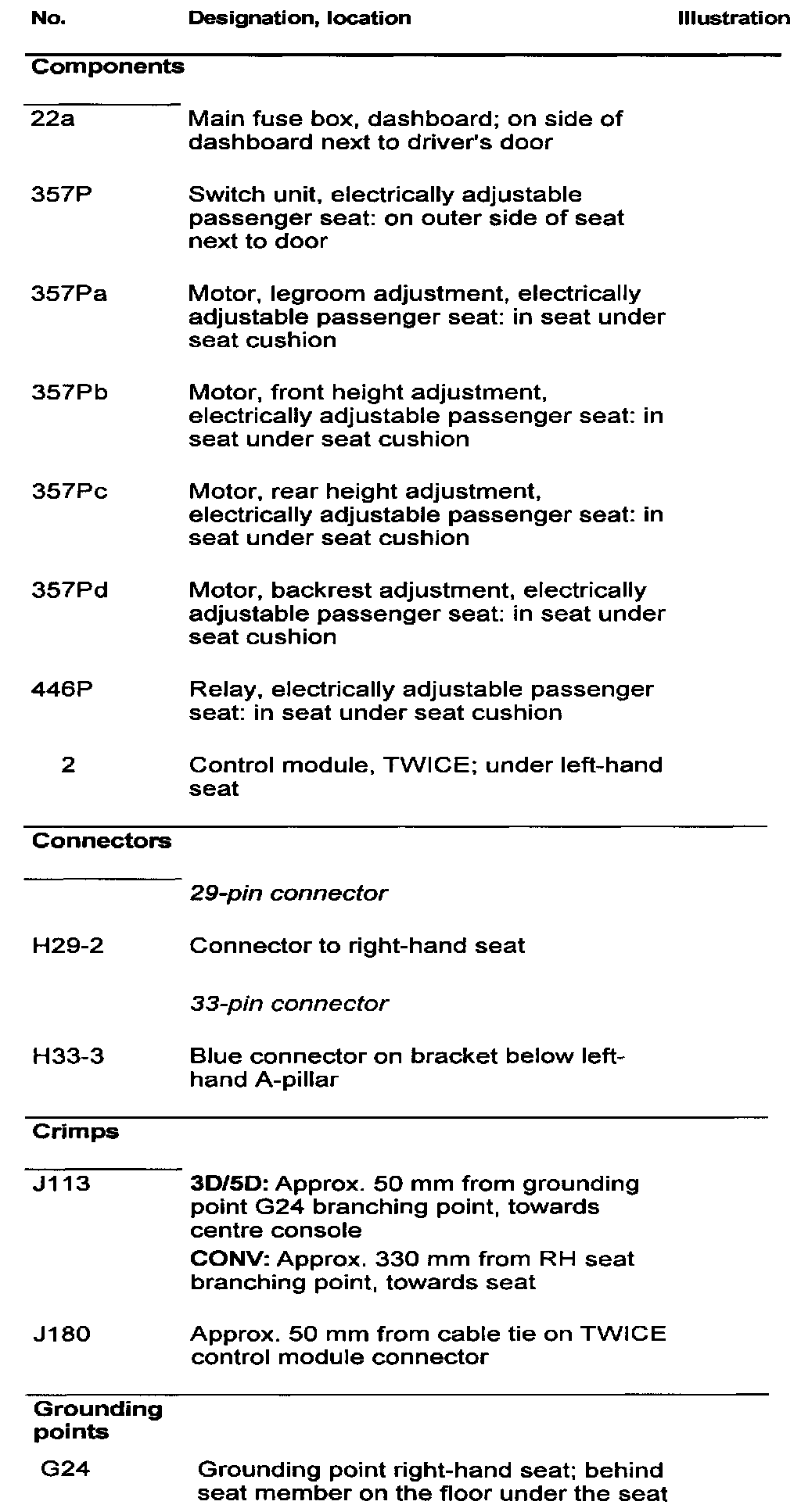

List Of Components:
