Seat Temperature Element



Electrically Heated Seats

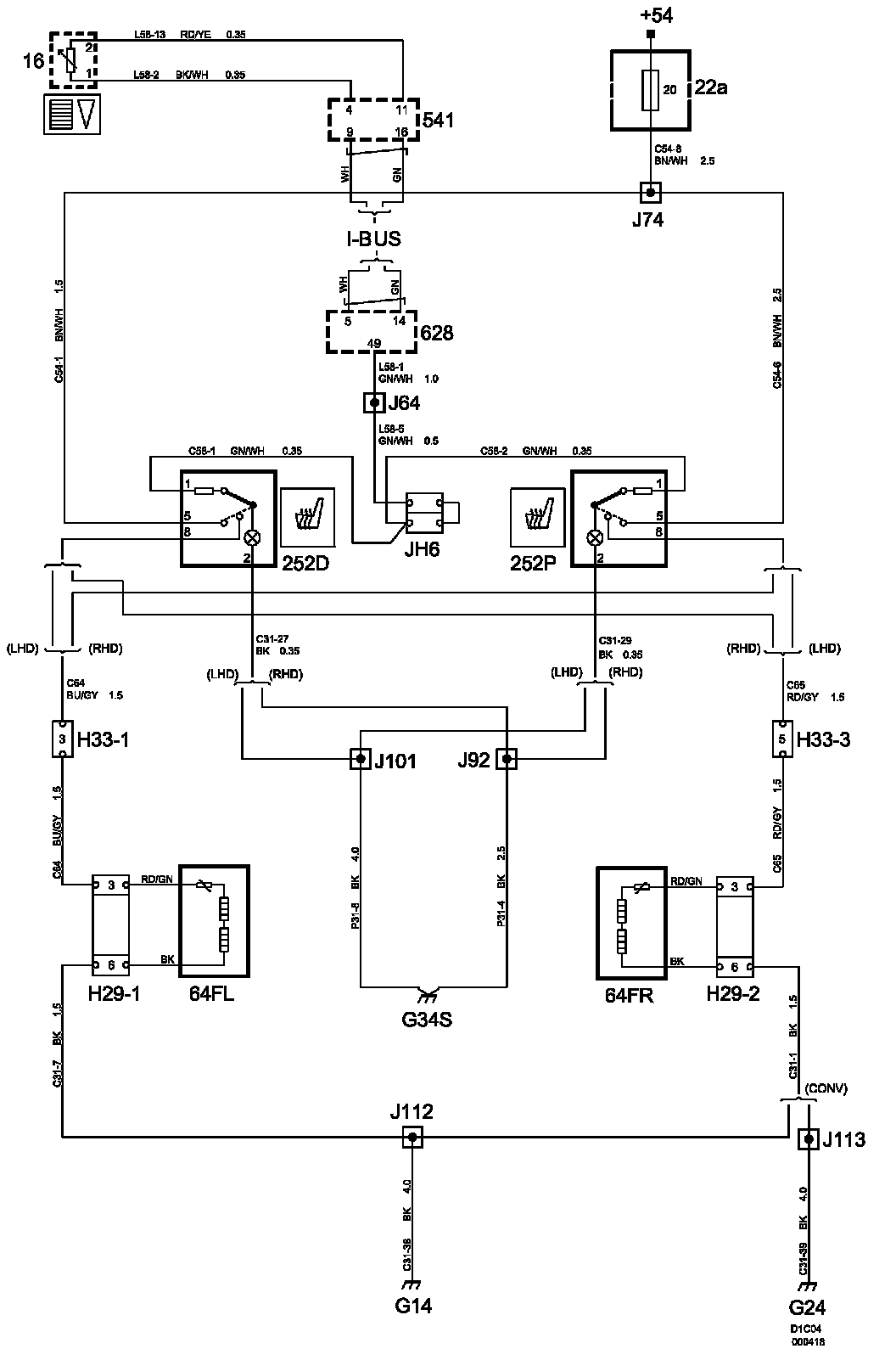

Electrically Heated Seats:

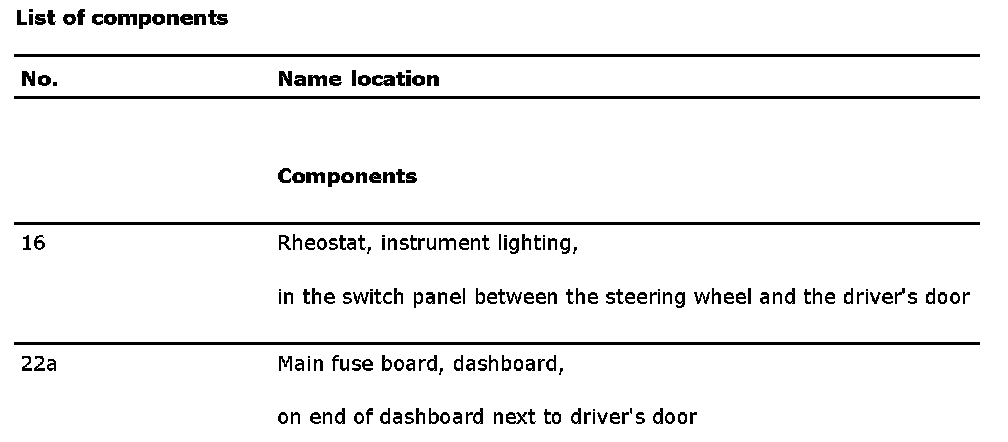

List Of Components (Part 1):

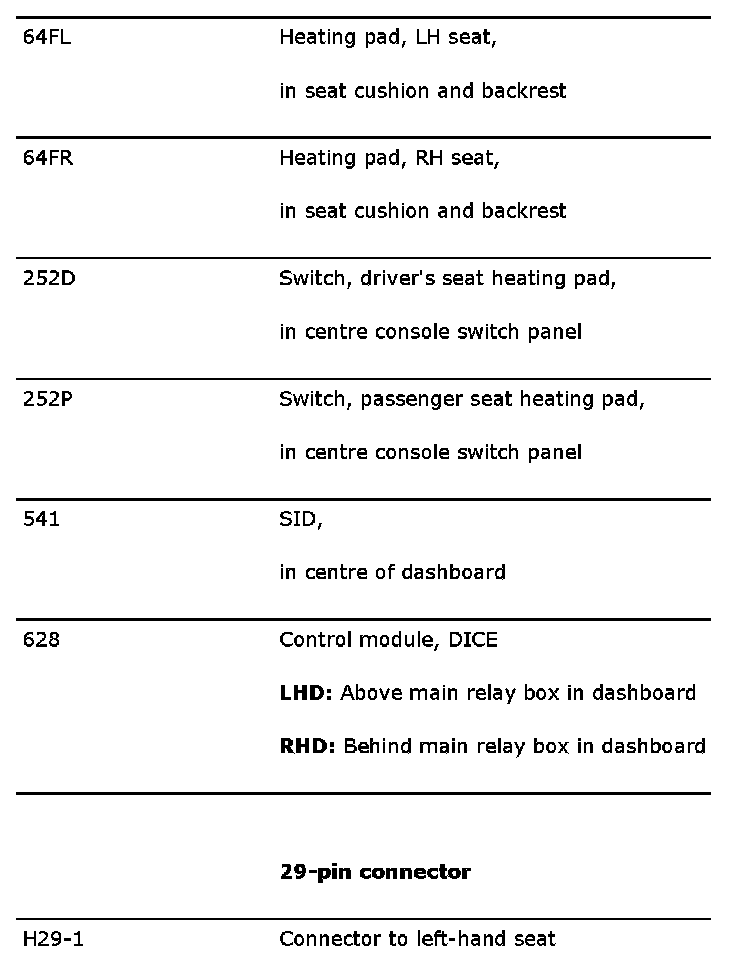

List Of Components (Part 2):

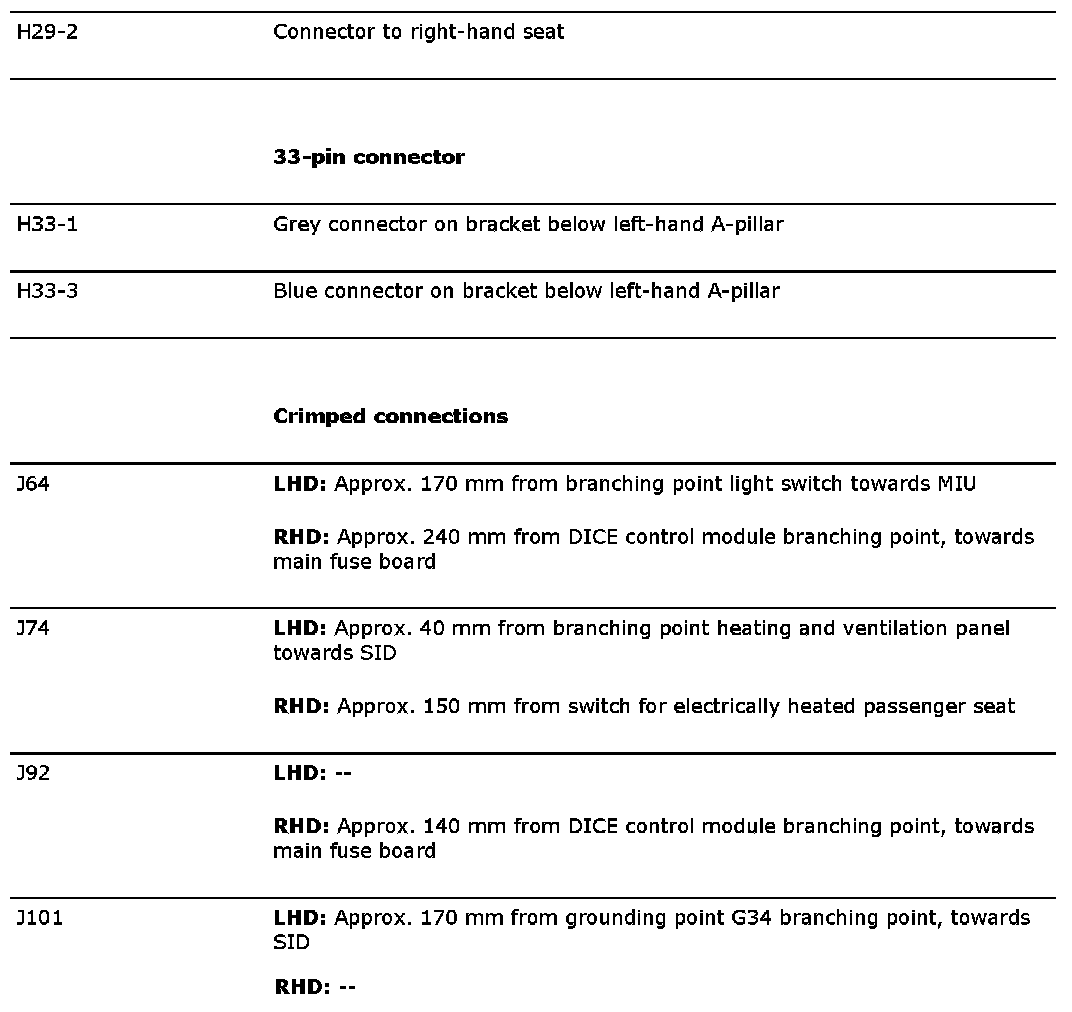

List Of Components (Part 3):

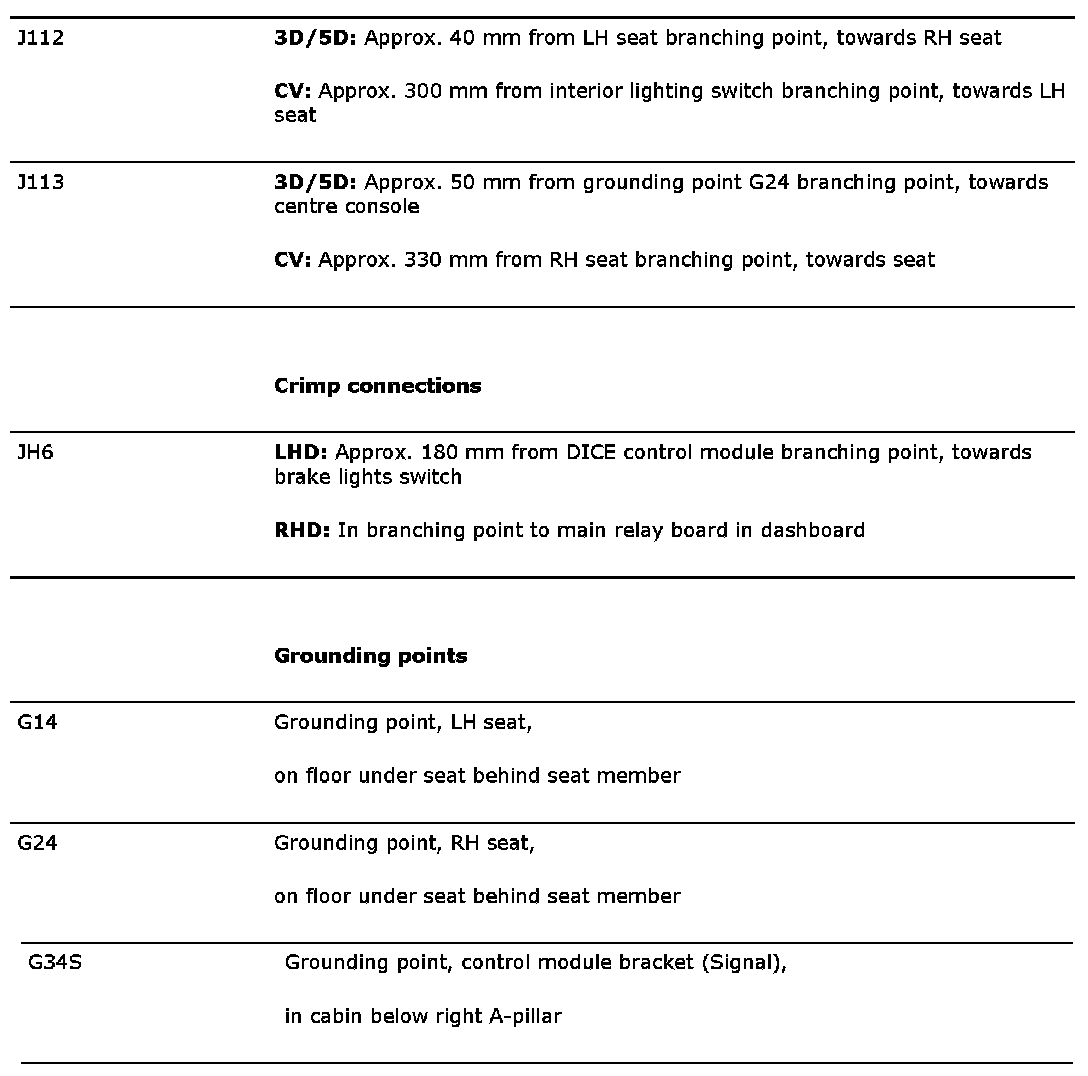

List Of Components (Part 4):
