Audio Systems 1 and 2
Audio Systems 1 and 2

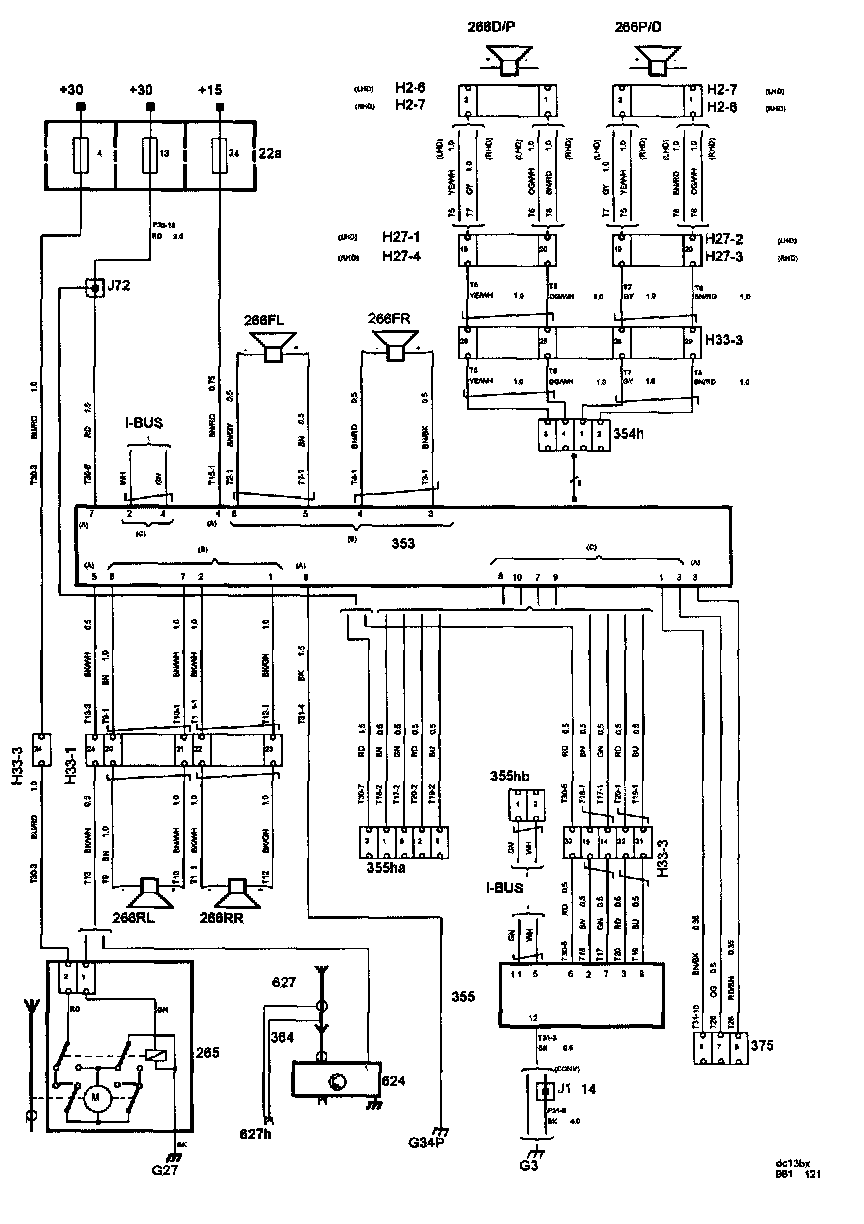

Audio Systems 1 And 2:

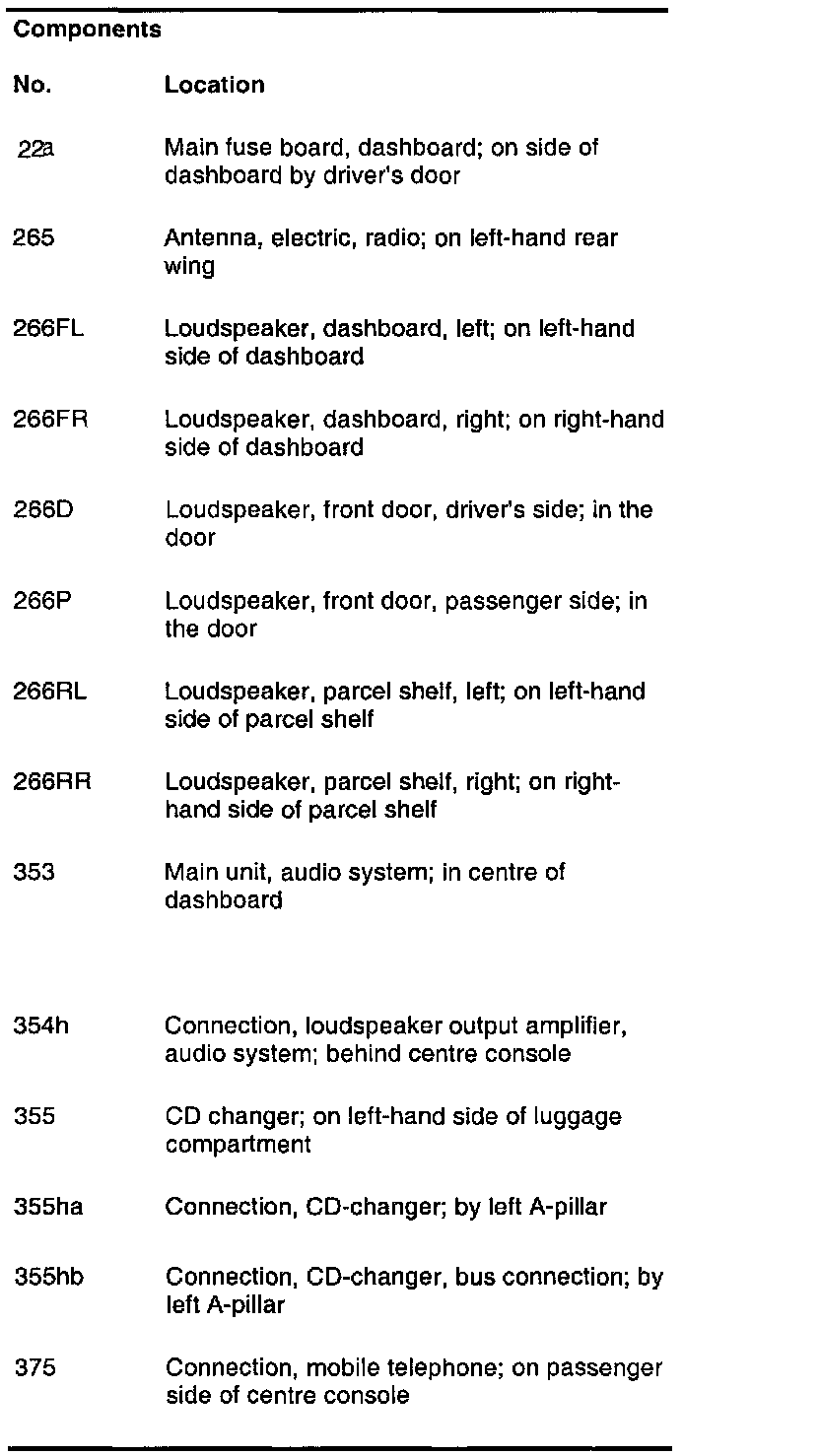

Components:

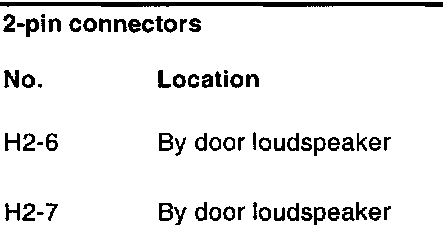

2-pin Connectors:

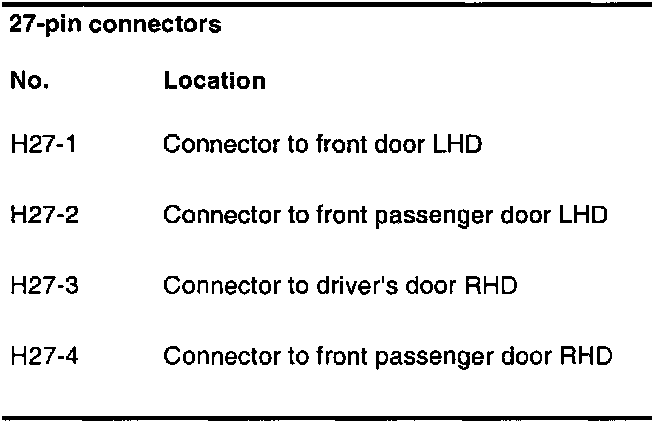

27-pin Connectors:

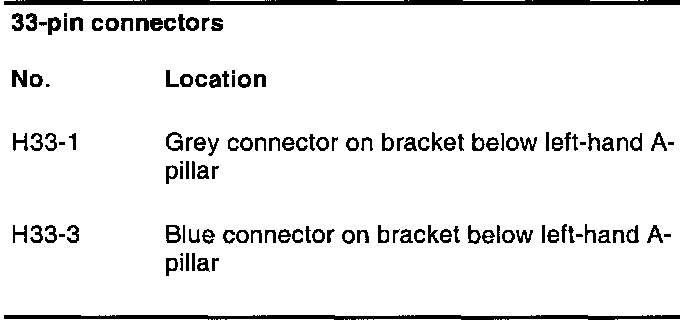

33-pin Connectors:

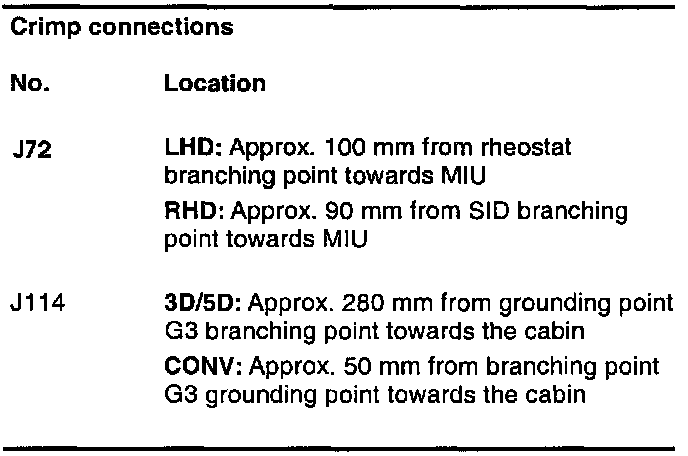

Crimp Connections:

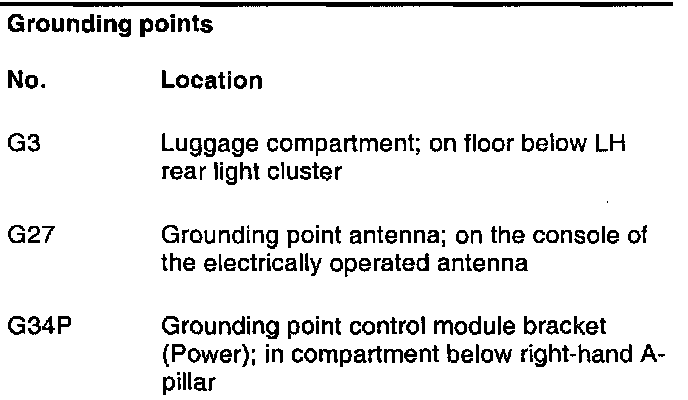

Grounding Points:
