Home >> Saab >> 1999 >> 9-3 Convertible (9400) L4-2.0L Turbo (B204) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Trionic Engine Management >> Trionic T7, 4-Cyl >> Engine Management System Trionic T7, 4-Cyl. (Part 3)

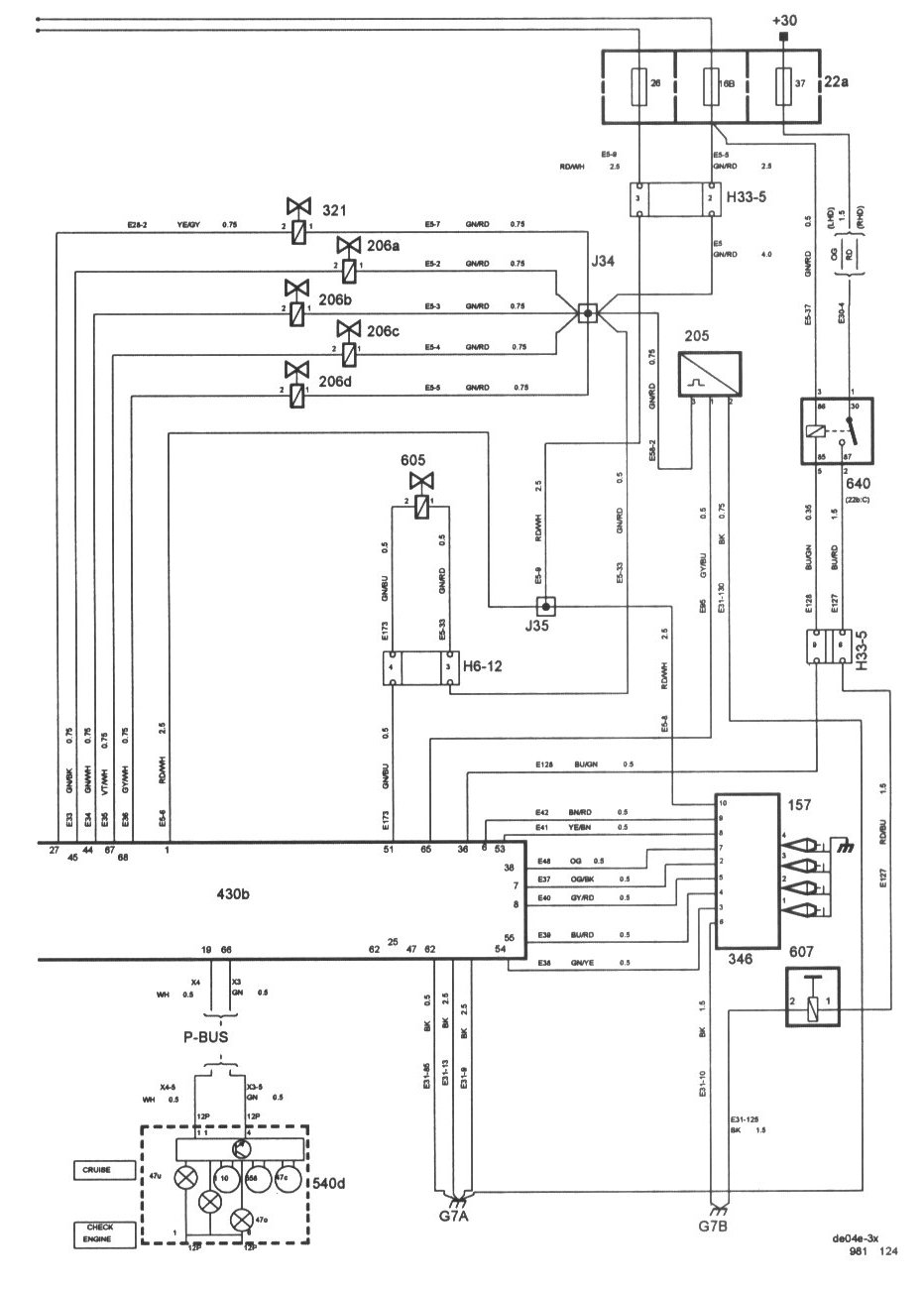

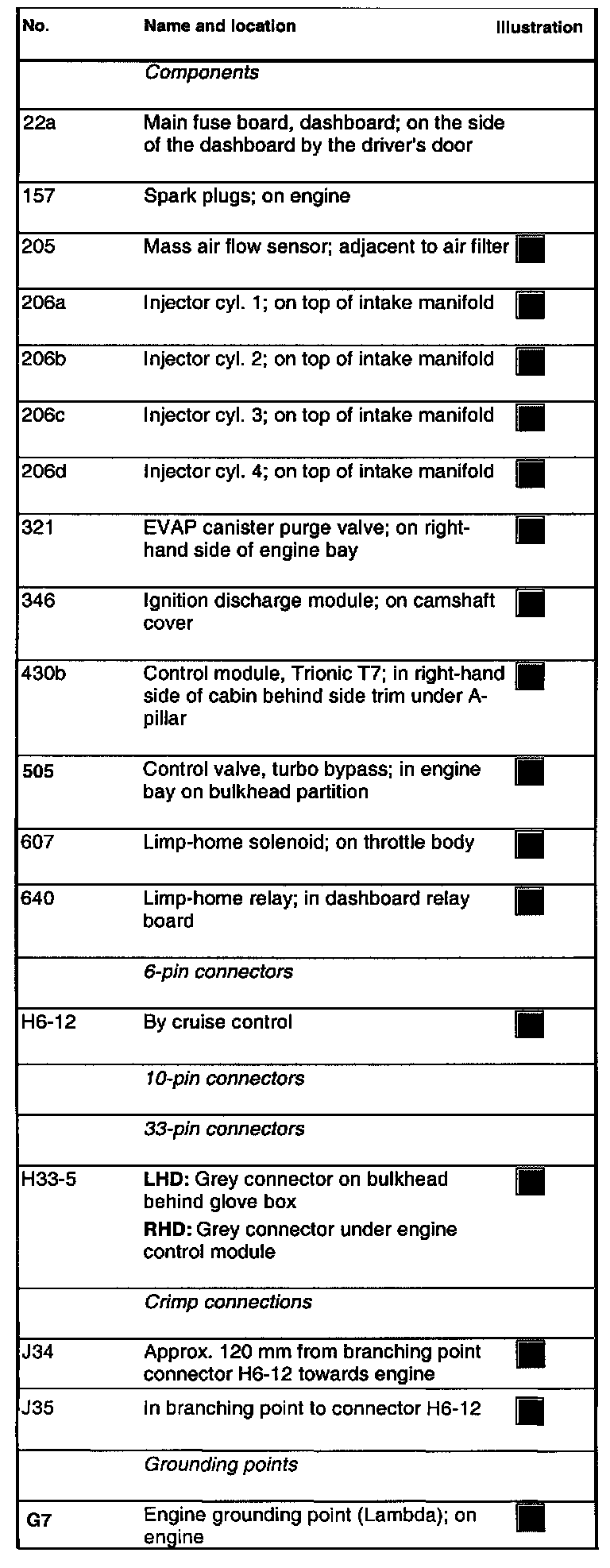

Engine Management System Trionic T7, 4-Cyl. (Part 3)
