Home
>>
Saab
>>
1999
>>
9-3 Convertible (9400) L4-2.0L Turbo (B204)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>

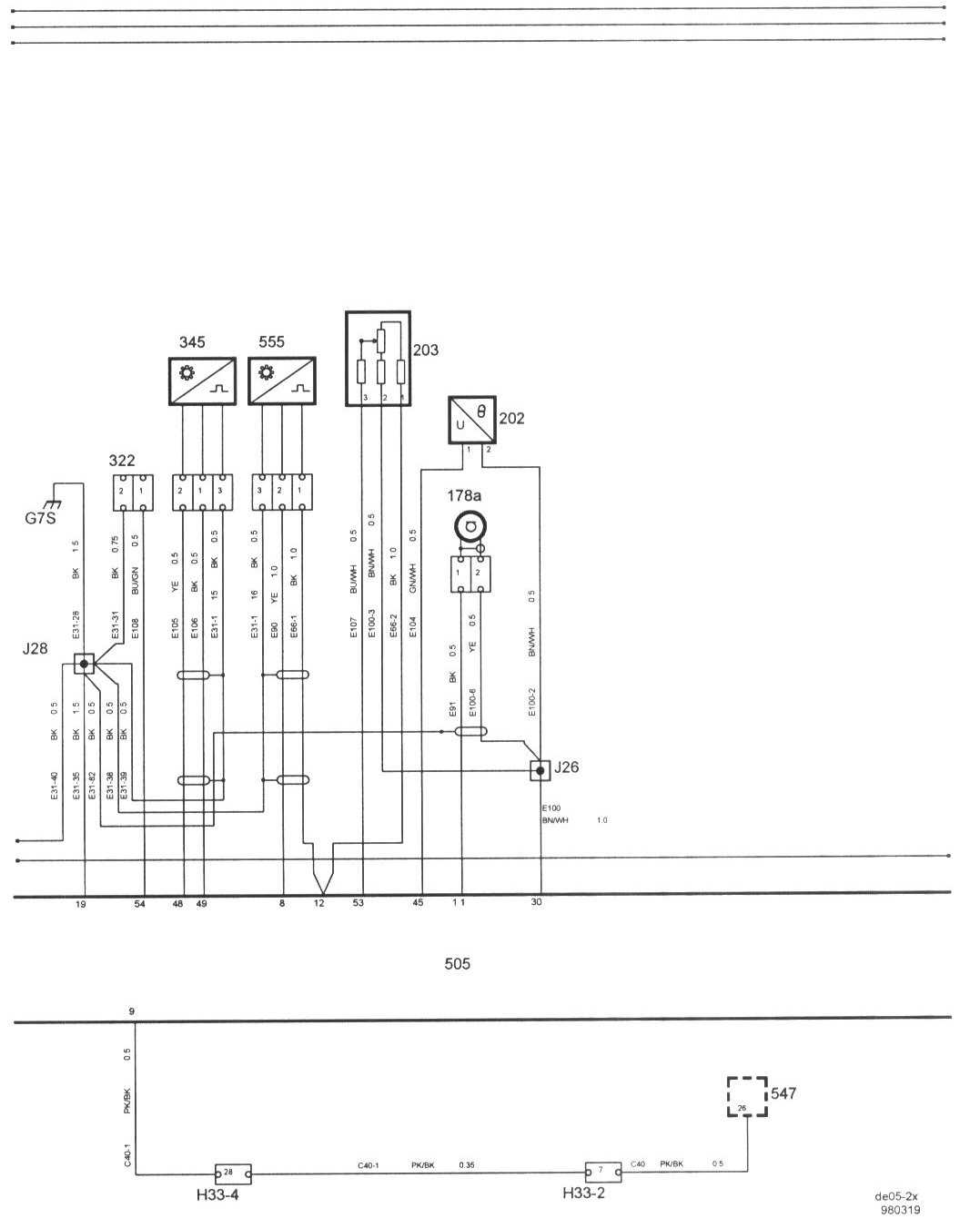

System Diagram
>>
Motronic Engine Management
>>
Motronic 2.10.3 (II)
Motronic 2.10.3 (II)

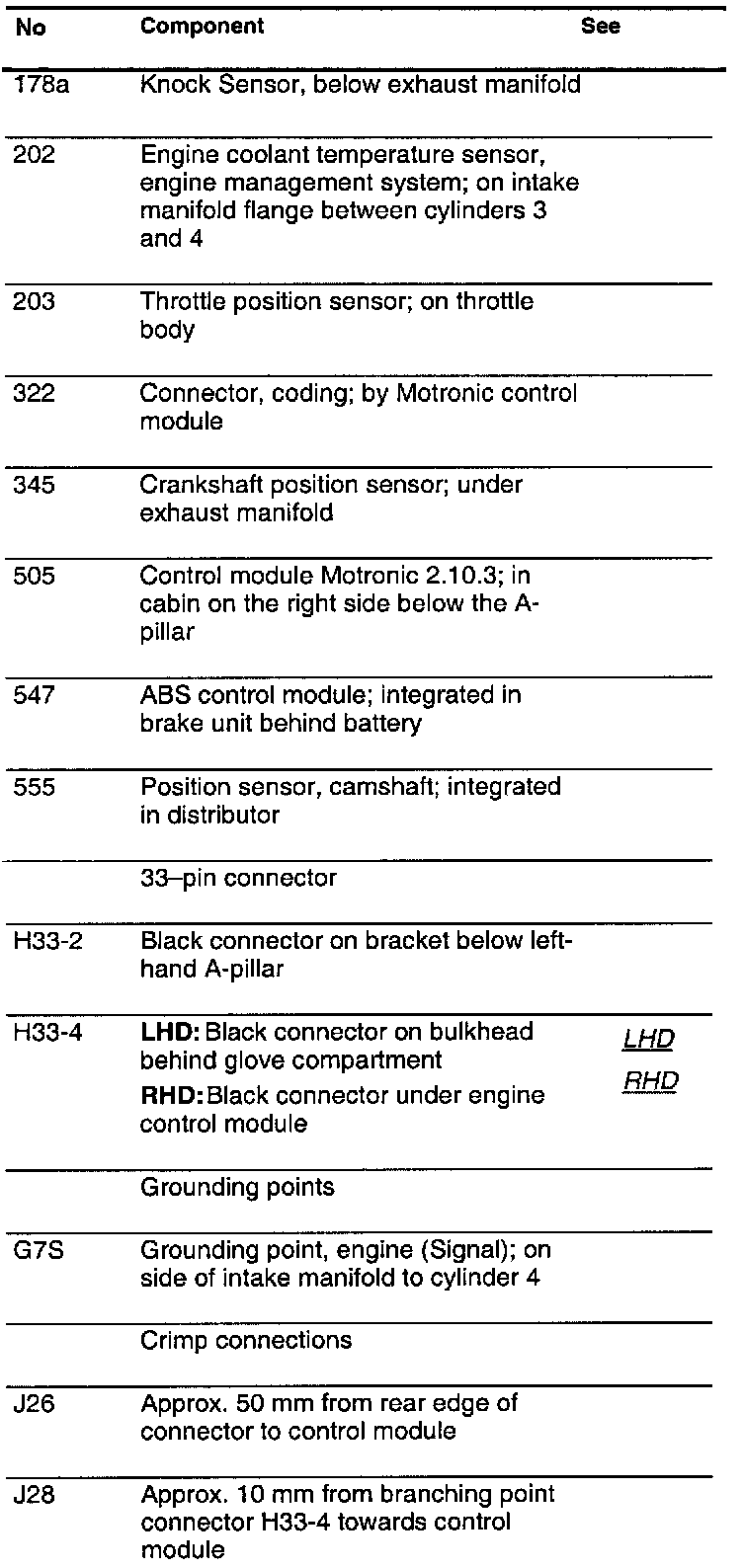

Location Of Components:
