DICE

DICE

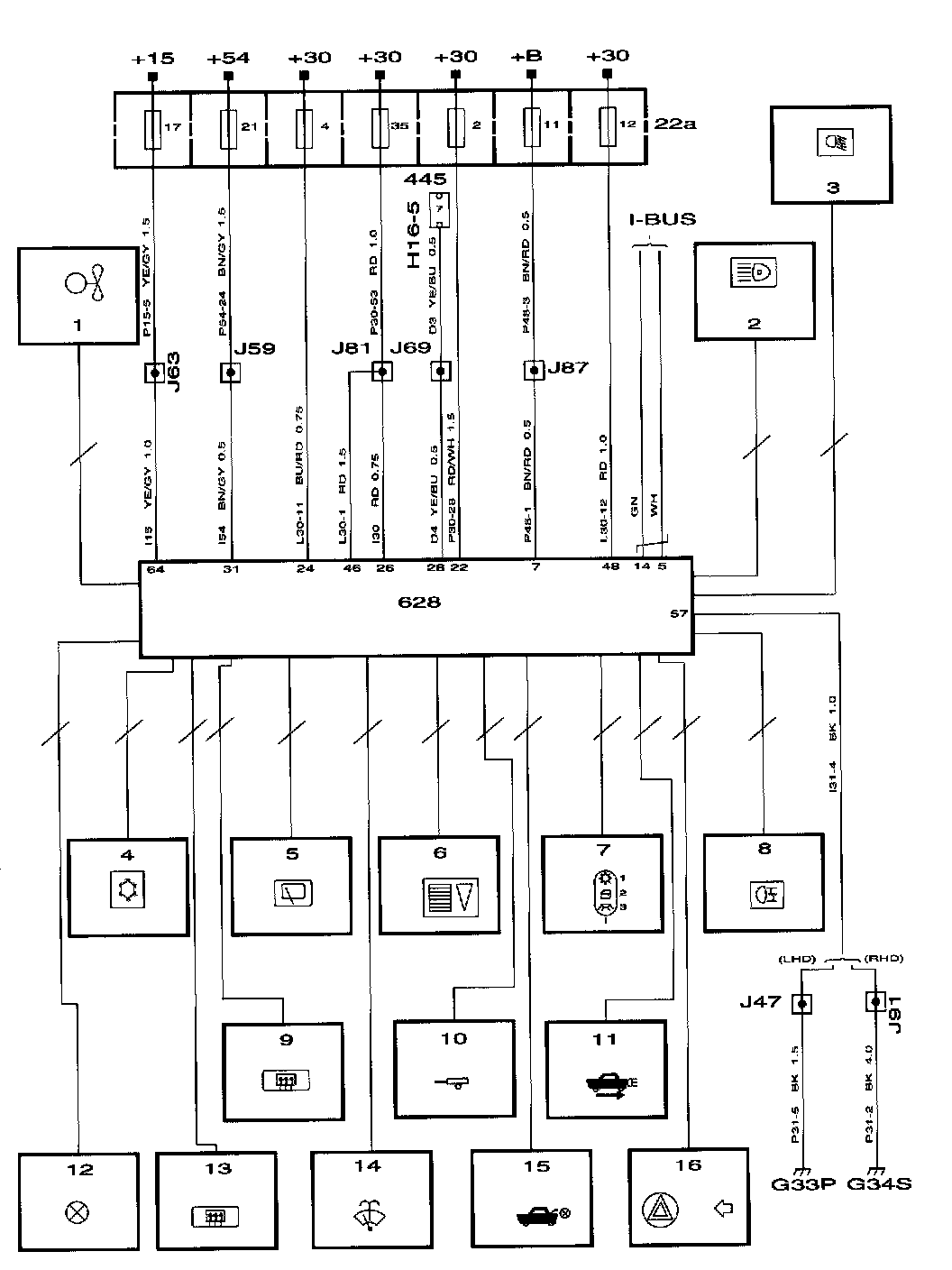

1 Radiator fan system.
2 Headlamps (main and dipped beams).
3 Front fog lights.
4 A/C system.
5 Rear window wiper.
6 Button illumination and lighting for controls.
7 Reading lamps and interior lighting.
8 Rear fog lights.
9 Manual heating and ventilation system.
10 Trailer connector.
11 Reversing lights.
12 Glove box lighting.
13 Electrically heated rear window and door mirrors.
14 Windscreen wipers.
15 Luggage compartment lighting.
16 Direction indicators, hazard flashers.
