Home >> Saab >> 1999 >> 9-3 Convertible (9400) L4-2.0L Turbo (B204) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Bus and Diagnostics >> Bus Convertible LHD

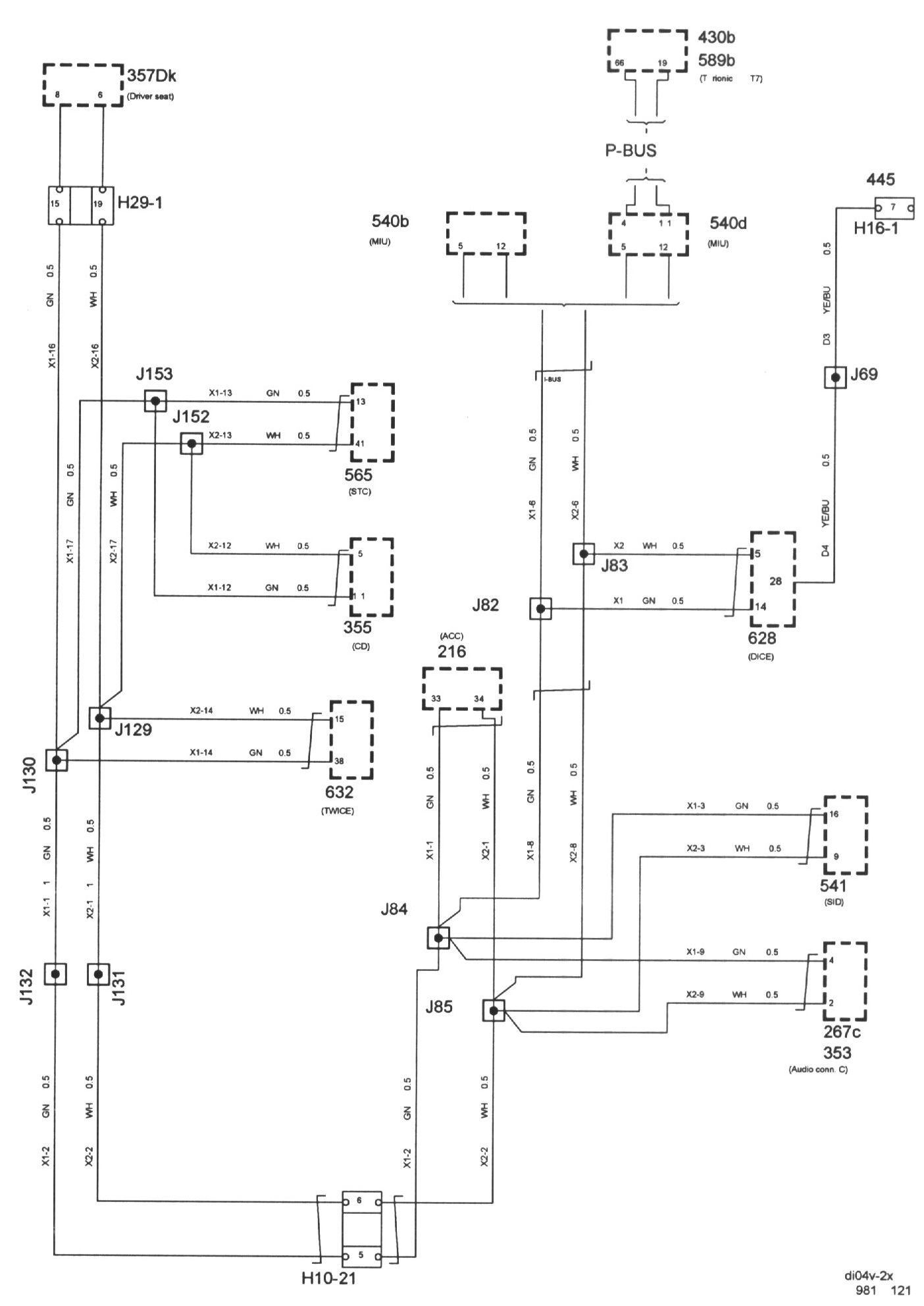

Bus Convertible LHD




Bus Convertible LHD:

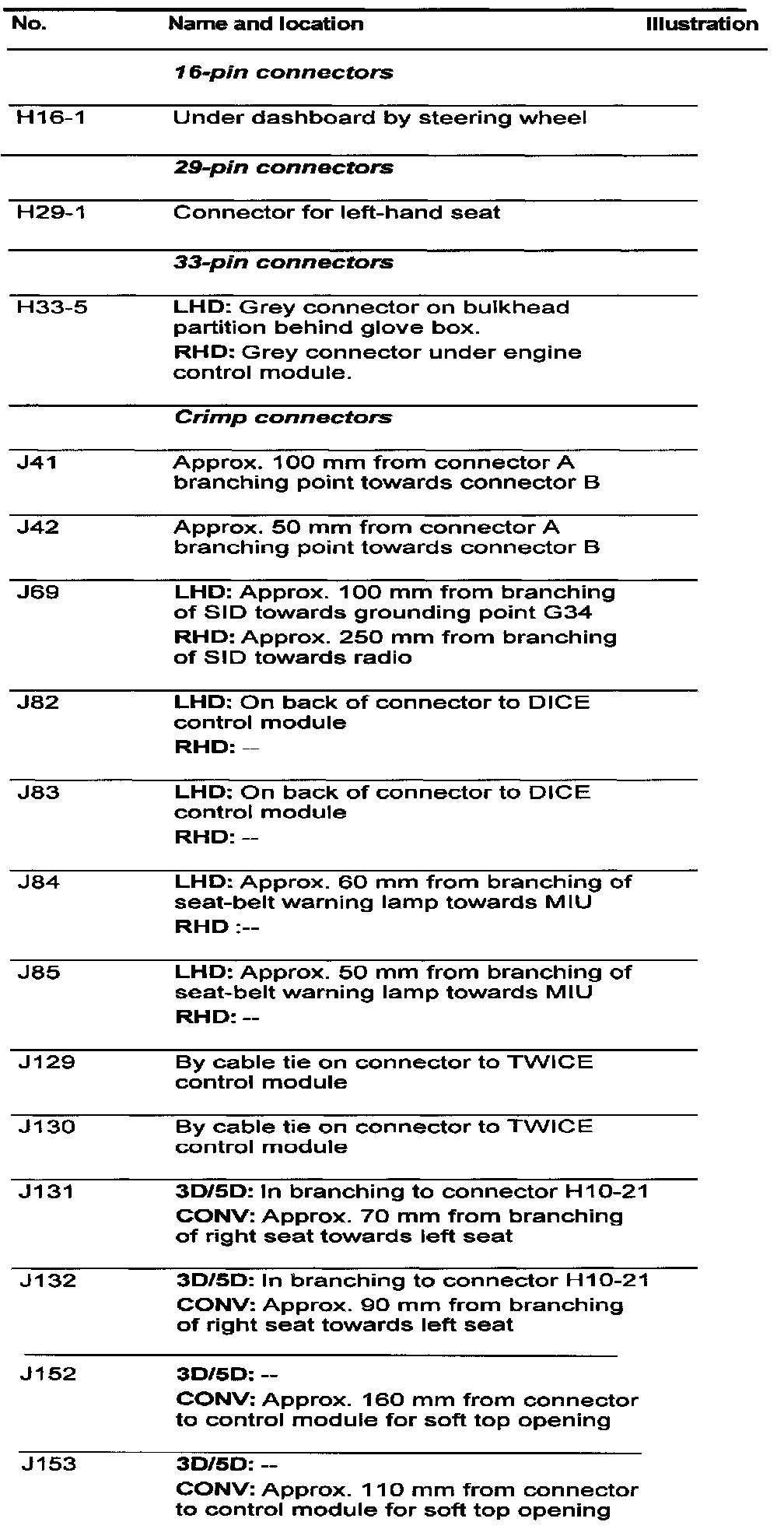

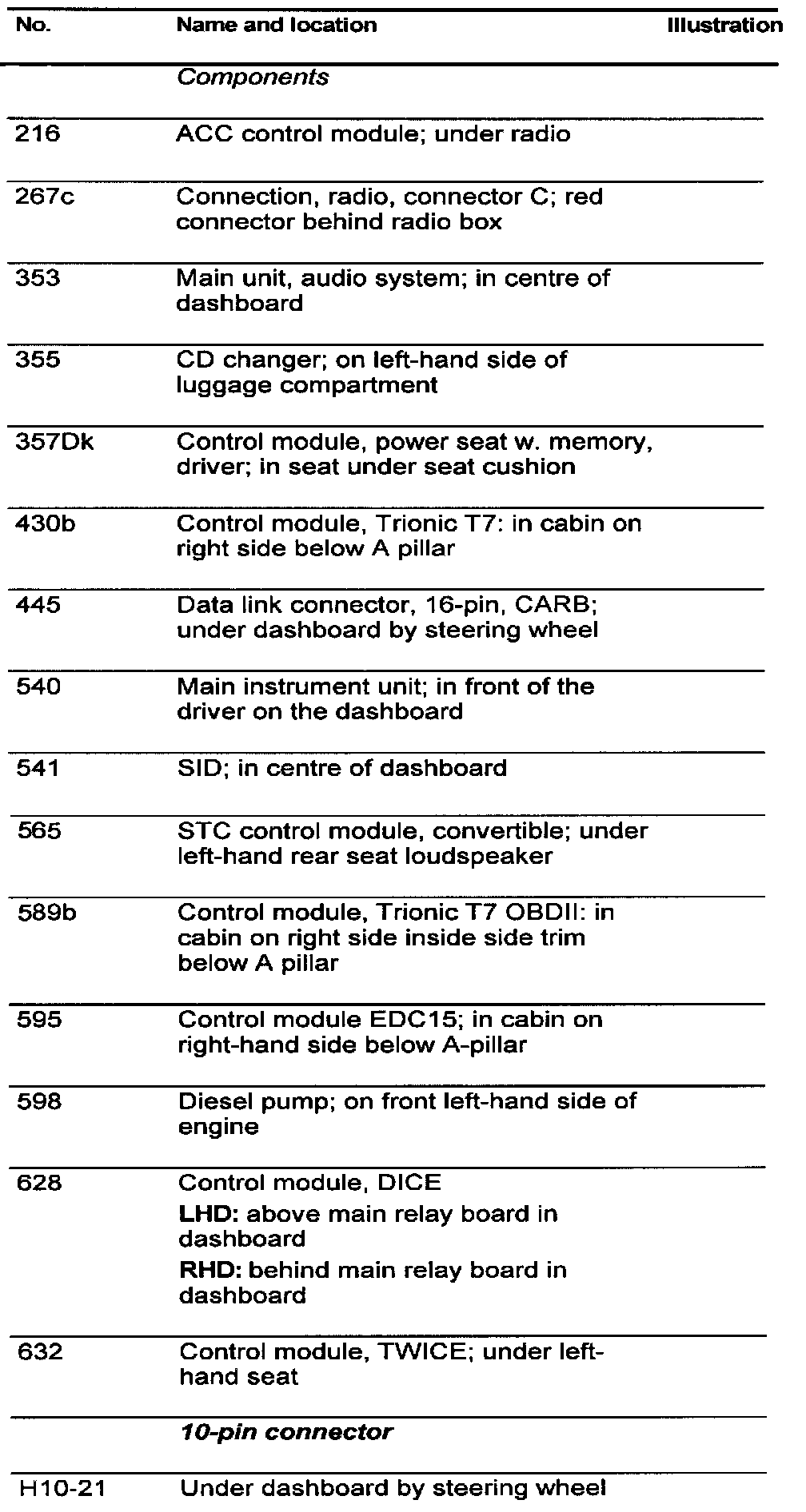

List Of Components (Part 1 Of 2):






List Of Components (Part 2 Of 2):
