Saab
>>
1999
>>
9-3 Convertible (9400) L4-2.0L Turbo (B204)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Locks
>>
System Diagram
>>
Central Locking System,Tailgate, 3D And 5D
Central Locking System,Tailgate, 3D And 5D

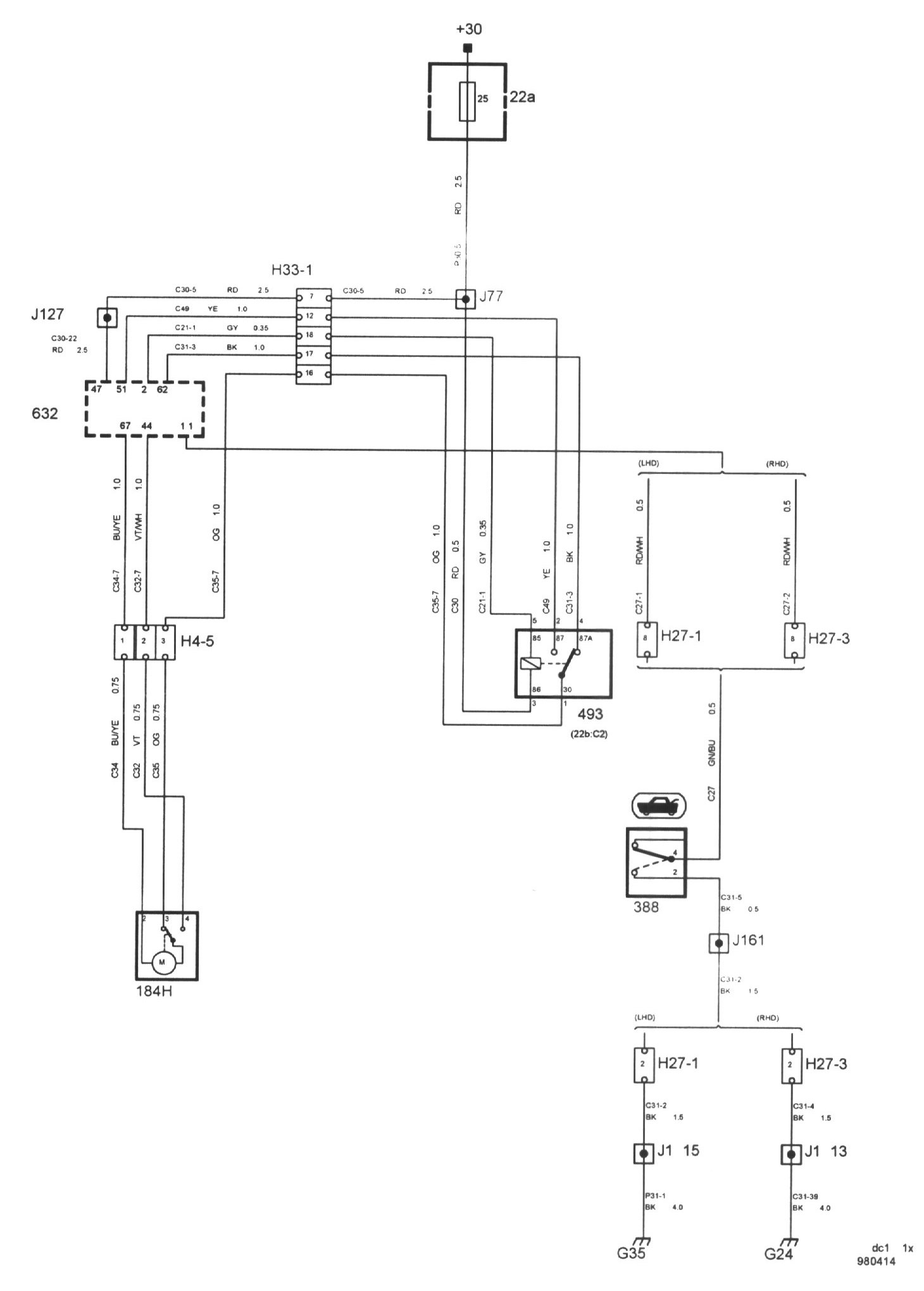

Central Locking System, Tailgate, 3D And 5D:
List Of Components (Part 1 Of 2):
List Of Components (Part 2 Of 2):
