Radiator Cooling Fan Control Module

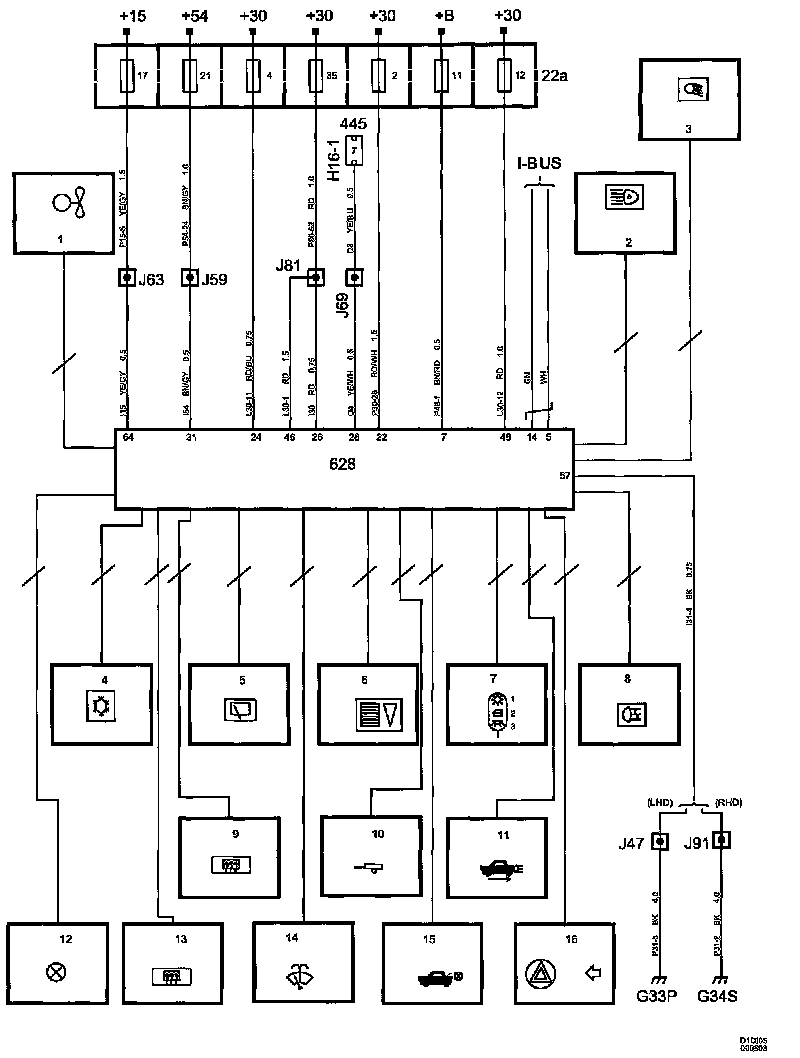

DICE:

1. Petrol engine:
radiator fan system, one speed
Radiator fan system, 2 speeds
2. Main lighting
3. Fog light
4. Air conditioning, A/C
5. Rear window wiper
6. Lighting for buttons and controls
7. Interior lighting and reading lamps
- Interior lighting and reading lamps 3D/5D
- Interior lighting and reading lamps, Convertible
8. Rear fog lights
9. Manual control panel, heating & ventilation
10. Trailer connector
- Towbar provision 3D/5D
- Towbar provision Convertible
11. Reversing lights
- Reversing lights manual gearbox
- Reversing lights, automatic transmission
12. Glove box light
13. Electrically heated rear window and rear mirrors
14. Windscreen wipers
15. Luggage compartment lighting
16. Direction indicators, hazard flashers

List Of Components (Part 2):

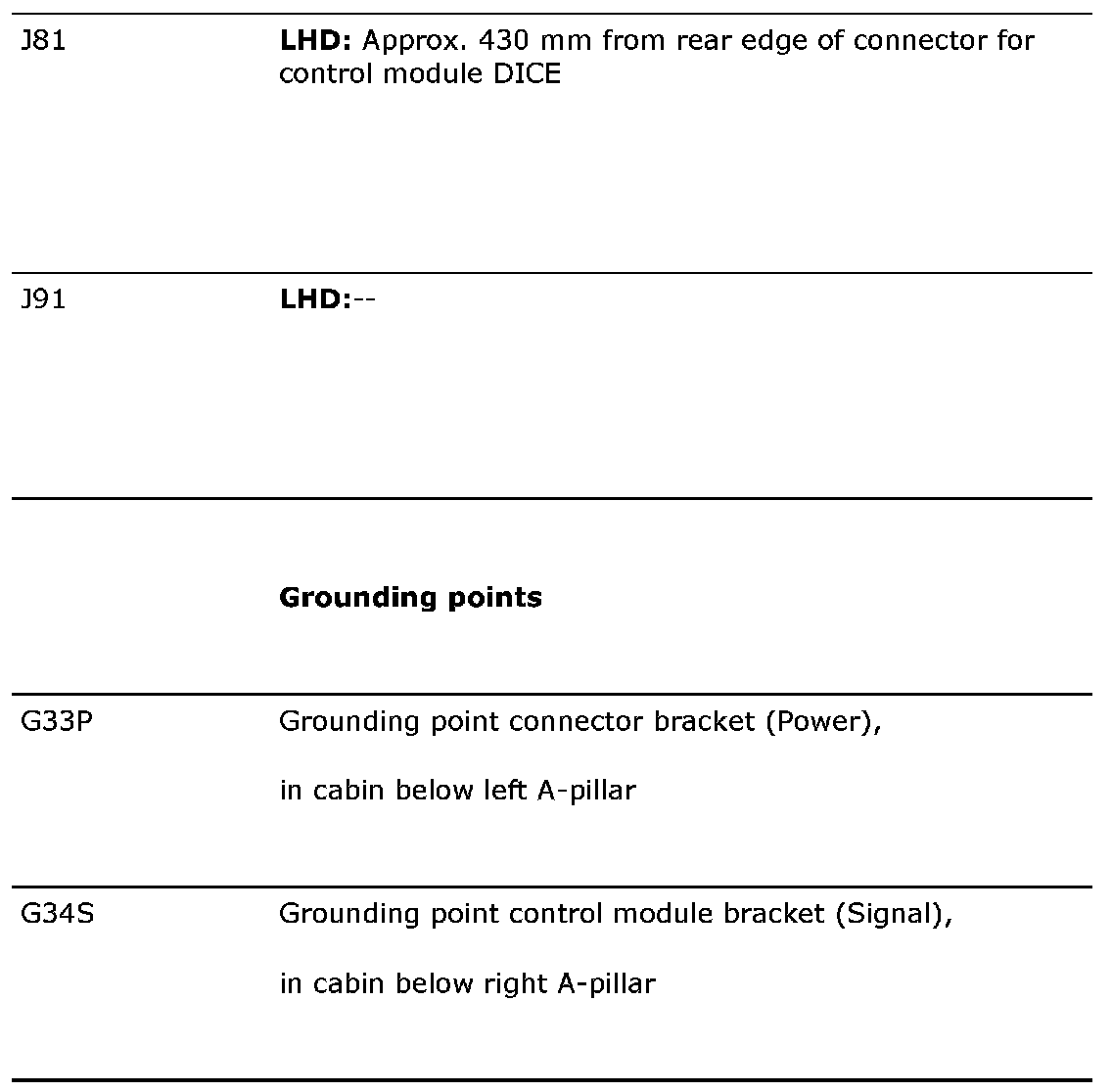

List Of Components (Part 3):

Power Supply Diagrams: The diagrams for the power supplies that may be feeding this system (+30, +15, +54, +X and +B) can be found at Power and Ground Distribution diagrams. Electrical Diagrams
