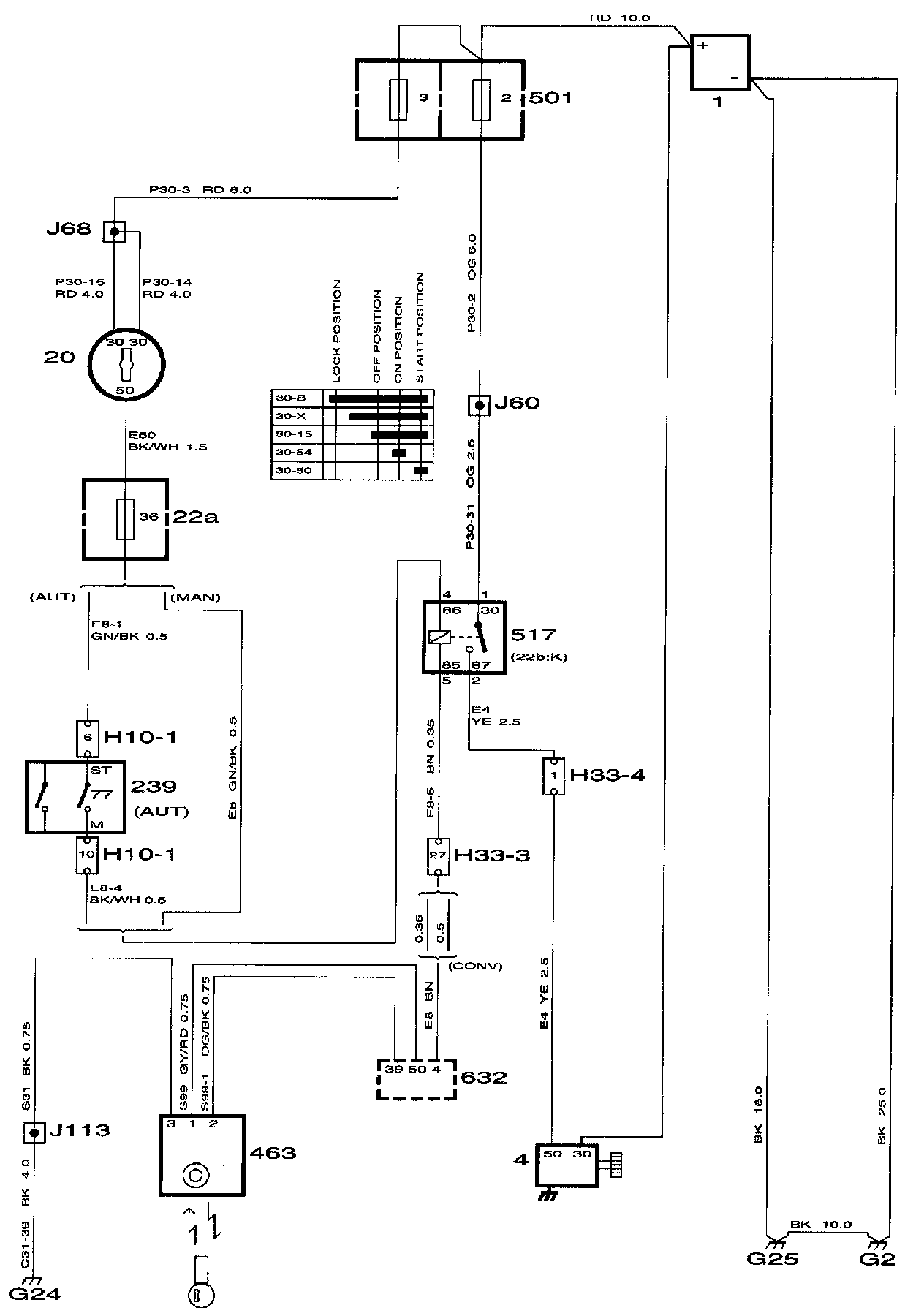

Starter Motor System








Starter Motor System

Components
No. Name and location
1 Battery; in the engine bay
4 Starter motor; on the rear left-hand side of the engine
20 Ignition switch; in floor console between front seats
22a Main fuse board, dashboard; on the side of the dashboard by the driver's door
239 Transmission range switch 2, automatic transmission (31,77); on automatic gearbox in engine bay
463 Antenna unit, immobilizer; by ignition switch
501 Main fuse board, Maxi fuses; next to battery
517 Relay, starter relay; in main relay board in dashboard
632 Control module, TWICE; under left-hand seat

10-pin connectors
No. Location
H10-1 Black connector on bracket behind the battery

33-pin connectors
No. Location
H33-3 Blue connector on bracket below left-hand A-pillar
H33-4 LHD: Black connector on the bulkhead behind the glove box
RHD: Black connector under the engine control module

Crimp connections
No. Location
J60 LHD: In branching point to DICE control module
RHD: Approx. 130 mm from branching point main fuse board towards DICE control module
J68 LHD: Approx. 350 mm from connector towards airbag control module
RHD: Approx. 50 mm from branching point ignition switch towards cigarette lighter
J113 3D/5D: Approx. 320 mm from branching point right rear door towards right-hand seat
CONV: Approx. 330 mm from branching point right-hand seat towards seat

Grounding points
No. Location
G2 Grounding point left-hand structural member (battery); in engine bay on side plate in front of left-hand wheel housing
G24 Grounding point right-hand seat; under the seat on the floor behind the seat member
G25 Grounding point gearbox (battery); in the engine bay on the gearbox
