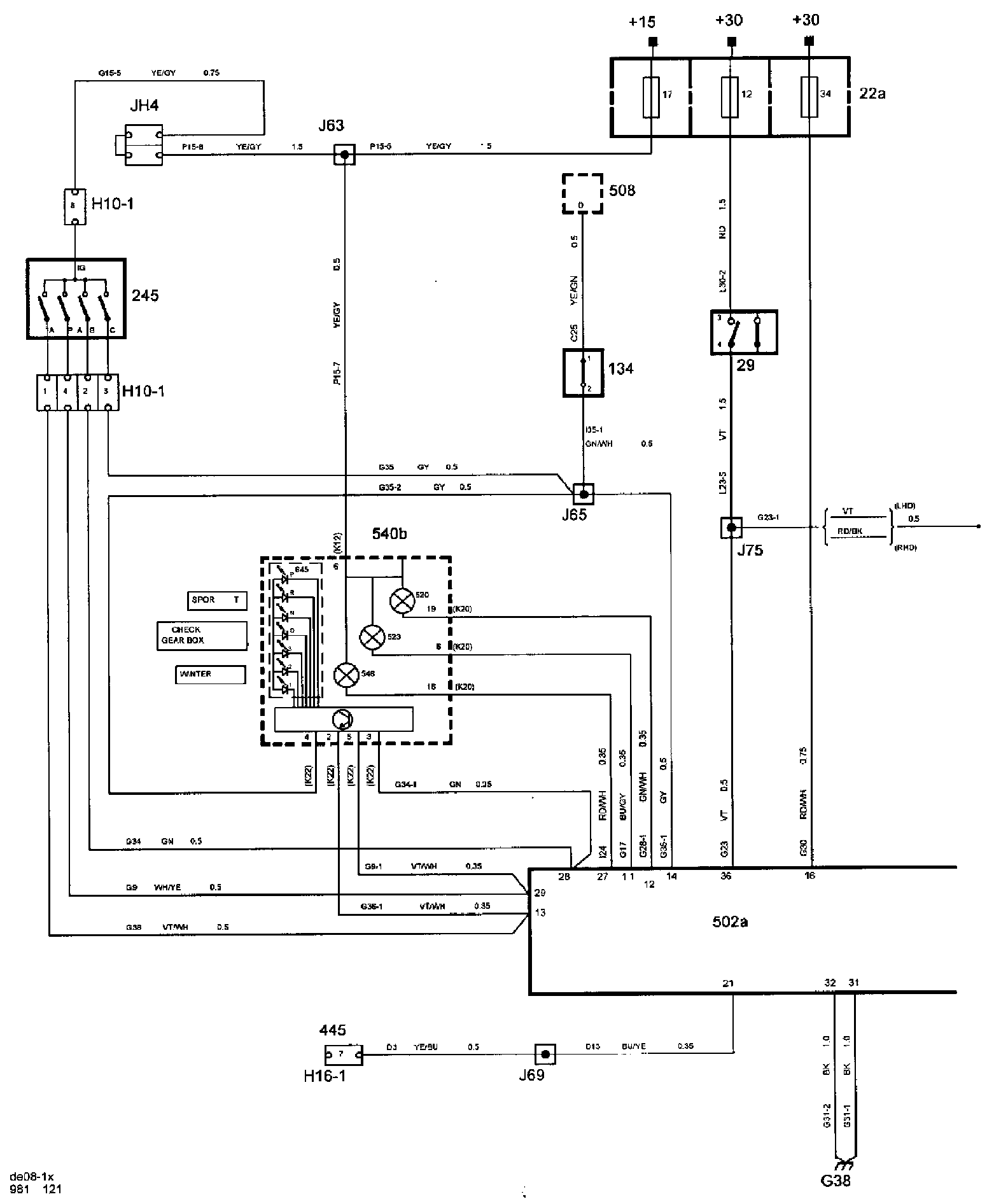

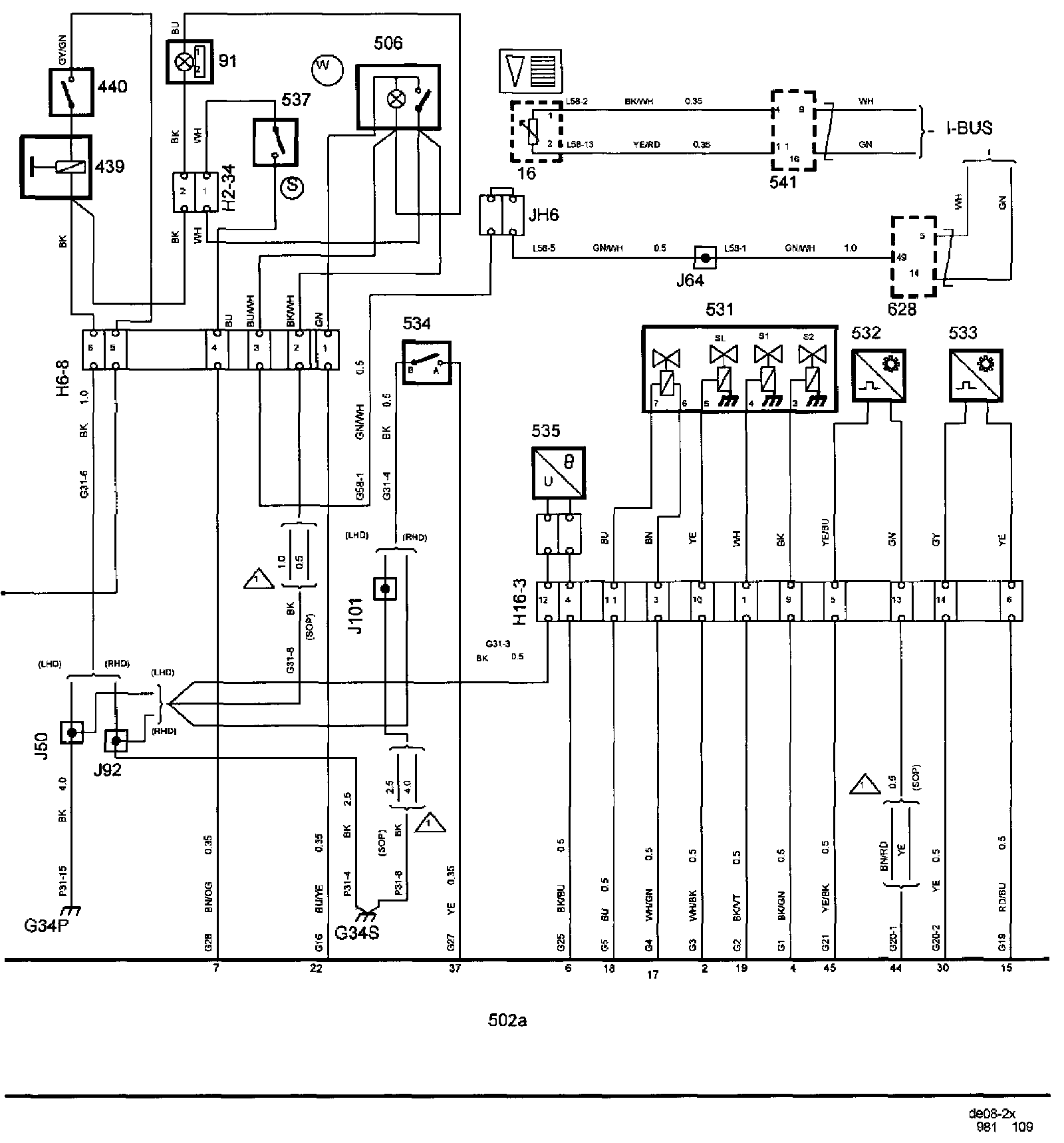

System Diagram

Part 1 of 3:

Part 2 of 3:

Part 3 of 3:

SMS no. Components

22a Main fuse board, dashboard; on end of dashboard by driver's door
29 Brake light switch; on pedal bracket
134 Brake light switch, cruise control; on pedal bracket
245 Transmission range switch 1, automatic; on automatic gearbox in engine bay
445 Data link connector, 16-pin, CARB; under dashboard by steering column
508 Control module, cruise control; on right-hand side of engine bay below windscreen
540b Main instrument unit; in front of driver in dashboard
502 Control module, TCM; in cabin on right-hand side of bulkhead
91 Lamp, gear position indicator lighting; in floor console by selector lever
440 Microswitch, selector lever; under selector lever
9 SHIFT LOCK solenoid, gear selector; under gear selector
537 SPORT switch; on top of selector lever
506 WINTER switch; next to selector lever
16 Rheostat, instrument lighting; in switch panel between steering wheel and driver's door
541 SID; in centre of dashboard
628 Control module, DICE LHD: above main relay board in dashboard
531 Solenoid valves, TCM; on bottom of gear box
532 Input shaft speed sensor, gearbox; on gearbox
533 Output shaft speed sensor, gearbox; on gearbox
534 Kickdown switch; under accelerator pedal
535 Transmission fluid temperature sensor; on bottom of gearbox
430 Trionic control module; in cabin on right-hand side below the A-pillar
589 Trionic OBD II control module; in cabin on right-hand side inside the side trim below the A-pillar

Connectors
H10-1 Black connector on bracket behind battery
H16-1 Under dashboard by steering column
H2-34 In selector lever housing
H16-3 On bracket behind battery
H33-4 Black connector on bulkhead behind glove box

Crimps
J69 Approx. 250 mm from branching point hazard flasher switch towards grounding point
J65 Approx. 175 mm from branching point rheostat towards brake light switch
J75 Approx. 370 mm from rear edge of connector to DICE control module
J63 Approx. 200 mm from branching point MIU towards SID
JH4 In DICE control module branching point
JH6 Approx. 180 mm from branching point DICE control module towards brake light switch
J50 Approx. 270 mm from branching point grounding point G34 towards SID
J64 Approx. 40 mm from branching point rheostat towards MIU

Grounding points
G38 Grounding point, floor console; on centre tunnel between seats
G34S Grounding point, control module bracket (Signal): in cabin below right-hand A-pillar
G34P Grounding point, control module bracket (Power); in cabin below right-hand A-pillar
