Home >> Saab >> 1999 >> 9-3 Convertible (9400) L4-2.0L Turbo (B204) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Automatic Transmission/Transaxle >> Control Module, A/T

Control Module, A/T

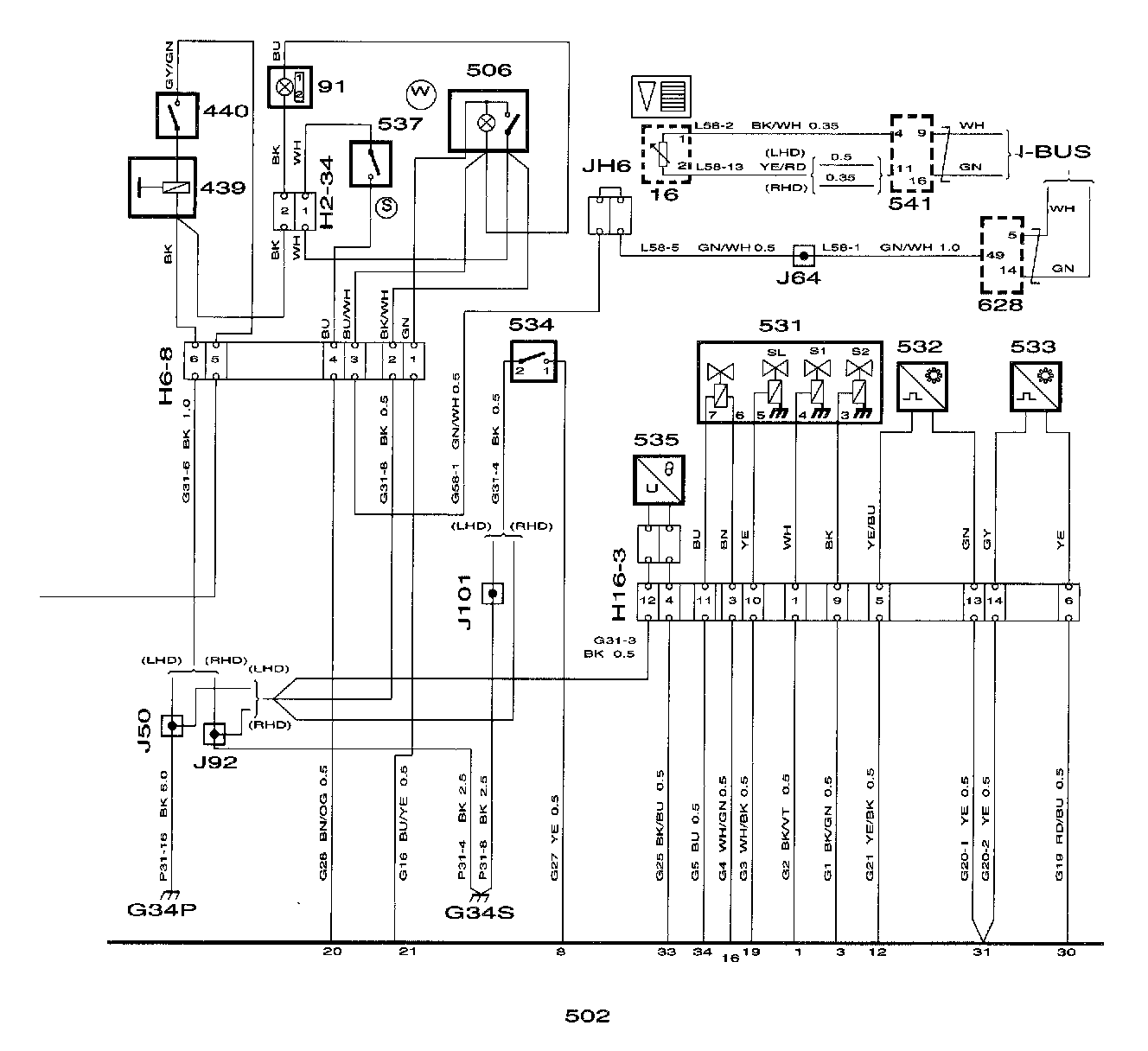

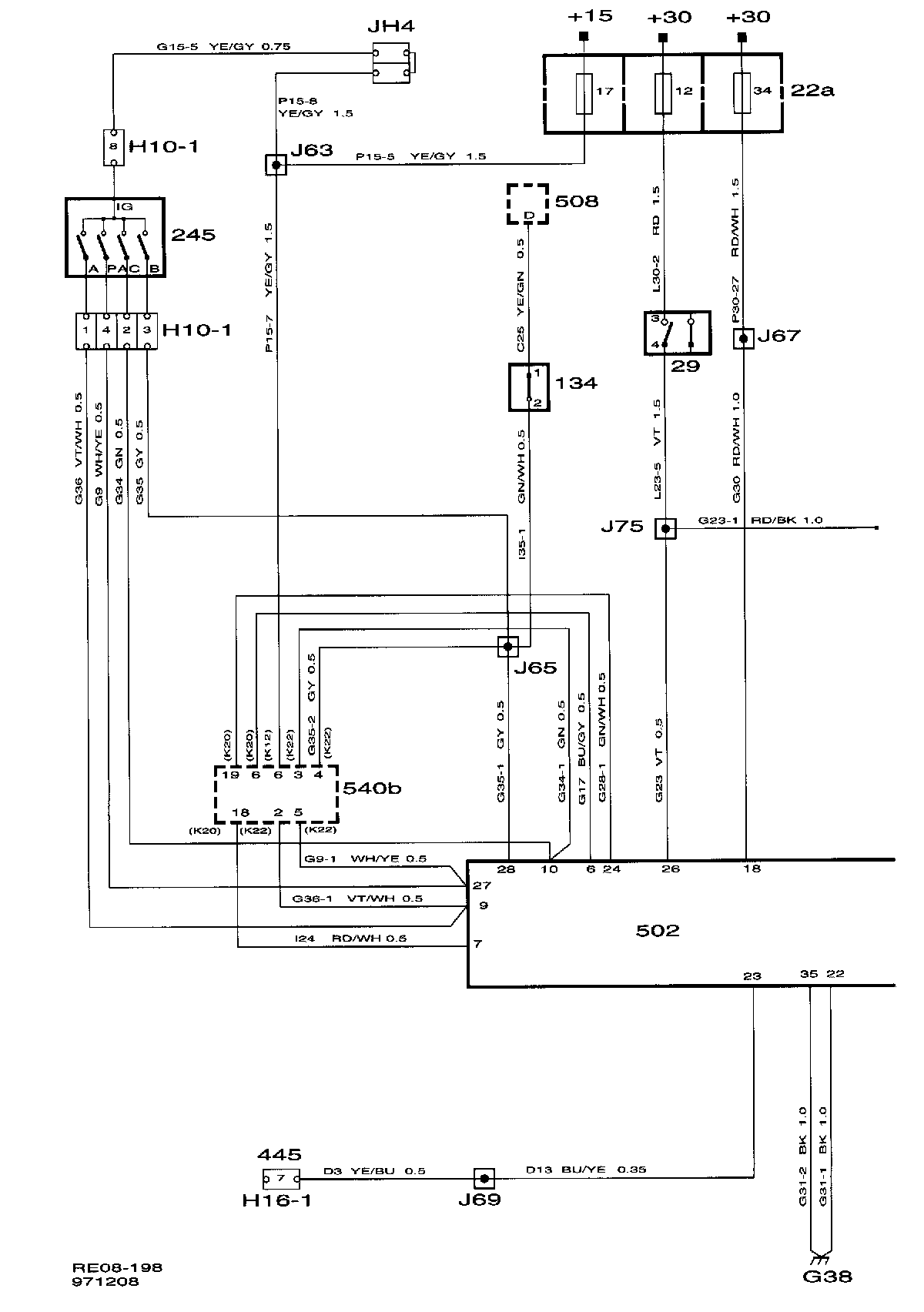

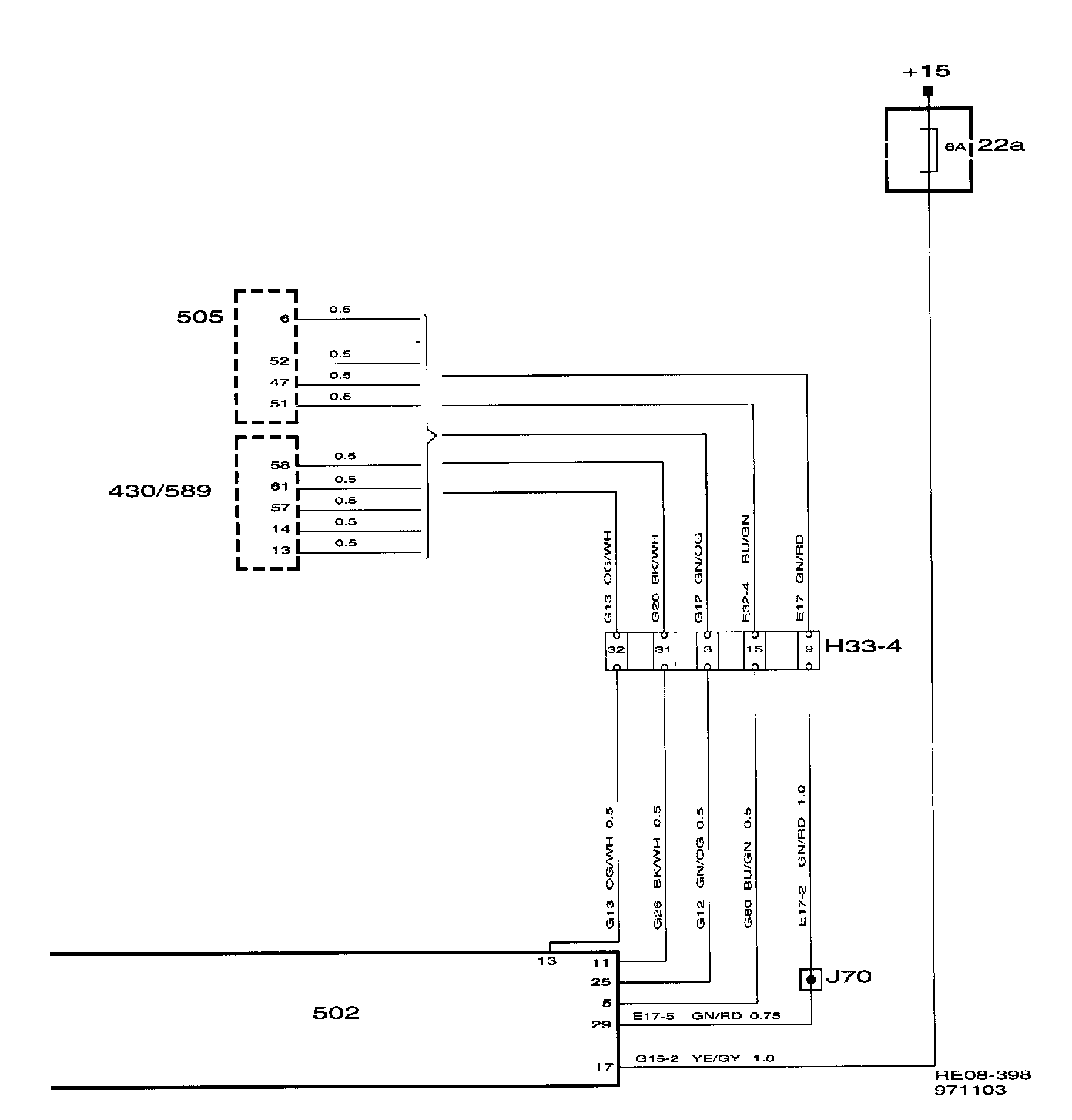

TCM Wiring Diagram




�%L :

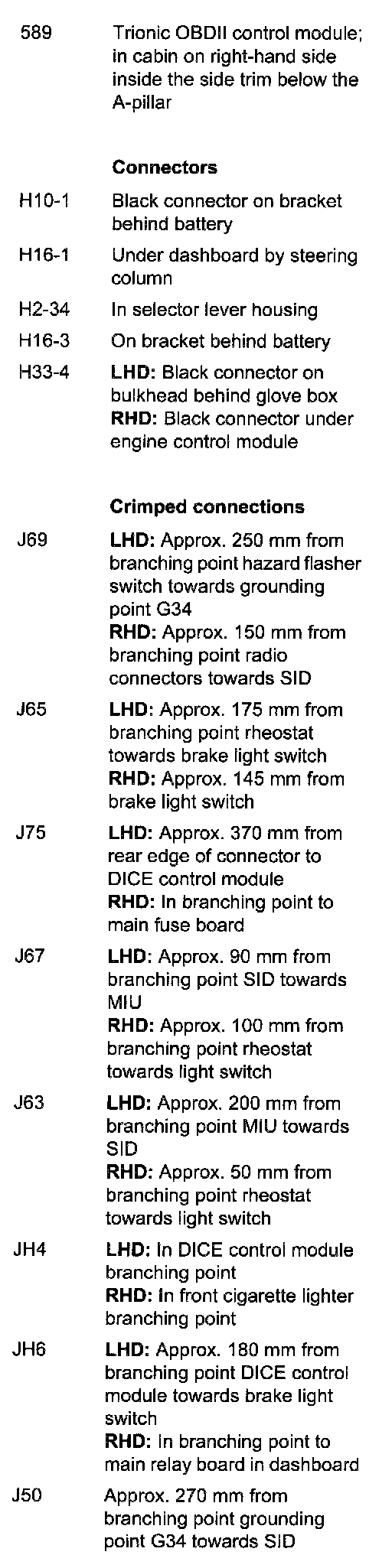

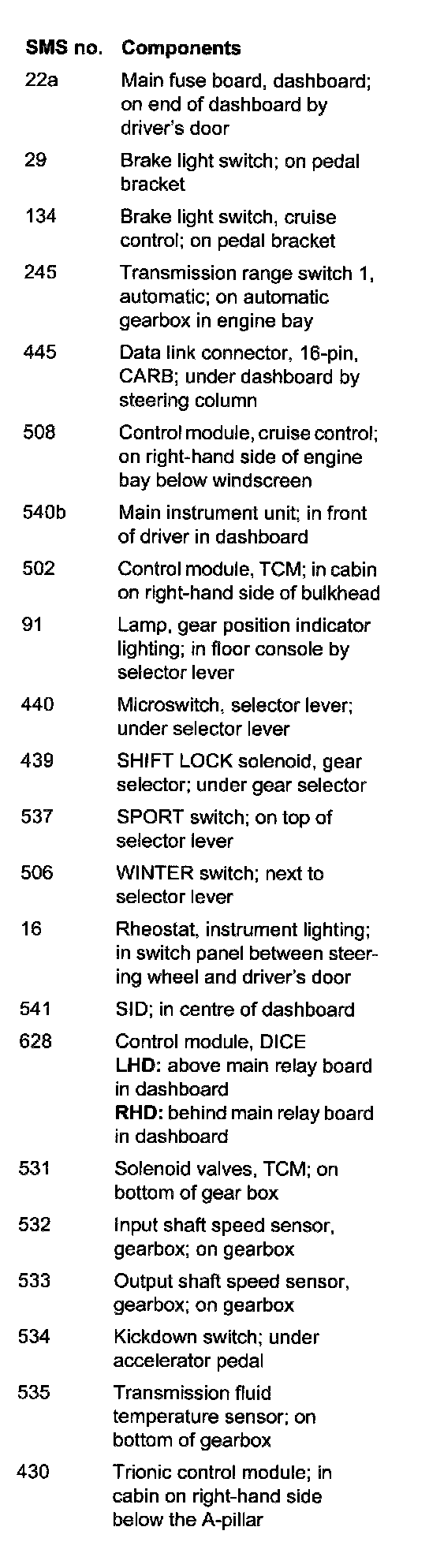

TCM Components, Connectors, Crimped Connections and Grounding Points
