Home >> Saab >> 1999 >> 9-3 Convertible (9400) L4-2.0L Turbo (B204) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Rear Door Window Motor >> CV Motor, Rear Left Electric Window Lift (164RL)

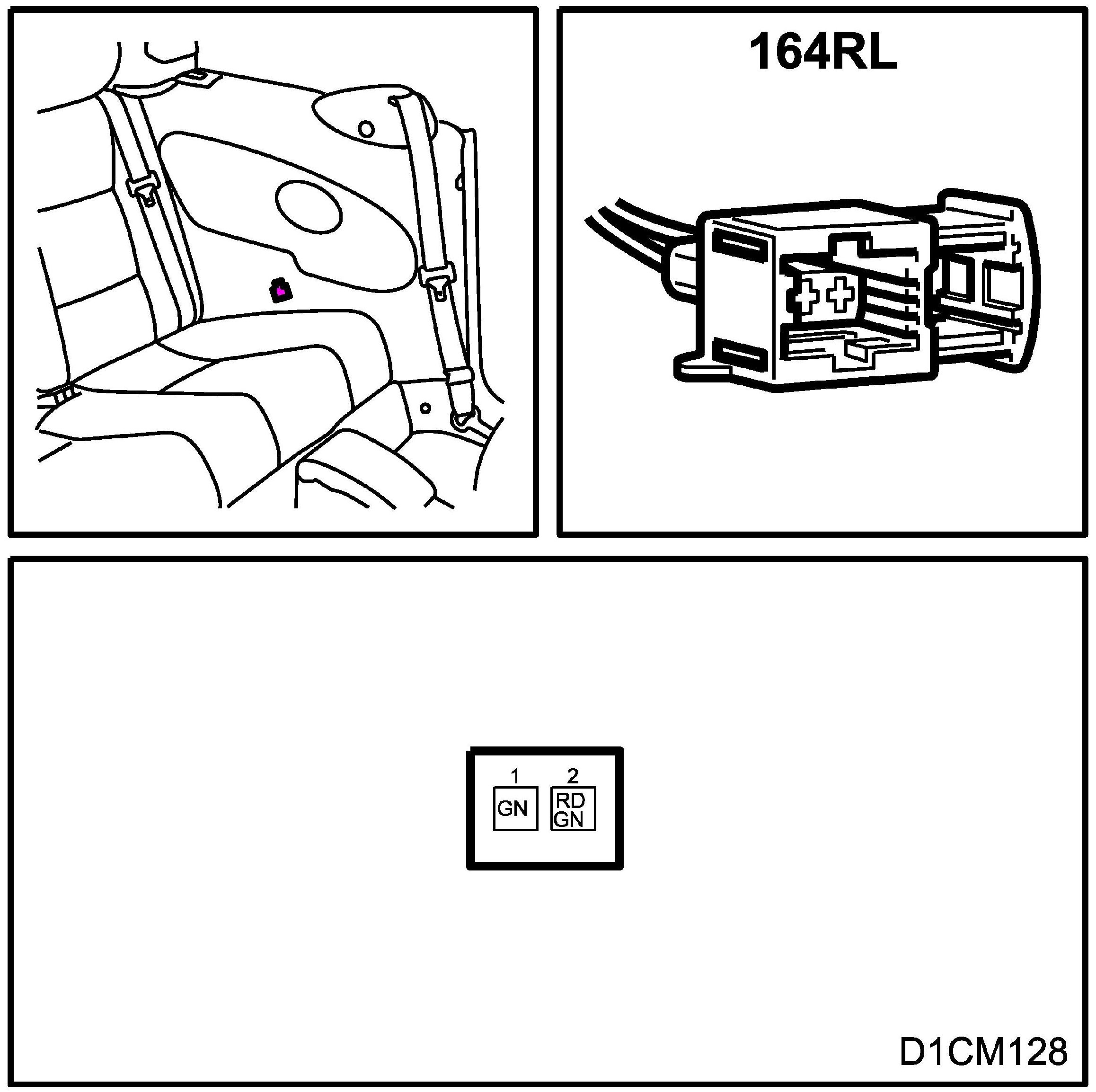

CV Motor, Rear Left Electric Window Lift (164RL)

CV Motor, Rear Left Electric Window Lift (164RL):
