9-3 Convertible (9400) L4-2.0L Turbo (B204)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Control Module
>>

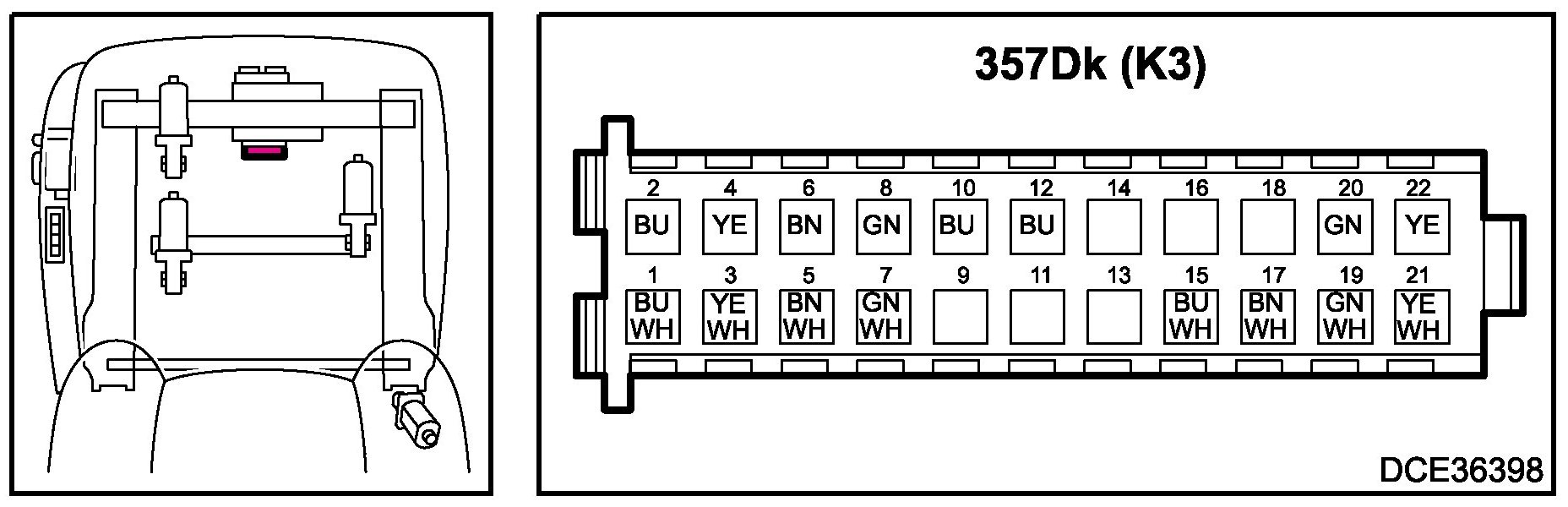

K3 Control Module, Electrically Adjustable Driver's Seat With Memory (357Dk)
K3 Control Module, Electrically Adjustable Driver's Seat With Memory (357Dk)
K3 Control Module, Electrically Adjustable Driver's Seat With Memory (357Dk):
