Home >> Saab >> 1999 >> 9-3 Convertible (9400) L4-2.0L Turbo (B204) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Instrument Panel, Gauges and Warning Indicators >> Driver/Vehicle Information Display >> Horn Relay (68)

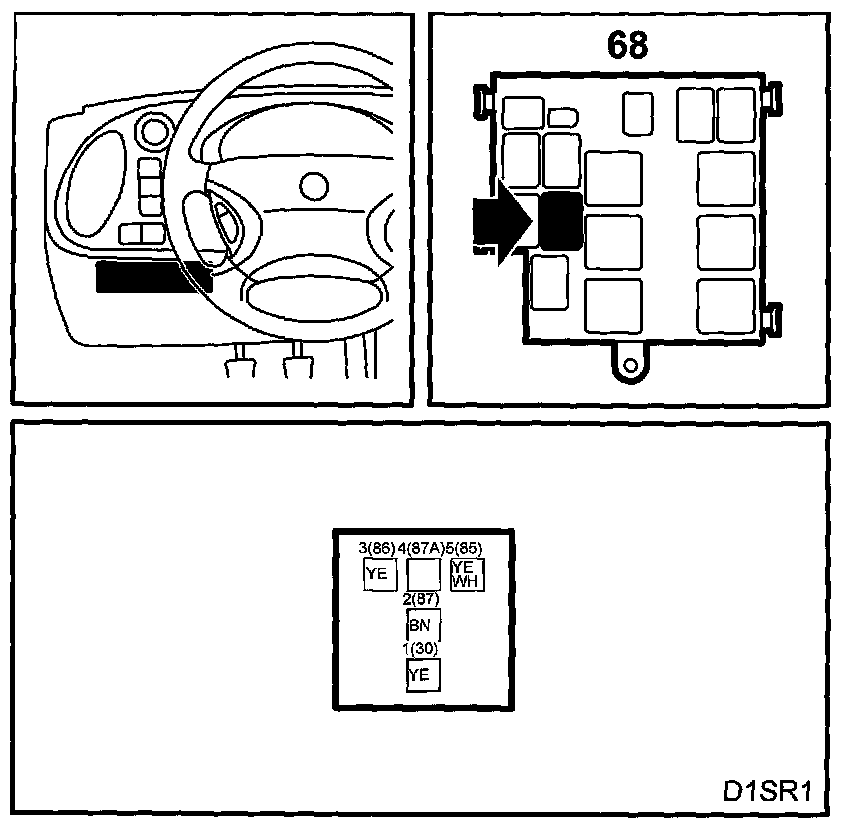

Horn Relay (68)

Horn Relay (68):
