Home >> Saab >> 1999 >> 9-3 Convertible (9400) L4-2.0L Turbo (B204) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Convertible Top Relay >> Relay, Hydraulic Pump, Push, Convertible (579a)

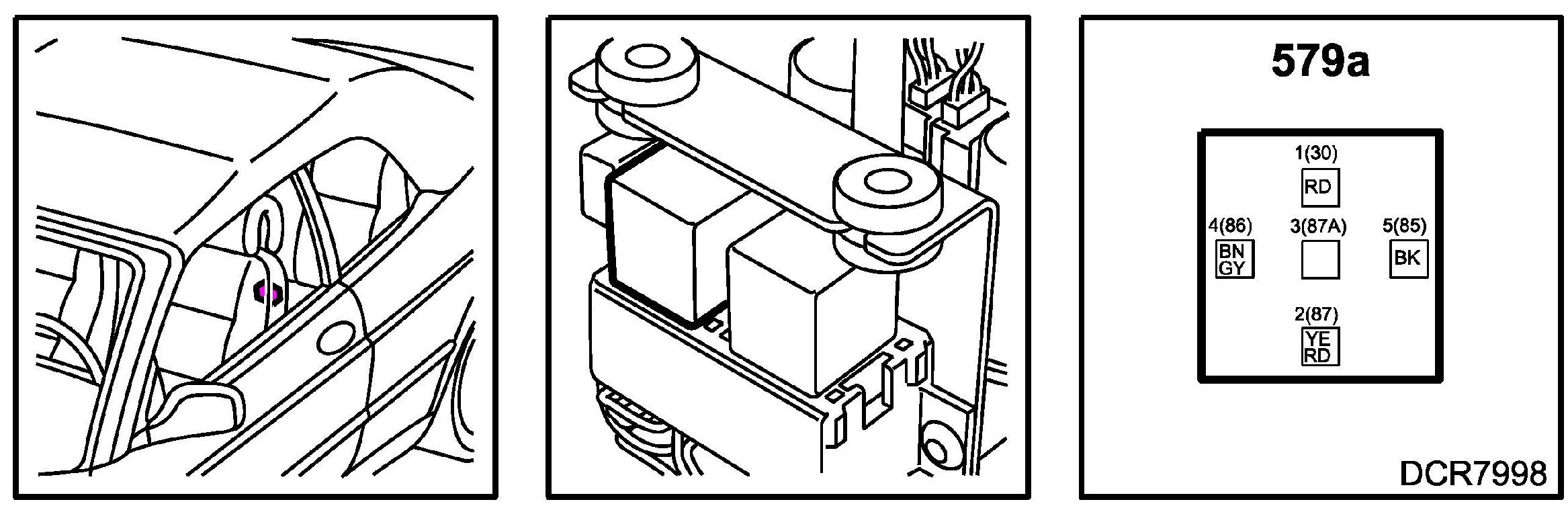

Relay, Hydraulic Pump, Push, Convertible (579a)

Relay, Hydraulic Pump, Push, Convertible (579a):
