9-3 Convertible (9400) L4-2.0L Turbo (B204)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Blower Motor
>>
Motor, Ventilation Fan (36)
Motor, Ventilation Fan (36)
Motor, Ventilation Fan (36):

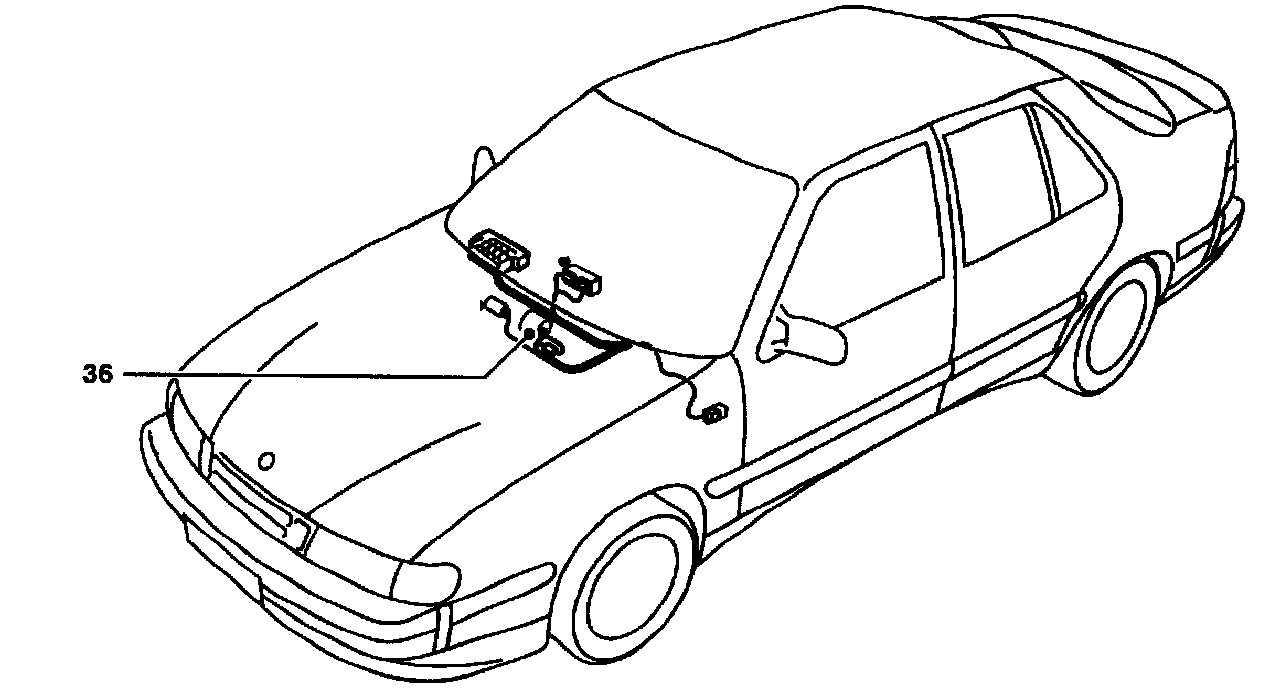

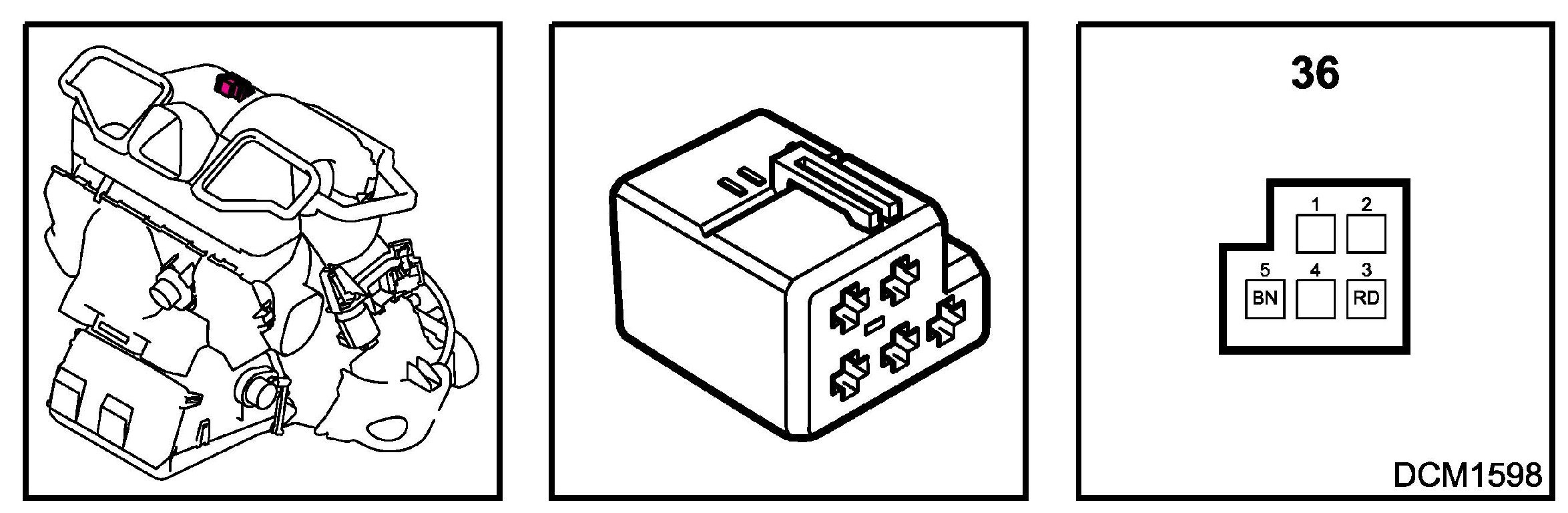

Component 36: Motor, Ventilation Fan, Located In The Fan Housing Between Evaporator Casing And Heater Housing And Underneath Outside Vent:
