System Overview

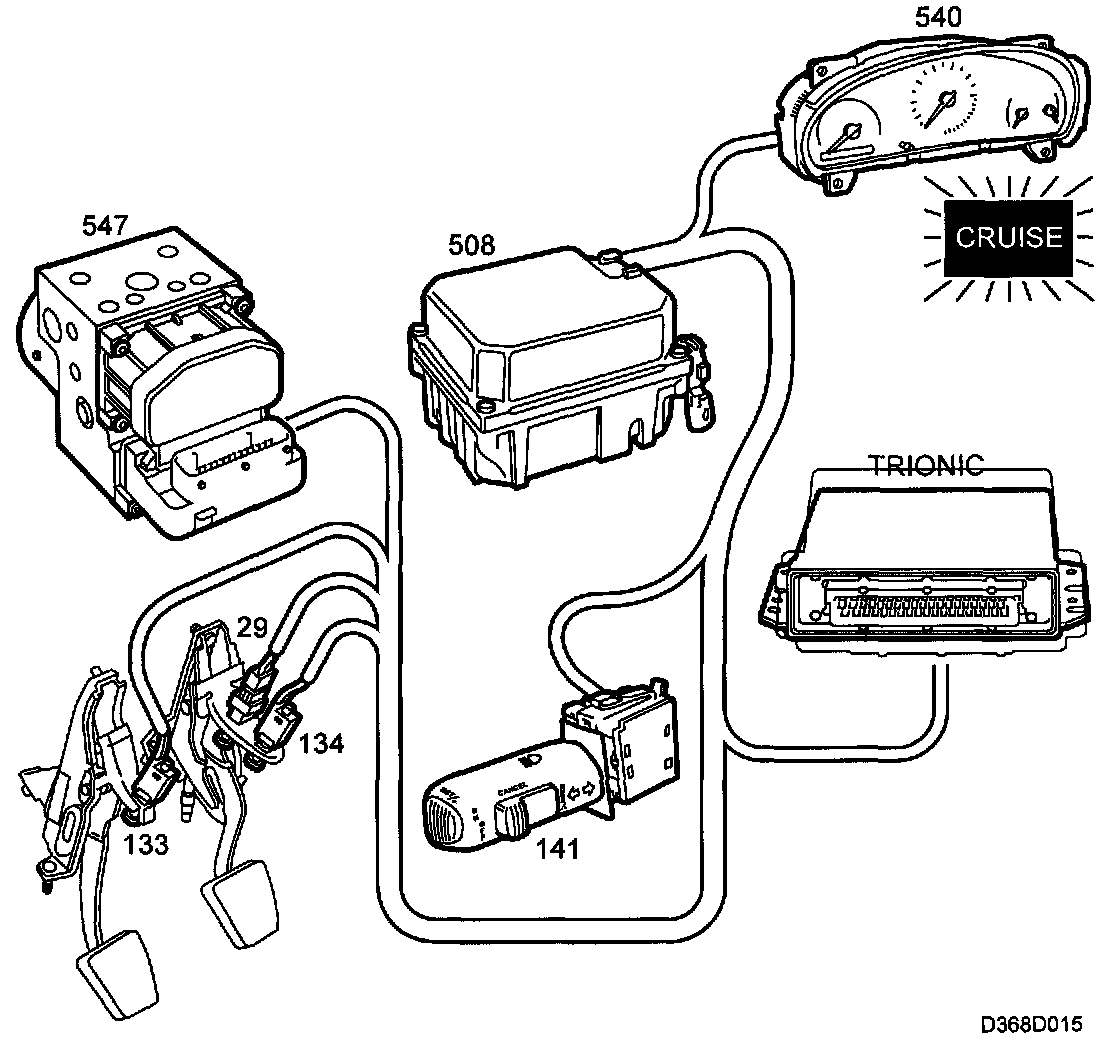

System Overview:

- Control module (508)
- Switch (141)
- Pedal switches, brake and clutch (134,133)
- Brake lights switch (29)
- Main instrument unit (540b)
- Vehicle speed signal from the ABS control module
- Cruise control signal active, to engine management system
