Cruise Control Servo Cable: Service and Repair

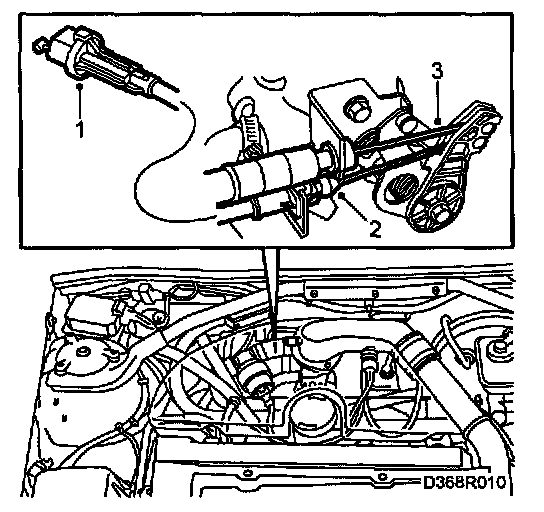

To remove







1. Remove the resonator or protective cover.
2. Detach the throttle cable and cruise control cable from the throttle body.
3. Remove the clip from the throttle body.
4. Detach the cable from the control module and twist it out of the clip.

To fit







1. Press the cable into the clip and connect it to the control module
2. Attach the clip to the throttle body.
3. Attach the throttle cable and cruise control cable to the throttle body.
4. Fit the resonator or protective cover.
