Control Module Outputs

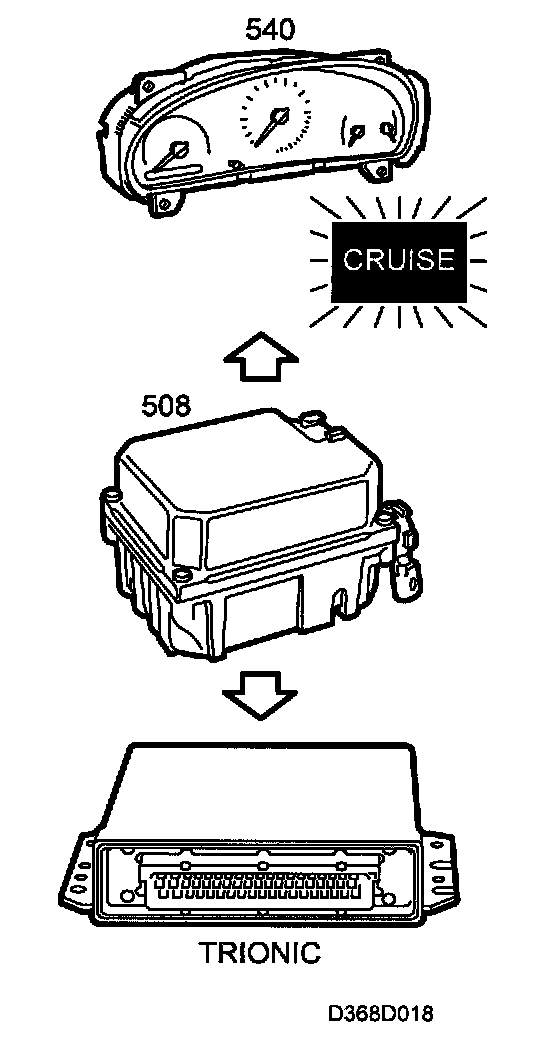

Control module outputs:






- CRUISE lamp in main instrument unit (540b), Checking the Cruise Lamp

- Communication with Trionic/Motronic (430/505),
