Home >> Saab >> 1999 >> 9-3 Convertible (9400) L4-2.0L Turbo (B204) >> Repair and Diagnosis >> Brakes and Traction Control >> Power Brake Assist >> Vacuum Pump >> Specifications >> Electrical Pump

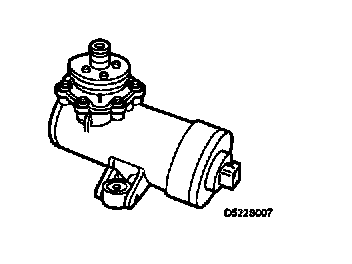

Electrical Pump







Manufacturer Pierburg PA66 GF30
Maximum rpm 4400 rpm
Maximum vacuum 0.8 bar
Resistance 1.45 ohms
Working voltage 12 volts
Current consumption 2.3 amps
