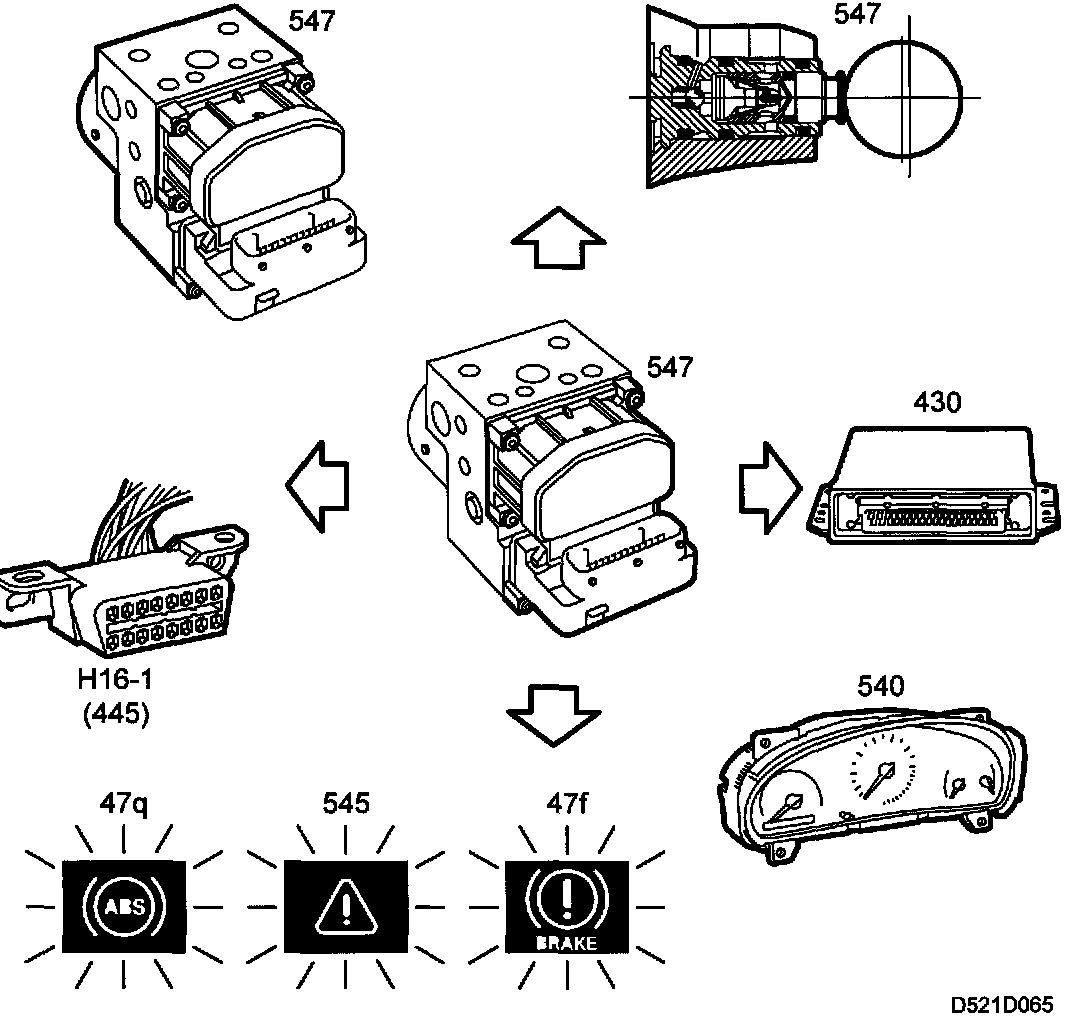

Control Module Outputs

^ Wheel speed, FR (430) Front-Wheel Sensors
^ Wheel speed, RL (540)Rear-Wheel Sensors
^ Return pump (547) Return Pump
^ ABS warning lamp on MIU (540) ABS Warning Light
^ Data link (445) Diagnostic Data Link
^ Wheel speed, FL (430/505/589/595) Front-Wheel Sensors
^ Inlet valve, FL (547) Valve Block
^ Outlet valve, FL (547) Valve Block
^ Inlet valve, RR (547) Valve Block
^ Outlet valve, FR (547) Valve Block
^ Inlet valve, RL (547) Valve Block
^ Outlet valve, RL (547) Valve Block
^ Inlet valve, RR (547) Valve Block
^ Outlet valve, RR (547) Valve Block
