Windscreen Frame Seal

Removing

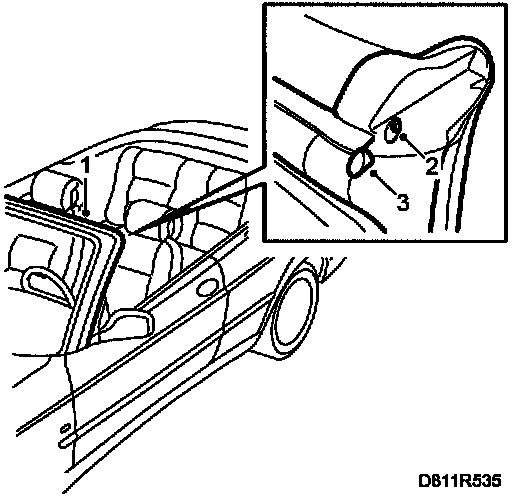

1 Remove the plugs from the windscreen frame seal.







2 Remove the bolts and remove the seal from the windscreen frame.

Fitting







1 Start to fit in both corners.
2 Tighten down the seal.
3 Fit the plugs.
4 Pull off the protective backing from the double-backed tape and start to fit the seal at the bottom of the A-pillar and continue upwards to the corner.
5 Continue fitting from the middle of the windscreen top edge and out towards the edges. Use soapy water to facilitate fitting.
6 Check the fit against the front seal. Adjust the front seal if needed.
