Door Window Front Seal

Removing
1 Remove the door mirror.
2 Remove the door upholstery.
3 Remove the inner window seal.

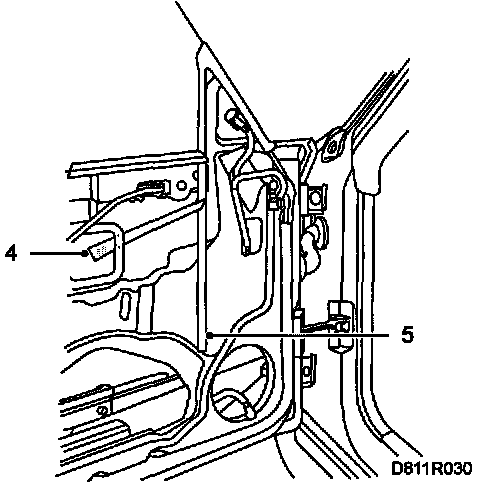

4 Loosen the outer window seal at the front edge.
5 Remove the seal for the rear-view mirror mounting.

Fitting

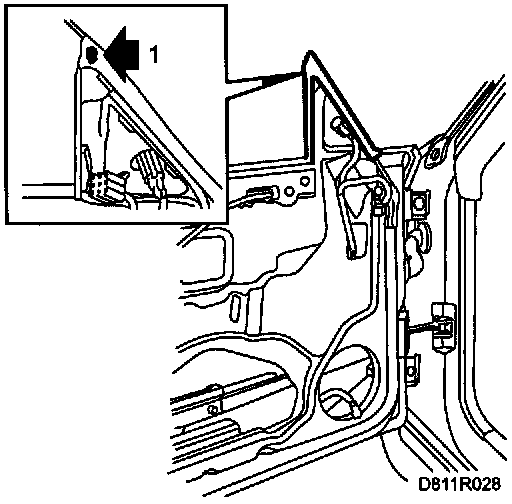

1 Fasten the new seal at the point of the sheet metal flange. Use adhesive 30 08 075 3M Super Weatherstrip.


IMPORTANT
Wipe dry the window channel before starting to apply adhesive.

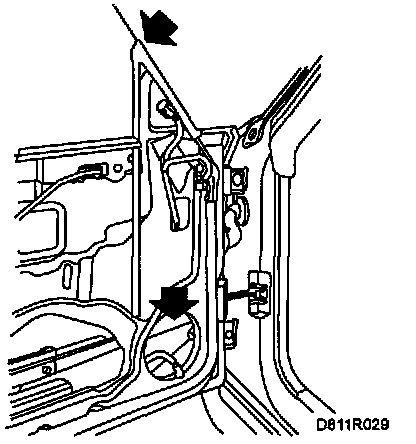

2 Press down the seal in the window channel.







3 Raise the window and pull down the seal so that it seals around the front edge of the window.







4 Turn up the seal and apply adhesive 30 08 075 3M Super Weatherstrip to the lower part.
5 Fasten the seal with adhesive.
6 Fit the inner and outer window seal on the door.
7 Fit the door mirror.
