Convertible Top Weatherstrip: Adjustments

Adjusting Seals

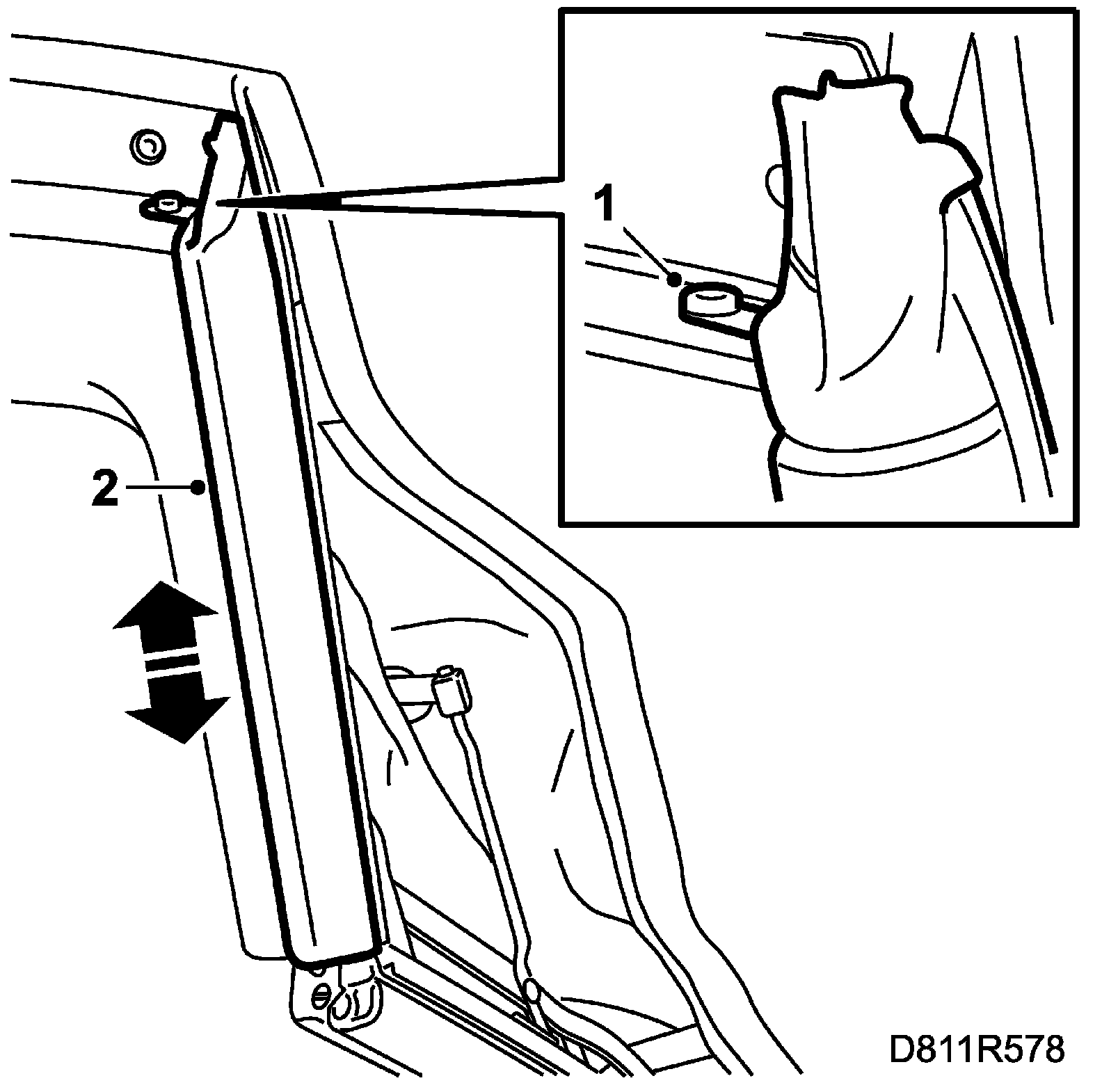

Front seal







The front seal can be adjusted laterally at the front edge.
1. Loosen the screw securing the retainer.
2. Adjust laterally and tighten the screw.
3. Check the fit against the windscreen frame seal.
4. Check so that there is no water leakage by spraying water from above at an angle.
Never use high pressure.
