Electrically Controlled Seat Cannot Be Operated When the Right Rear Door Is Opened

Power Seat Cannot Be Operated When Right Rear Door Is Opened







Fault symptoms

The seat cannot be operated when the right rear door is open and the ignition is off.

Probable cause of fault

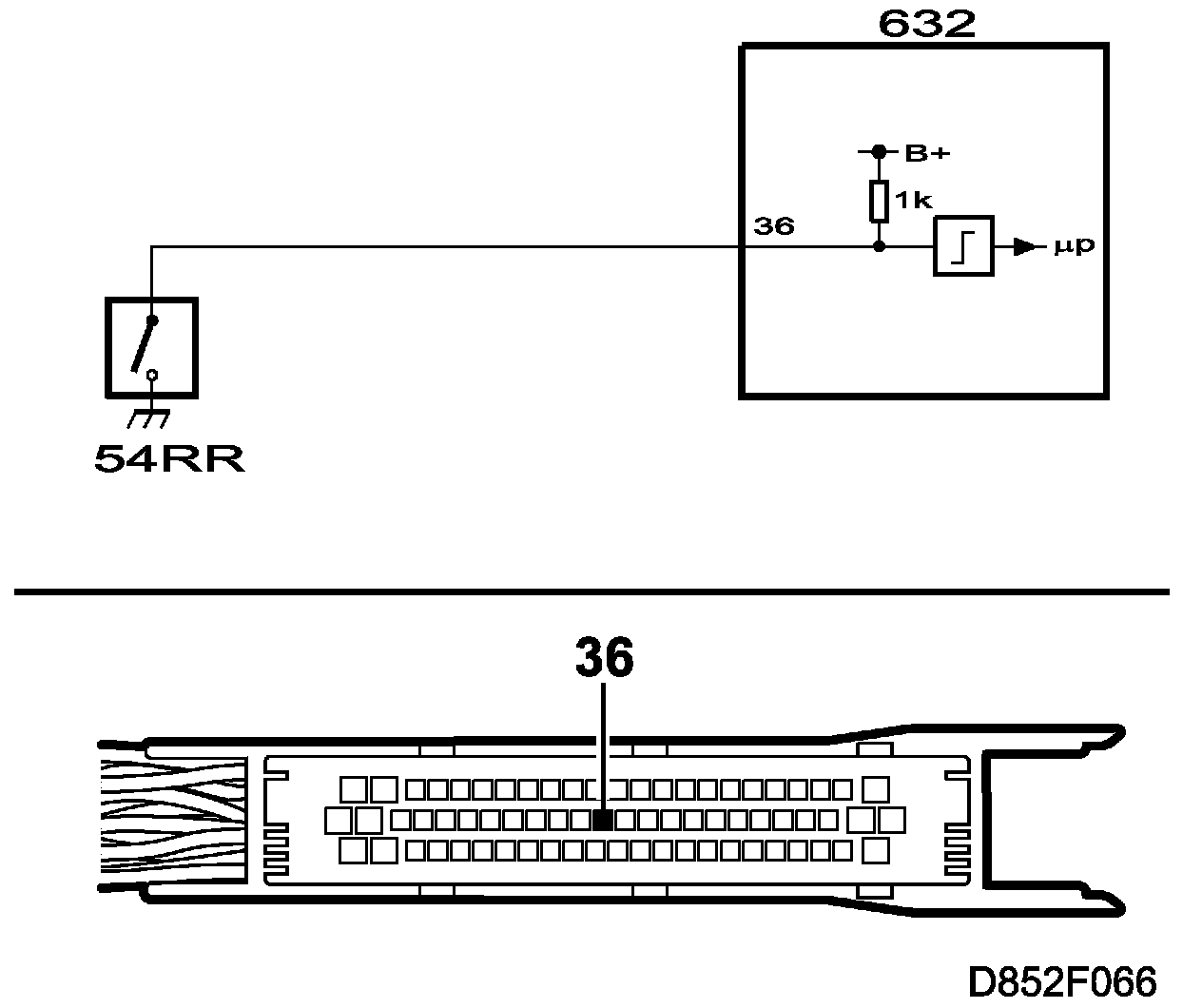

Faulty door contact or faulty lead from door contact to TWICE.

Check the wiring

Jiggle the wiring harness in several places and in various directions to detect intermittent open circuits and short circuits in the wiring harness. Watch the multimeter, diagnostic tool and test lamp during the check.
