Backrest, 60-Percent

Backrest, 60-percent

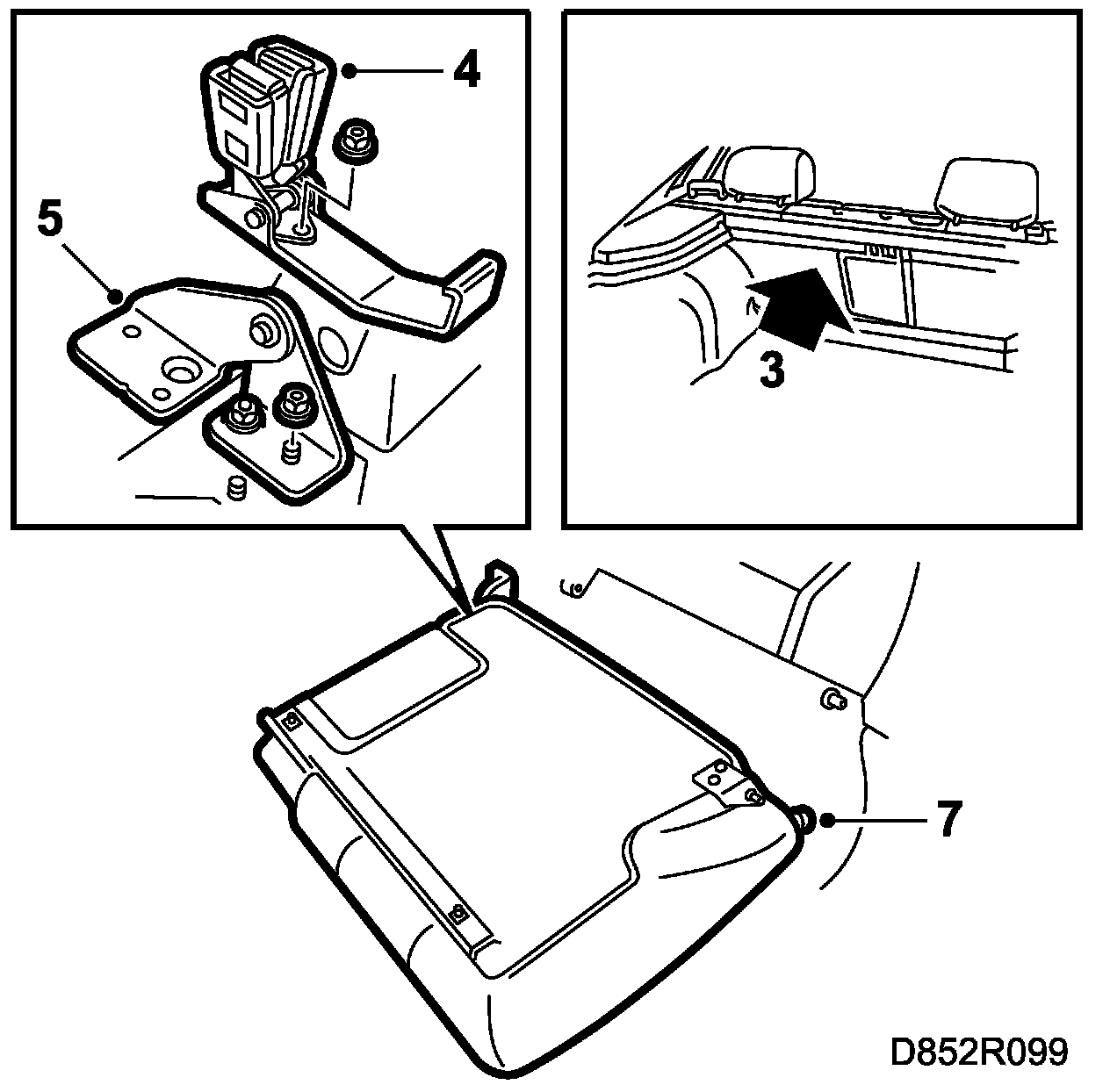

To remove







1. Remove the 40 per cent part.
2. Release the backrest from the seat-belt member.
3. Fold forward the backrest.
4. Remove the centre seat-belt mounting to access the right-hand backrest mounting.
5. Remove the right-hand backrest mounting.
6. Pull out the free end of the backrest and remove the joint pin from its mounting by the wheel housing.
7. Detach the upholstery tensioner and lift out the backrest.

To fit

Fit in reverse order

NOTE: When fitting the centre seat-belt mounting, the upper and lower parts must be located in each other and a locating stud in the floor.
