Backrest, 40-Percent

Backrest, 40-percent

To remove

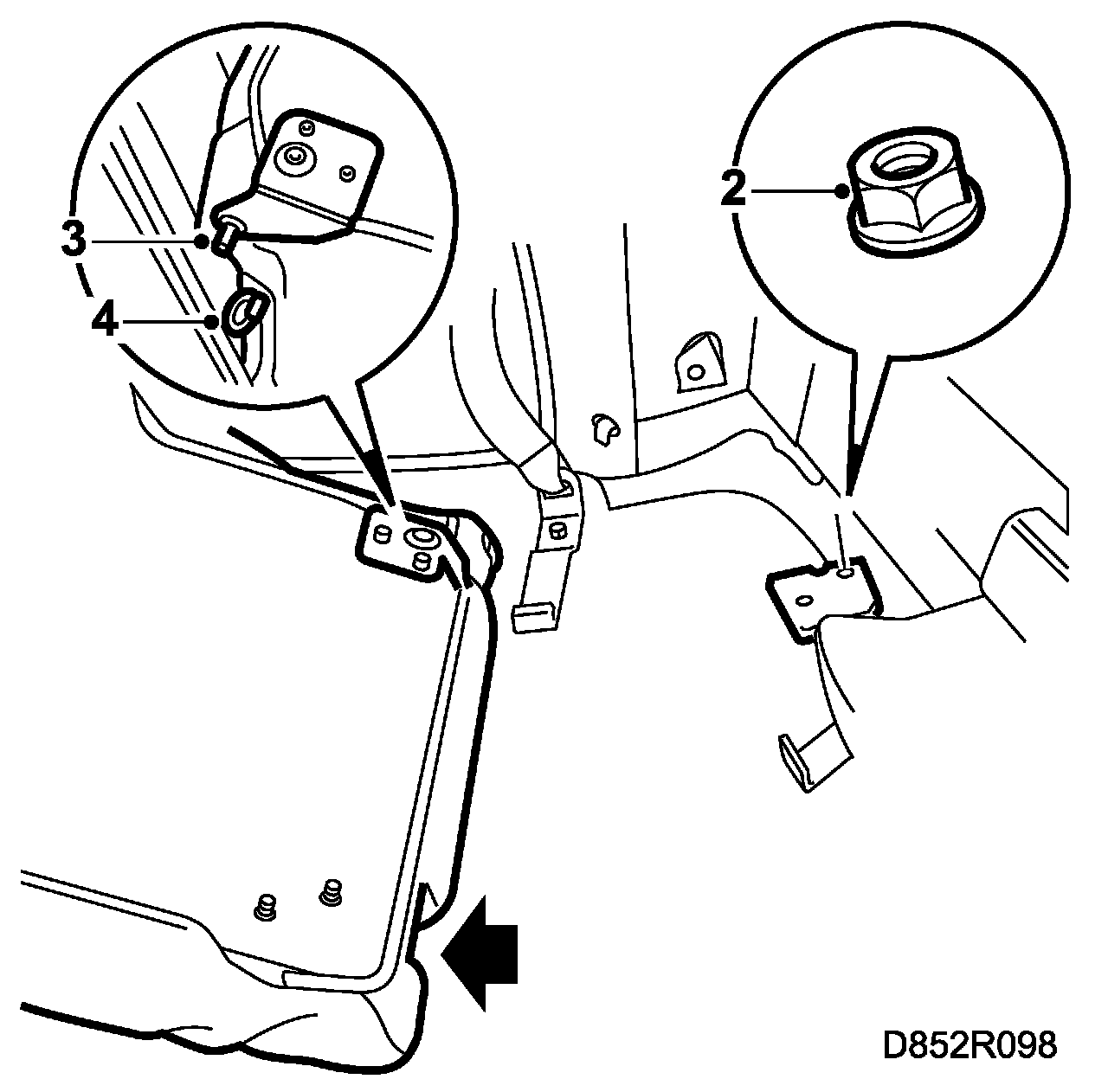

1. Release the backrest from the seat-belt member and fold it forwards.
2. Undo the bracket on the long load opening.
3. Pull the backrest away from the mounting by the long load opening and pull out the joint pin at the wheel housing.
4. Detach the upholstery tensioner and lift out the backrest.

To fit

Fit in reverse order
