Backrest Upholstery, CV

Backrest Upholstery, CV

To remove

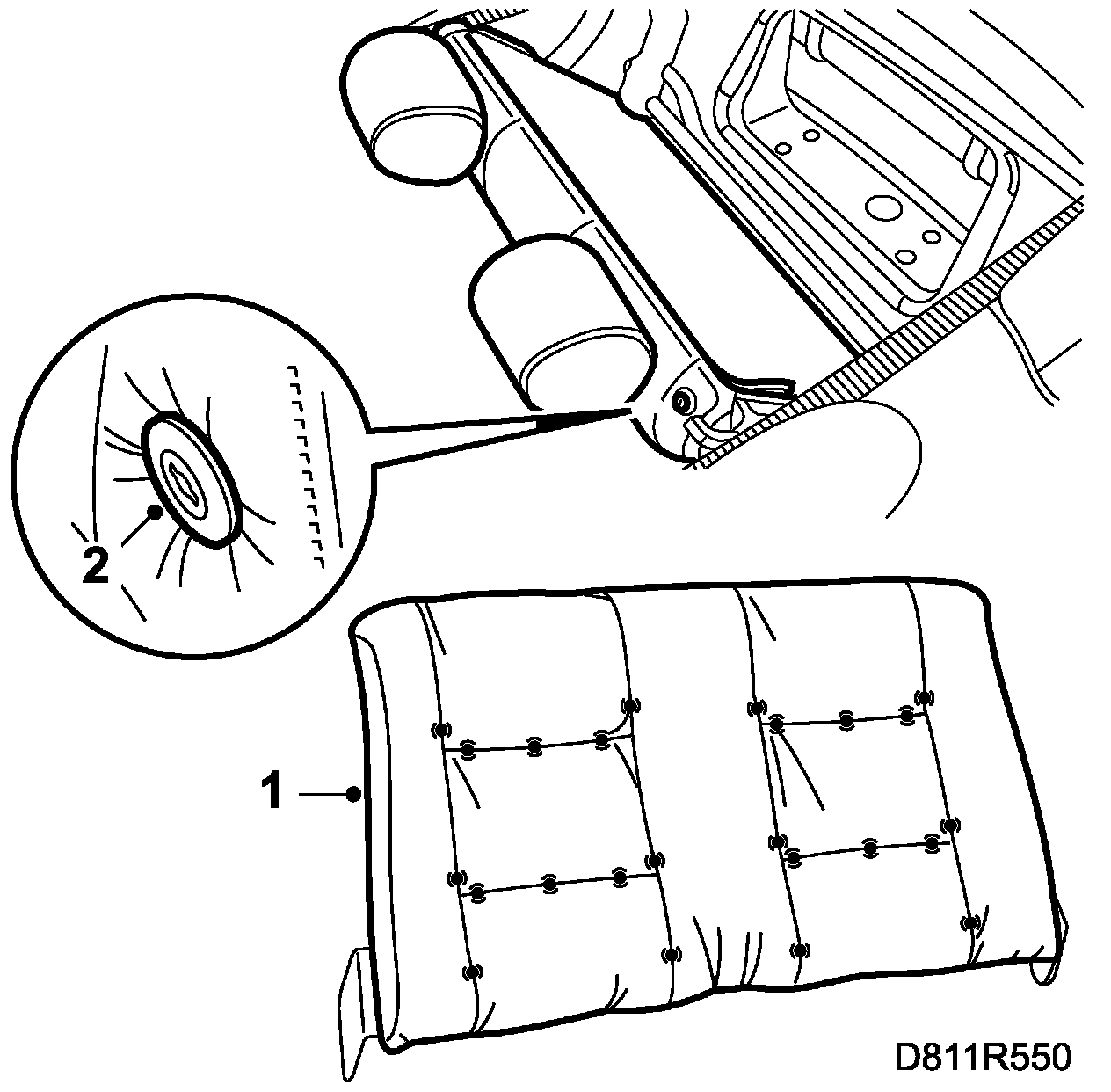

1. Lift out the backrest cushion from the car.
2. Remove the upholstery from the rear of the backrest cushion.

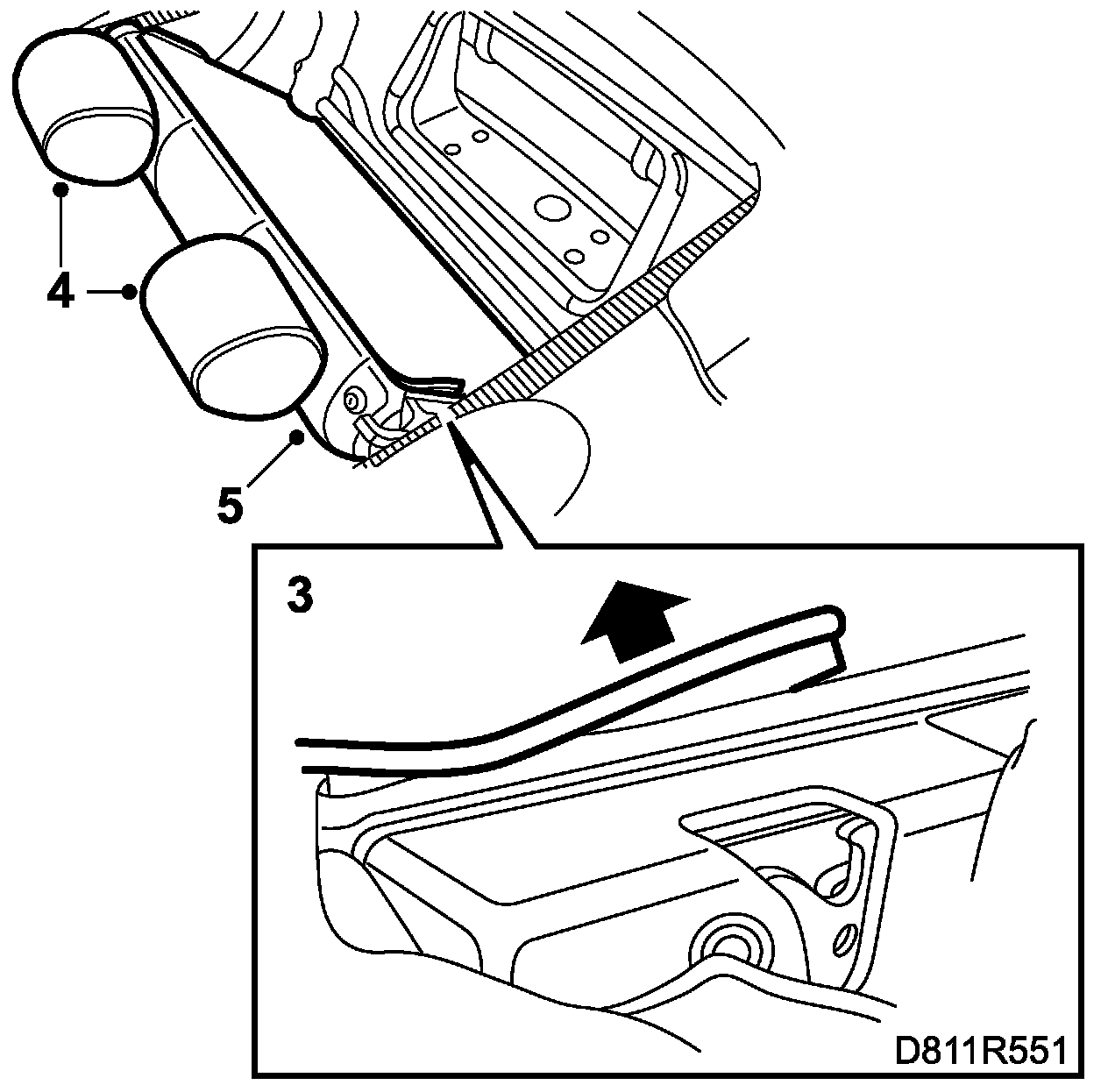

3. Remove the head restraints.
4. Loosen the upholstery by the lock.







5. Loosen the upholstery from the staples and lift away the upholstery.

To fit







1. Fit the upholstery and hook on the staples.
2. Fit the upholstery by the lock cylinder.
3. Refit the upholstery on the rear of the backrest cushion.

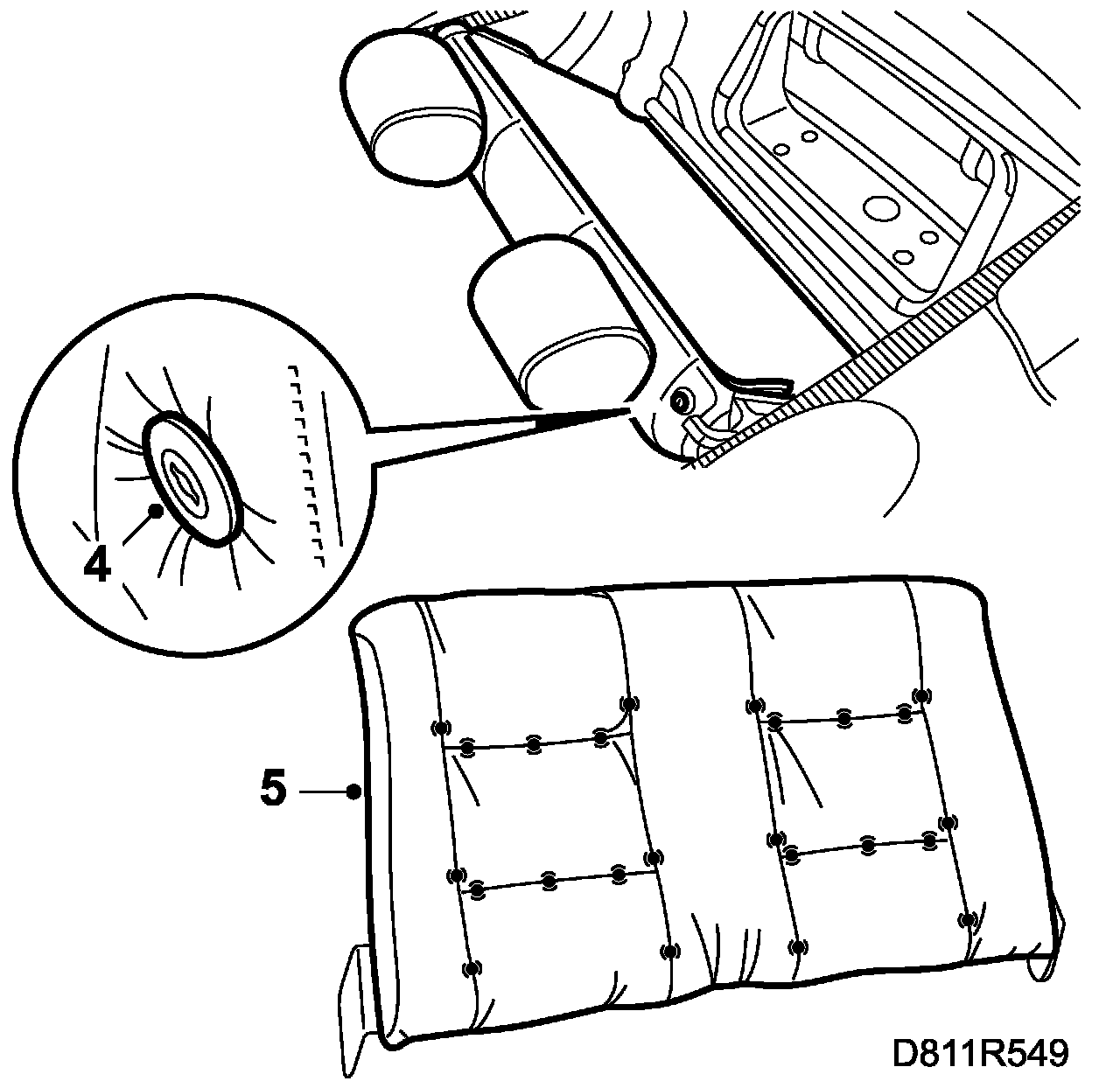

4. Refit the head restraints.
5. Put the backrest cushion in place in the car.
