Backrest Cushion, CV

Backrest Cushion, CV

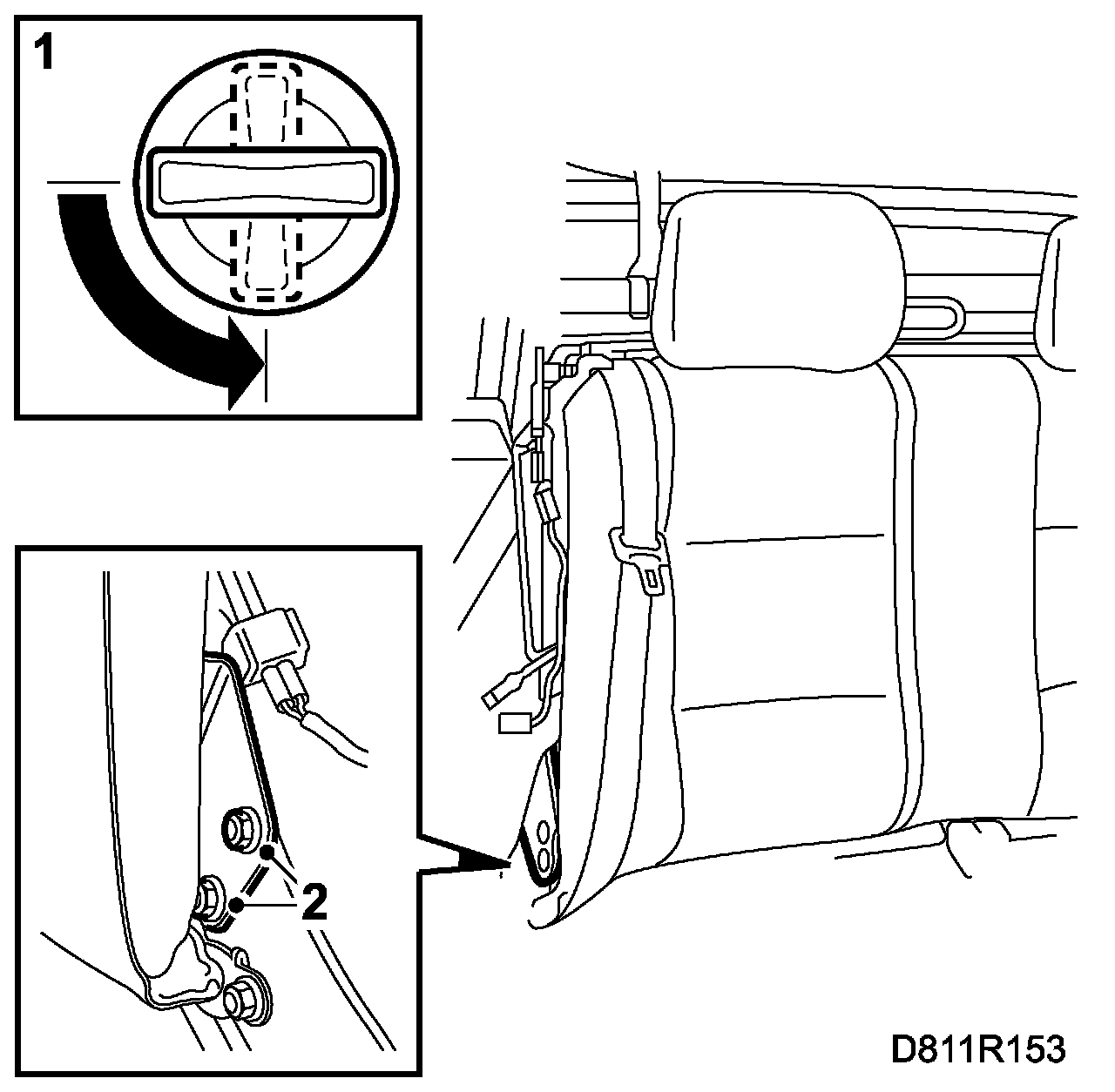

To remove







1. Remove the rear side trim.
2. Remove the bolts securing the backrest cushion.
3. Unlock the backrest cushion and remove it.

To fit







1. Fit the backrest cushion and raise it completely.
2. Tighten the bolts securing the backrest cushion.
3. Refit the side trim.
