Seat Side Panel

Seat Side Panel

To remove

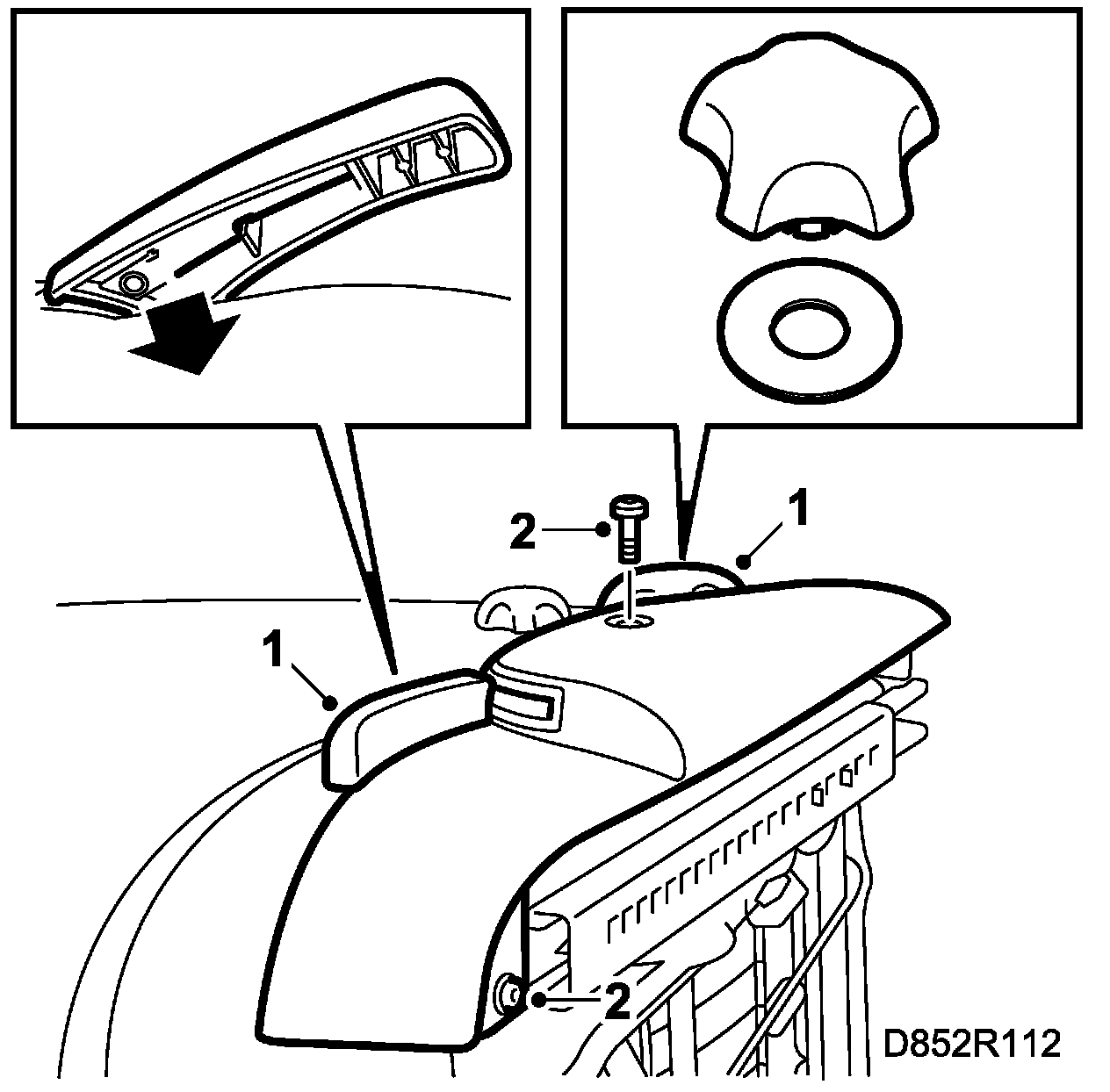

1. Manual seat: Remove the handle for the height adjustment and the backrest recliner knob.
2. Remove the seat side panel, 2 caps and 3 screws. Lift the back of the side panel and pull it forwards.

NOTE: Electrically adjustable seat: The front bolt has a protector on its tip. Retain this protector as it must be fitted to the bolt to prevent it from chafing against electrical wiring.

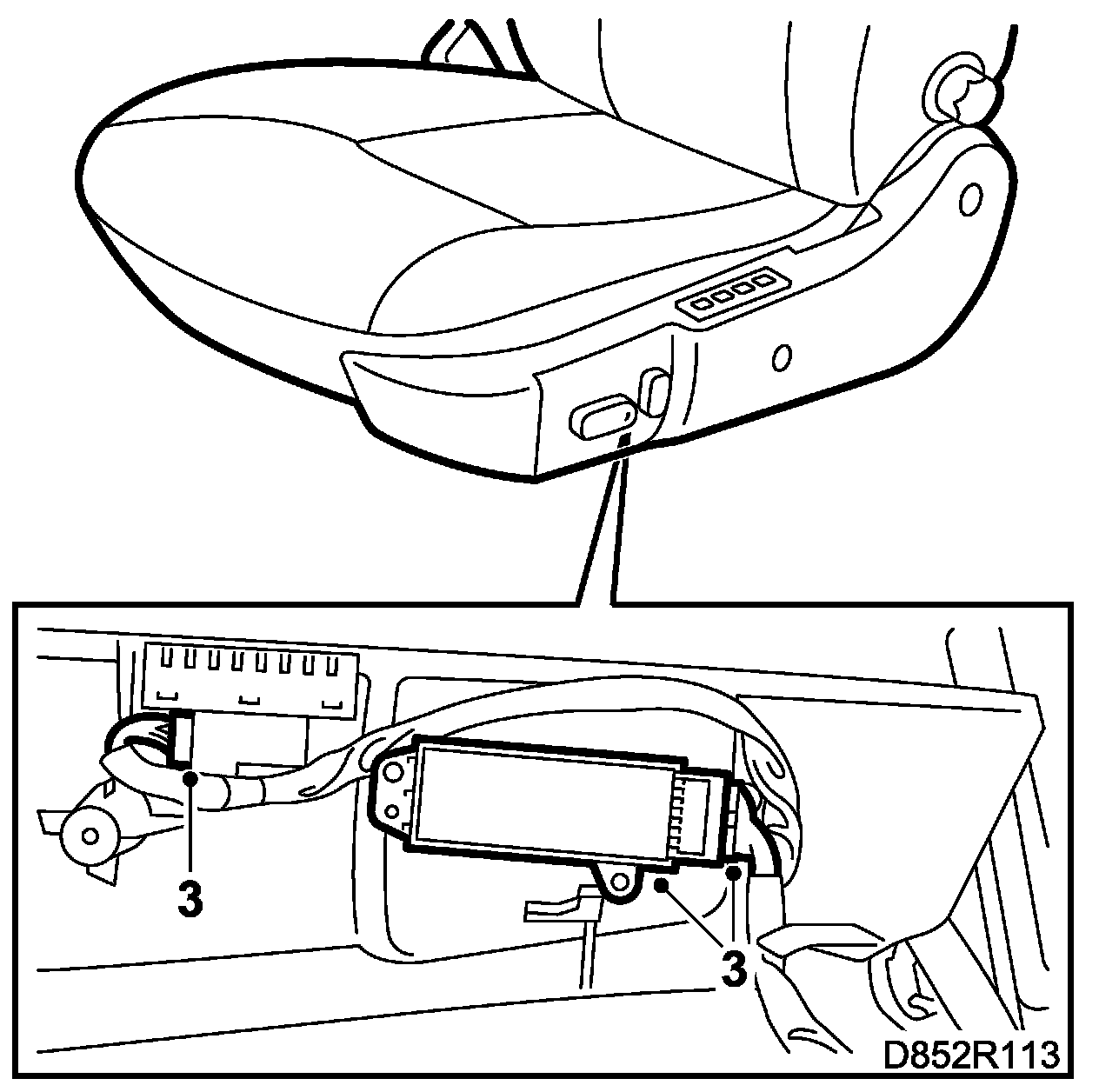

3. Electrically adjustable front seat: Detach the connector for the switch and any memory buttons.







To fit

Fit in reverse order.

IMPORTANT: Electrically adjustable seat: Fit the protection on the front bolt.
