Lumbar Support Adjustment

Lumbar Support Adjustment

To remove







1. Remove the backrest upholstery.
There is no need to remove the head restraints, staples or any connectors for the backrest adjustment.

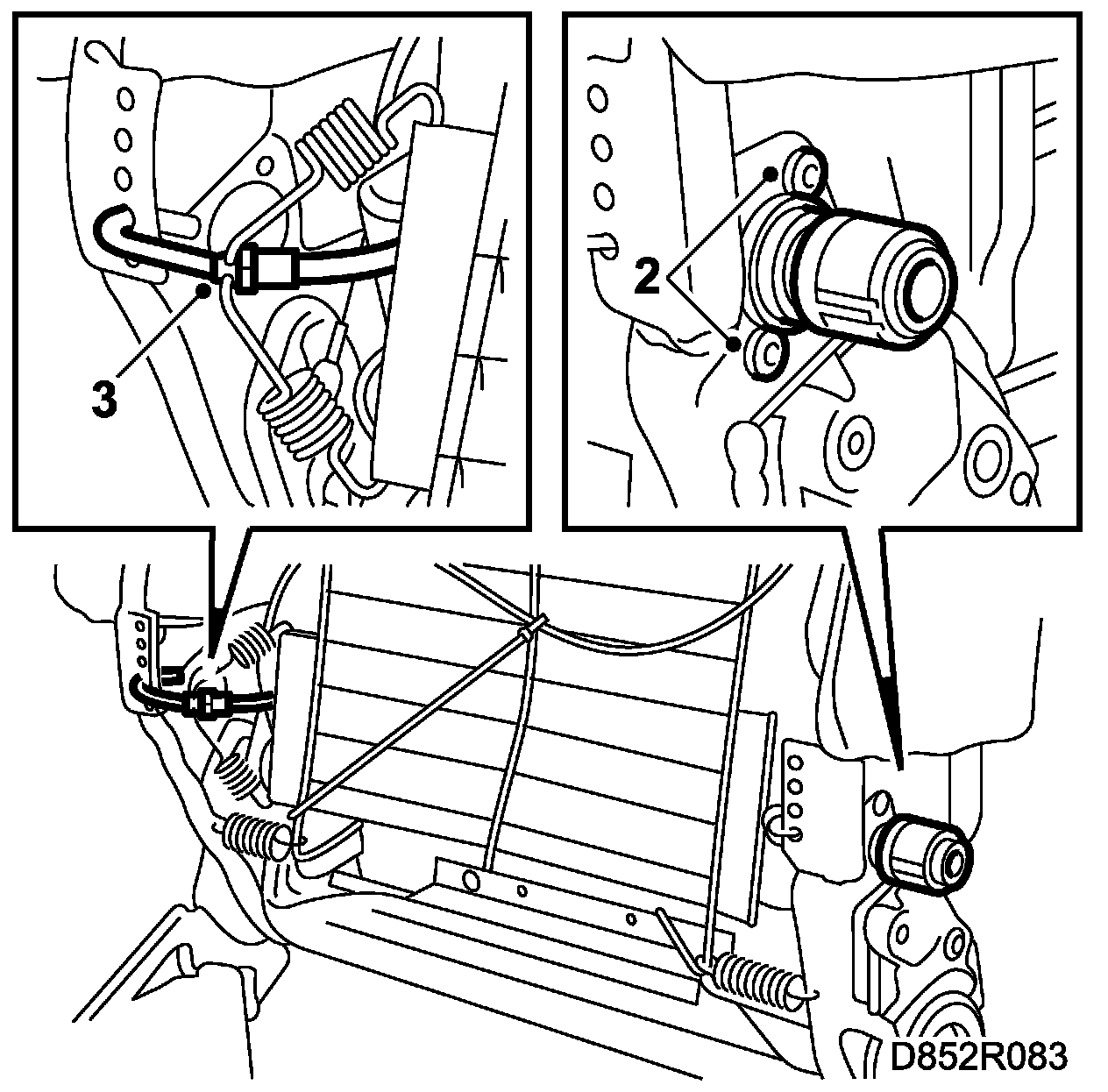

2. Remove the lumbar support mechanism, 2 screws.
3. Detach the hook holding the wire on the opposite side.
Undo the clip holding the wire.

4. Lift out the lumbar support mechanism.

To fit

Fit in reverse order.
