Height Adjustment, Manual Seat

Height Adjustment, Manual Seat

To remove

1. Remove the front seat from the car.

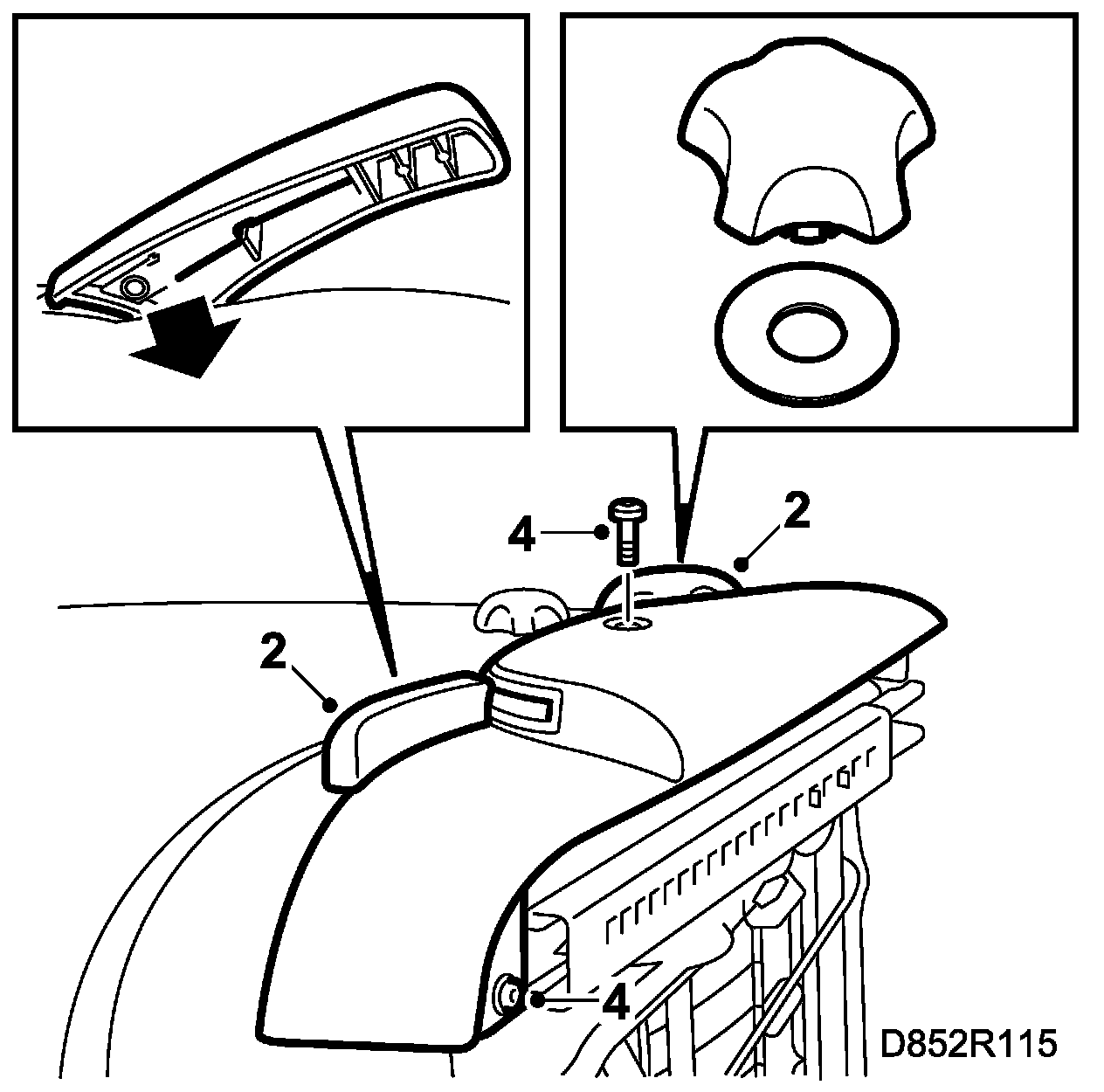

2. Remove the height adjustment lever and backrest adjustment knob under the frame at the front.







3. Raise the seat to maximum height.
4. Remove the upper seat side panel, 2 caps and 3 screws.
Electrically adjustable seat: The front bolt has a protector on its tip. Retain this protector as it must be fitted to the bolt to prevent it from chafing against electrical wiring.
Lift the back of the side panel and pull it forwards.

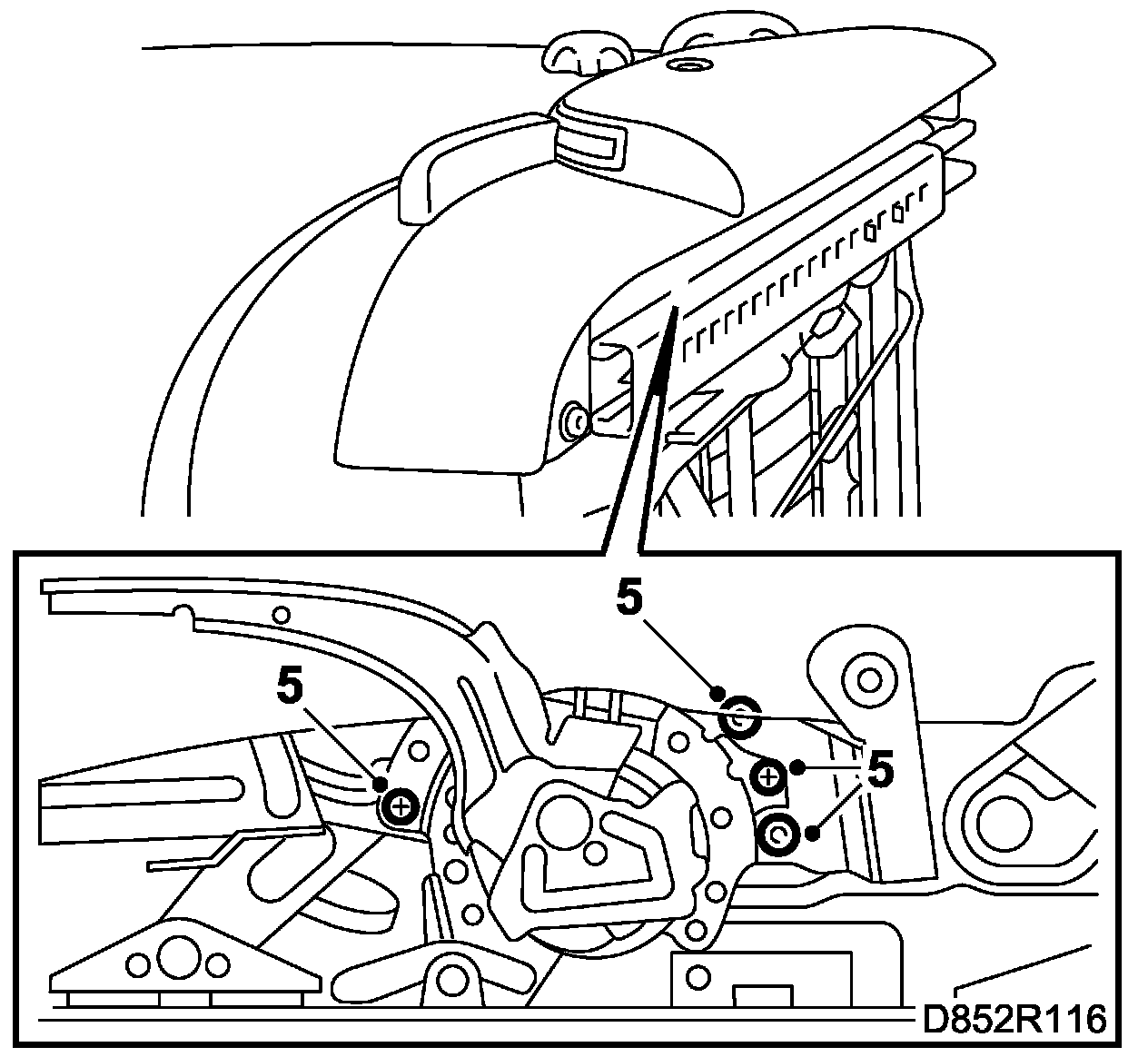

5. Remove the height adjustment mechanism from the frame, 4 screws.







To fit

Fit in reverse order.

IMPORTANT: Electrically adjustable seat: Fit the protection on the front bolt.

NOTE: For ease of fitting, the seat can be pressed down when the height adjustment mechanism is inserted.

Fit the seat.
