Heating Pad, Rear Seat

To remove







1 Remove the seat upholstery.
2 Remove the seat heater connector from the holder in the metal plate and unplug the connector.
Use special tool part no. 85 80 110.

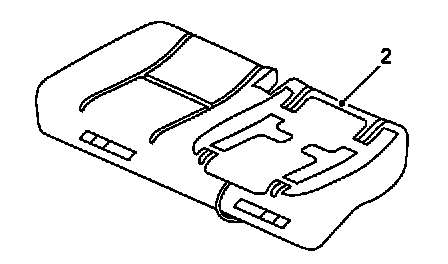

3 Detach the heating pad from the seat cushion using benzine.
Be careful to ensure that large pieces of padding do not come away.


NOTE: Wear gloves when working with benzine.


To fit
Fit in reverse order.
