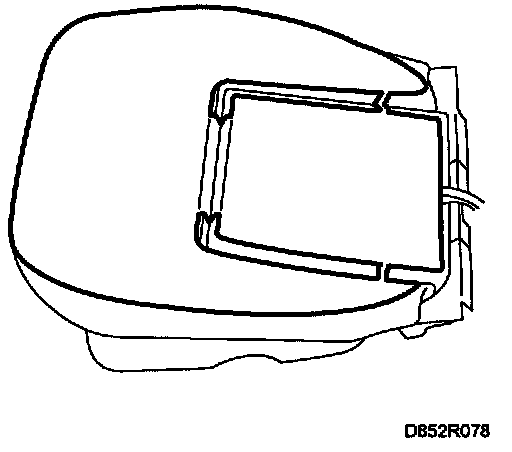

Heating Pad, Front Seat Cushion

To remove







1 Remove the seat upholstery.
2 Detach the heating pad from the seat cushion using benzine. Be careful to ensure that large pieces of padding do not come away.


NOTE: Wear gloves when working with benzine.


3 Unplug the connector for the heating pad.

To fit
Fit in reverse order
