Heating Pad, Backrest

To remove







1 Remove the backrest upholstery.
There is no need to remove the head restraint, staples or any connectors for the backrest adjustment.

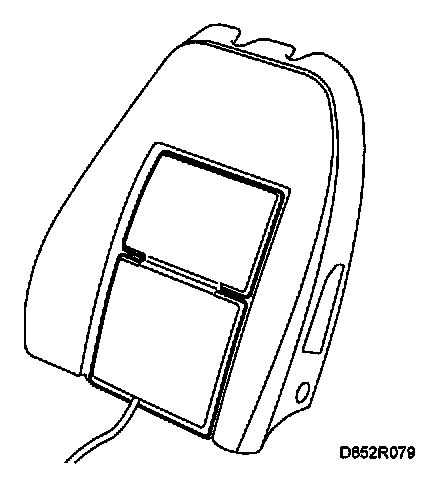

2 Detach the heating pad from the seat cushion using benzine.
Be careful to ensure that large pieces of padding do not come away.


NOTE: Wear gloves when working with benzine.


3 Unplug the connector for the heating pad.

To fit
Fit in reverse order.


NOTE: Ensure that the wiring harness sits correctly.
