Seat Cushion, Rear Seat

To remove

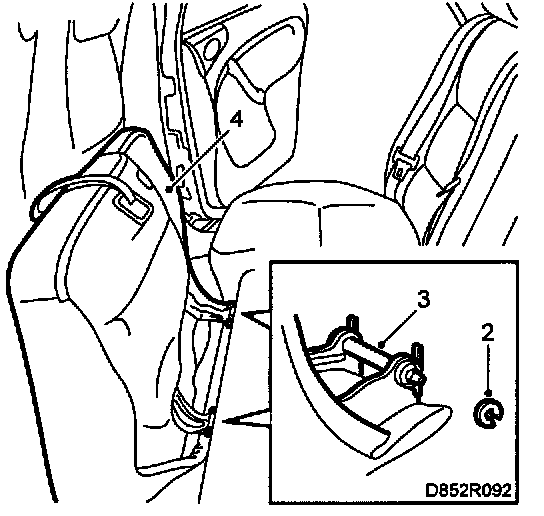

1 Put the seats in an upright position (both the 60 and 40-percent parts).
2 Remove the lock clip on the hinge pins.
3 Tap out the 4 pins from the hinges, 2 on each seat.
4 Lift out the seats.

To fit
Fit in reverse order


NOTE:
Insert the hinge pins on the 60-percent part and the outer pin on the 40-percent part from right to left. The inner pin on the 40-percent part is inserted from left to right.
