Upholstery, Rear Seat

Upholstery, Rear Seat

To remove

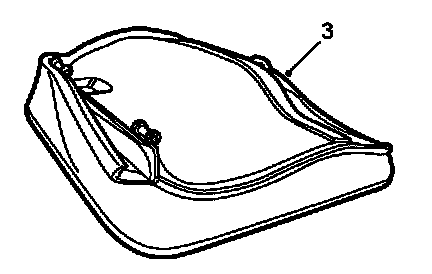

1 Remove the seat cushions,
2 Lay the cushions face down on workbench with protective covering.
3 Detach the bottom of the upholstery, towards the hinge, by hand. Pull straight up and continue around the whole of the bottom.
The upholstery is secured with a fastening strip sewn into it.

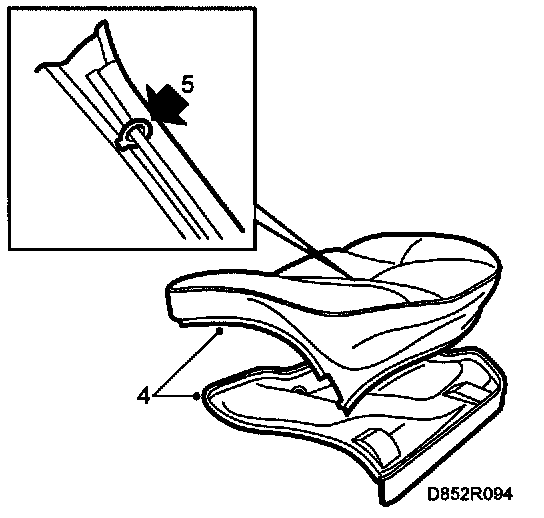

4 Turn over the seat and lift off the upholstery and padding from the bottom.







5 Detach the upholstery from the padding by cutting the staples.

To fit
Fit in reverse order.


NOTE: Fasten the upholstery to the padding with staples using the pliers included in the fitting kit.
