Long-Load Opening Hatch

Long-load Opening Hatch:

To remove
1 Remove the centre armrest.
2 Open the long-load hatch.

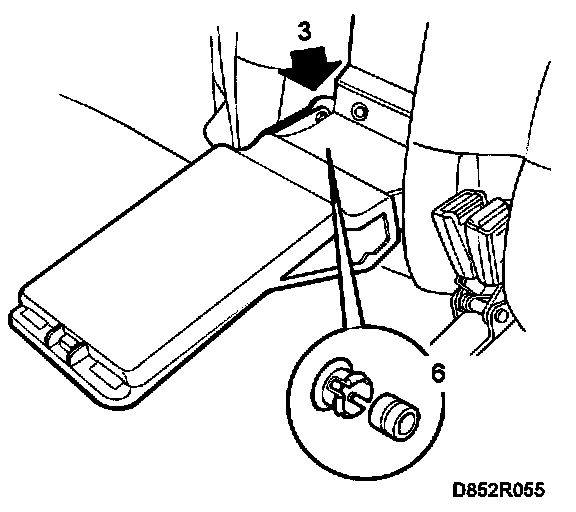

3 Press down the padding at the bottom of the long-load opening so that the mountings for the hatch become accessible, one mounting on each side of the hatch.
4 Press out the bushes in the centre of the joint with a chisel, pressing them in towards the hatch.
5 Release the joint sleeve (a plastic bush with hooks) with a pair of pliers and press them out.
6 Lift out the long-load opening hatch.

To fit
Fit in reverse order.
