Motor and Sensor, Legroom Adjustment

Motor And Sensor, Legroom Adjustment

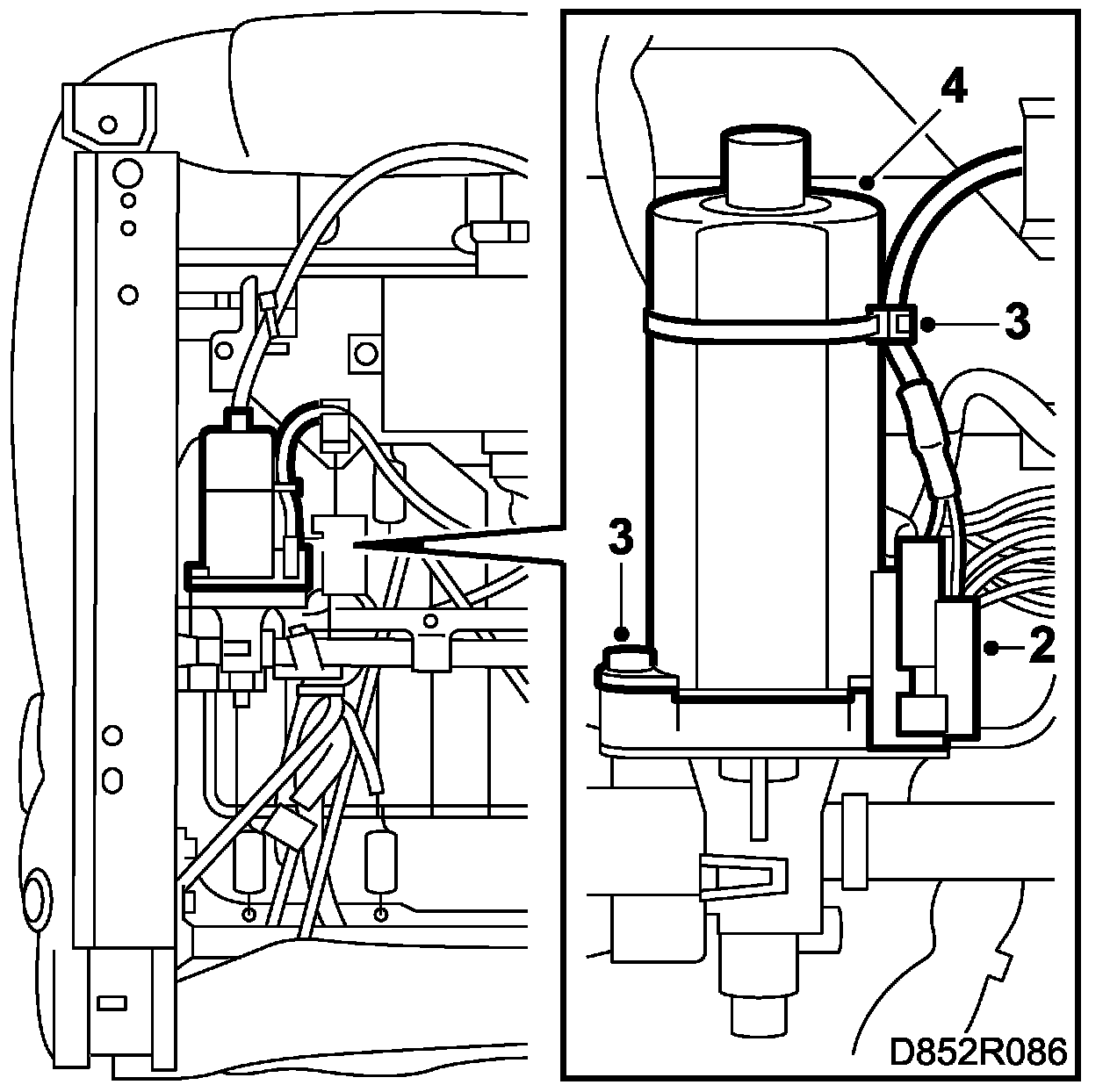

To remove







1. Remove the front seat from the car.
2. Unplug the connector for the legroom adjustment motor.
3. Remove the motor for the legroom adjustment, 2 screws and cable tie.
4. Lift the motor off the gear wheel.

To fit

Fit in reverse order.
