PSM Control Module Inputs, I-Bus

PSM Control Module Inputs, I-bus







- Driver Door (open/closed) from TWICE (632)
- Passenger Door (open/closed) from TWICE (632)
- Power supply +54 from DICE (628)
- Diagnostic communication from DICE (628)

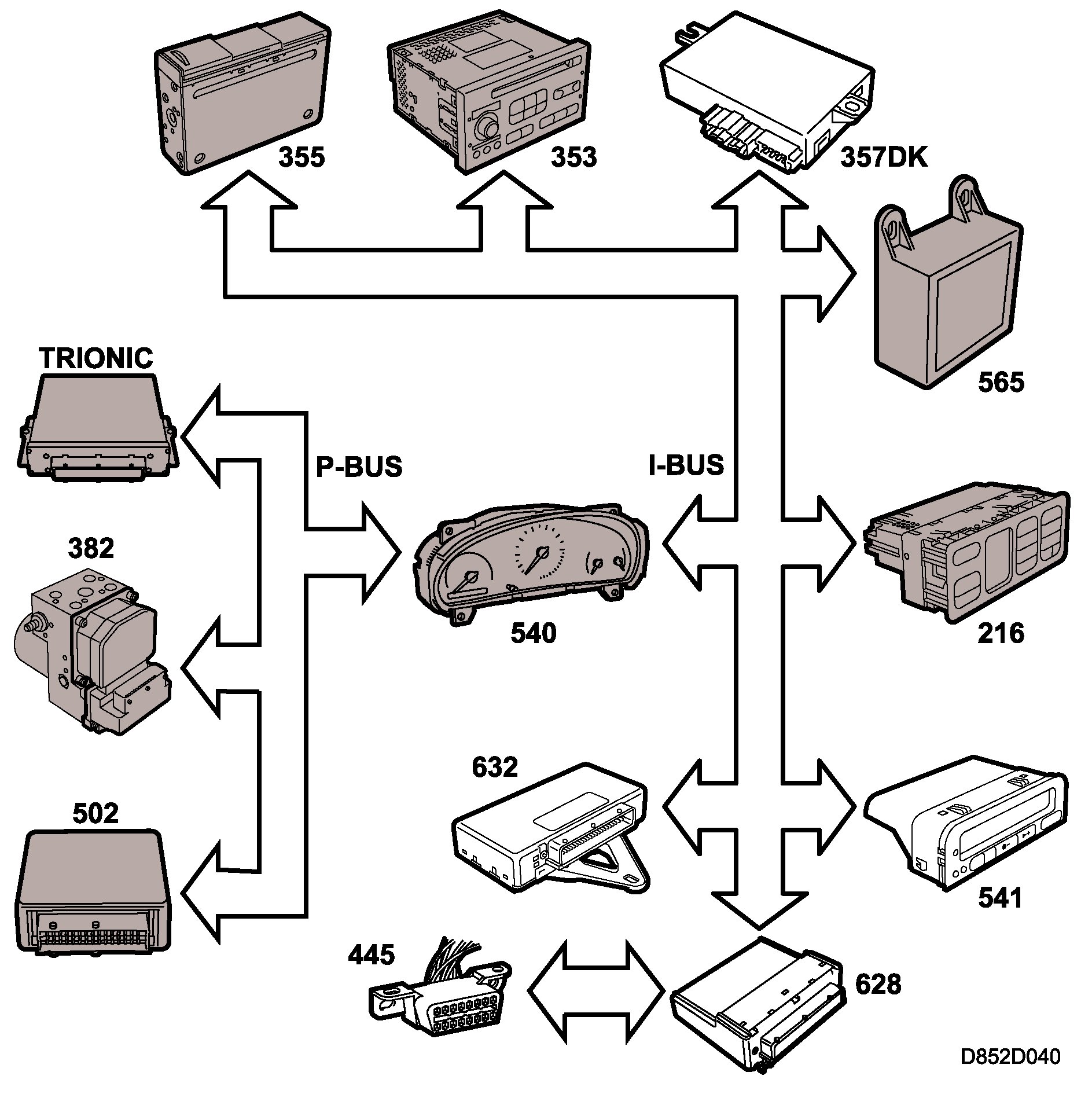

For further information on bus communication, see Information Bus.
