PSM Control Module Inputs

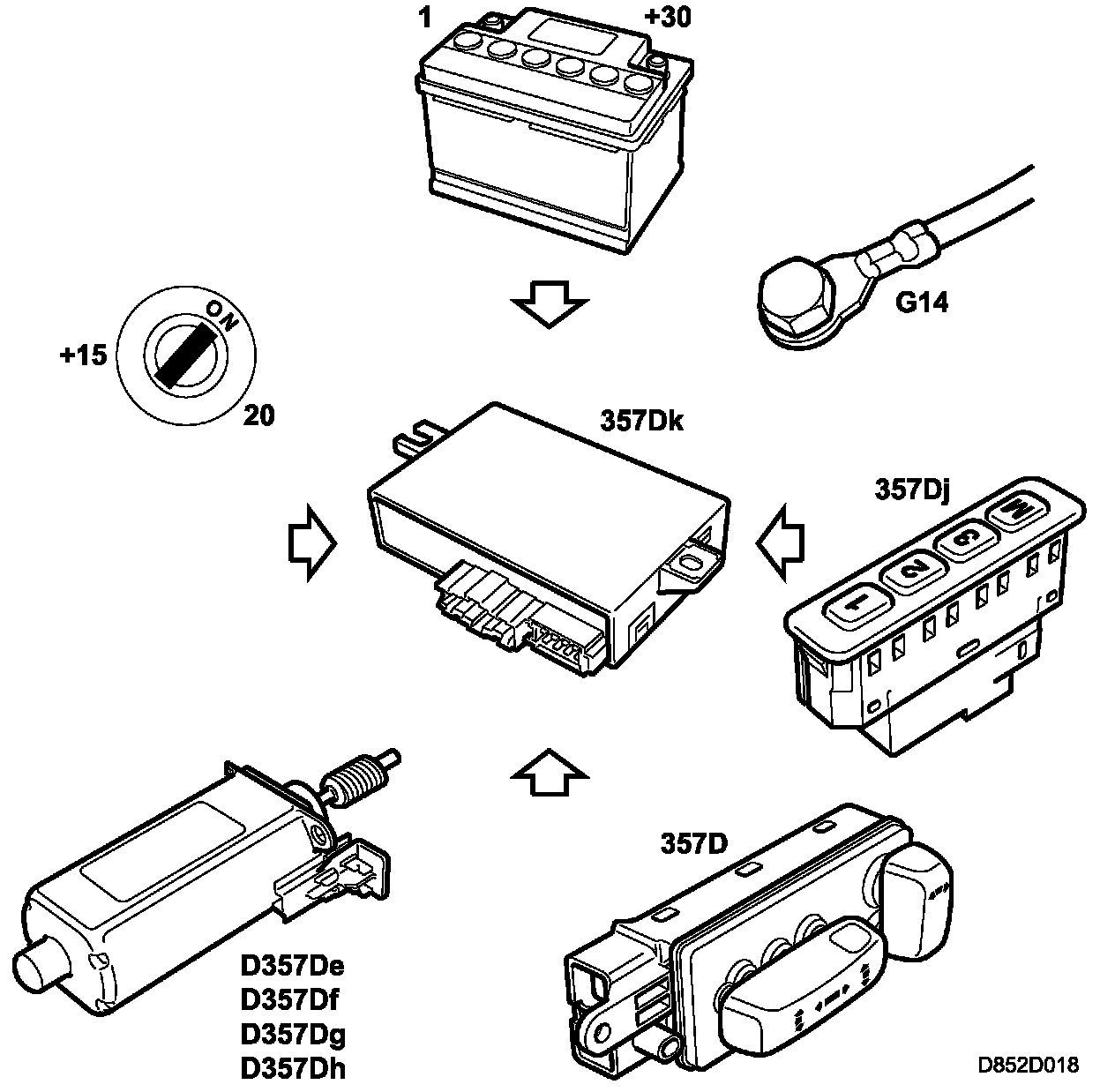

PSM Control Module Inputs







- Power supply +15 (20)
- Power supply +30 (1)
- Grounding (G14)
- Switch unit (367D), seat adjustment
- Position sensor (357De-Dh), seat adjustment
- Memory buttons (357Dj)
