Electrically Heated Front Seat

Electrically Heated Front Seat

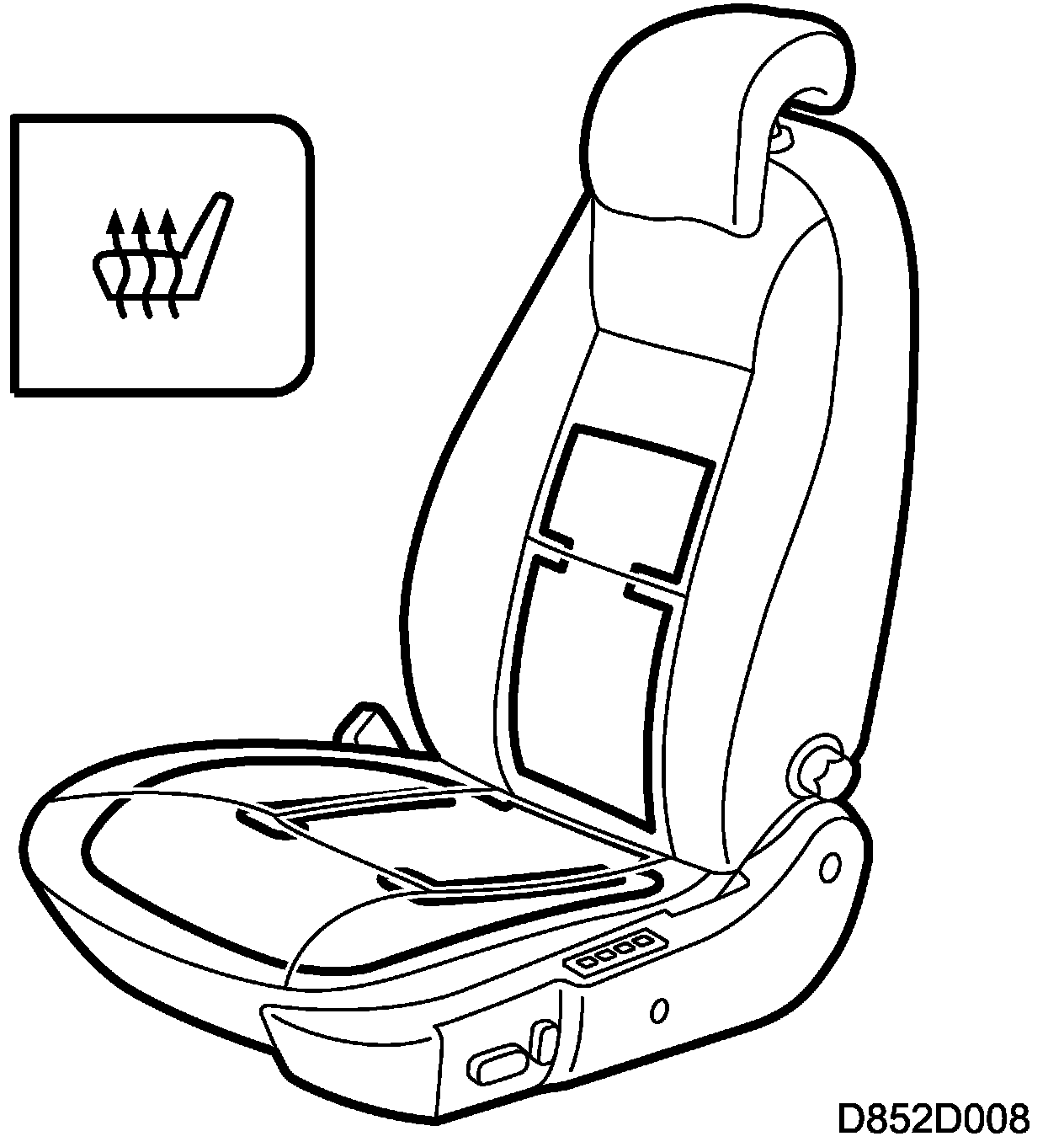

Both front seats have electric heating of the seat and backrest cushions. The heating can be activated when the ignition is in the ON position (+54).

Description of operation

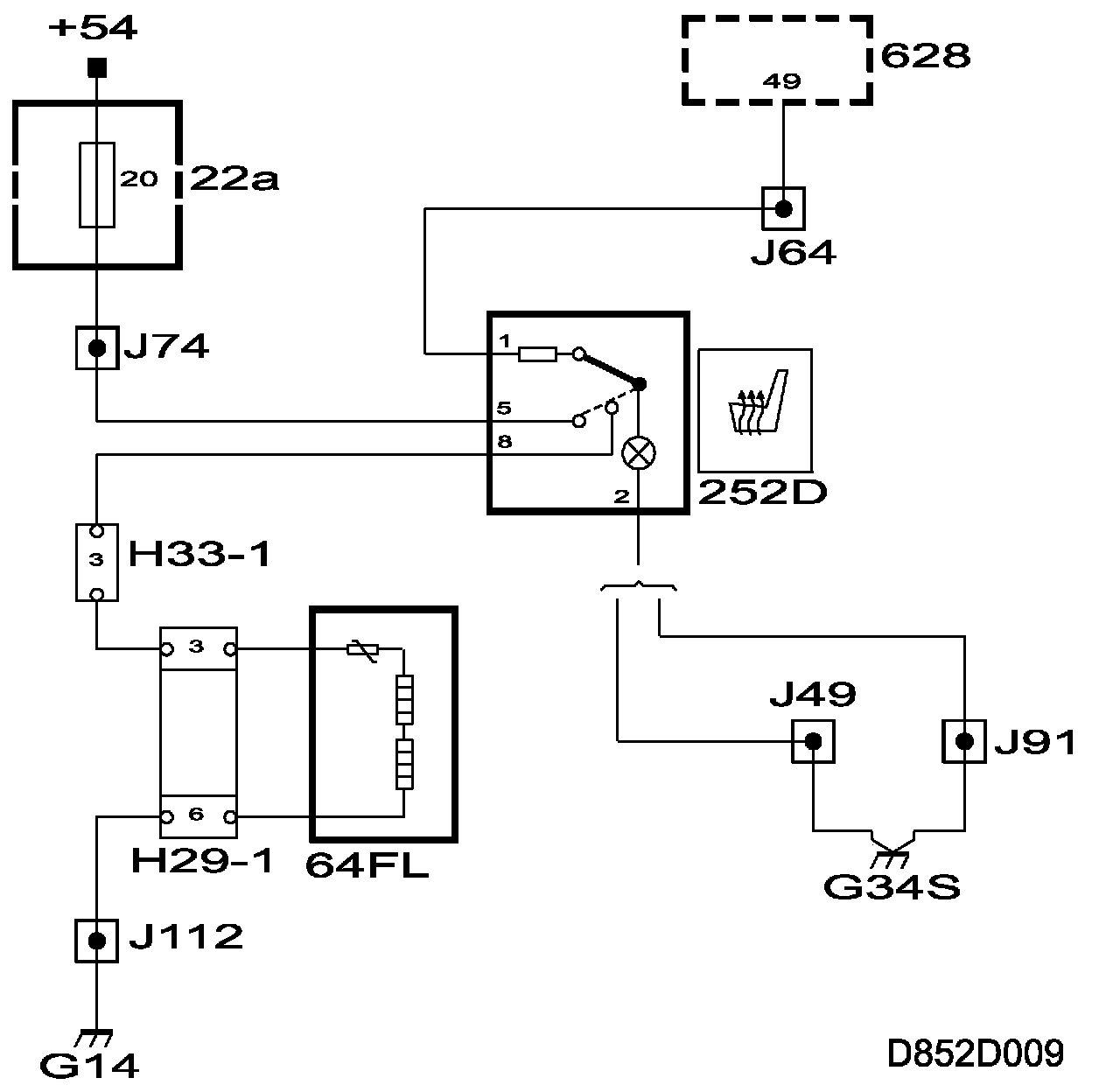

Heating pads 64FL and 64FR are powered from fuse 20. They are turned on and off with switches (252D and 252Prespectively). The temperature sensor comprises an NTC resistor, the resistance of which varies with the temperature in the heating pad.

Once the heating pads have reached their pre-determined temperature, they are turned off until the temperature has dropped to the lower limit.

Button and control lighting

The switch for the heated front seat is lit by a bulb powered from DICE (pin 49, rheostat level). This voltage supplies the buttons and controls, ashtray light and cigarette lighter.
