Noise From Side Trim

Noise From Side Trim

Fault symptoms
Creaking noise from side trim.

Cause: Contact occurring between the metal bracket and the plastic trim detail.

Procedure
1. Remove Rear side trim, CV

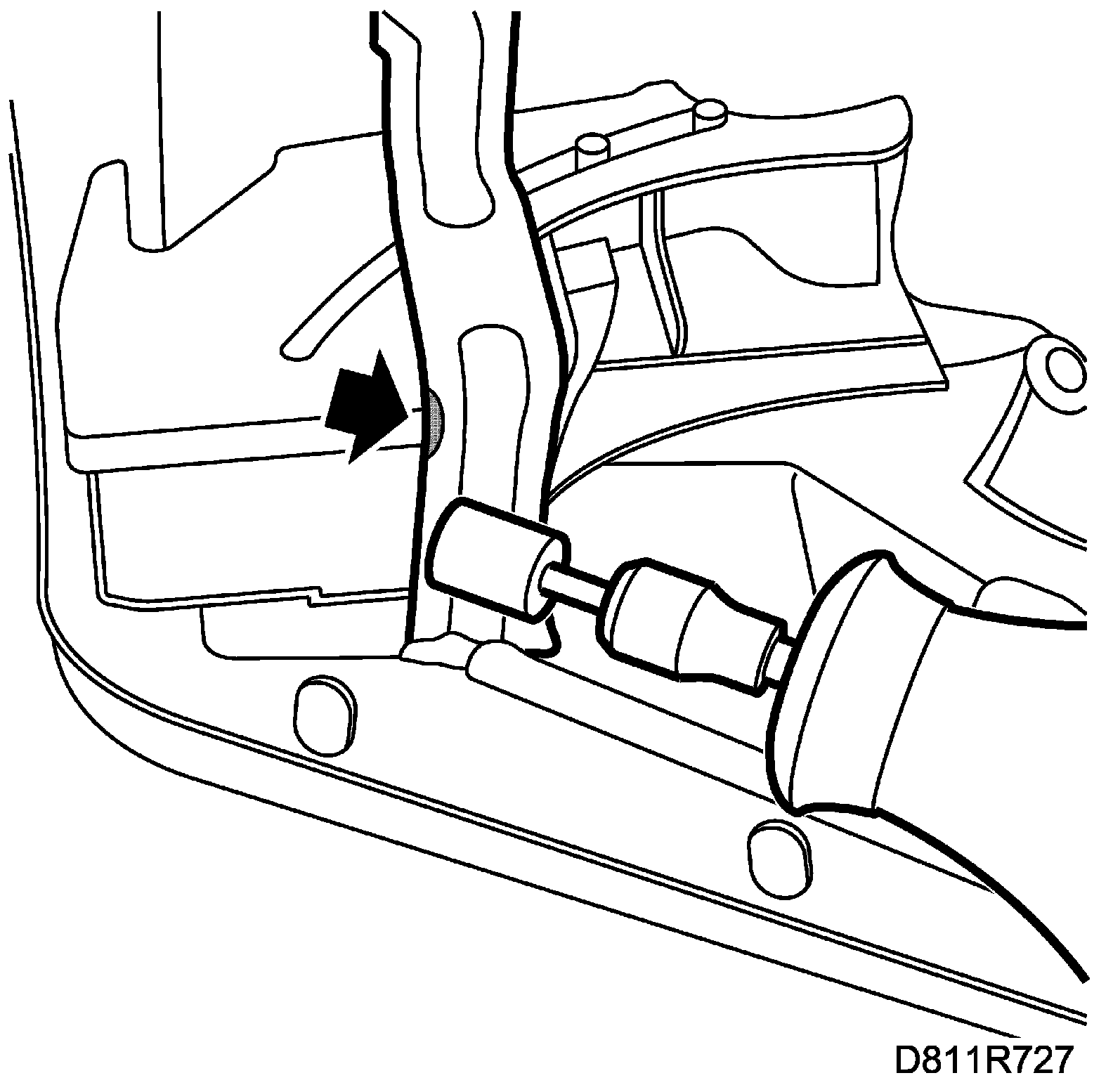

2. Grind the metal bracket approx. 2 mm as shown in the illustration.







3. Fit the rear side trim, CV

Fault diagnosis procedure is not available.
